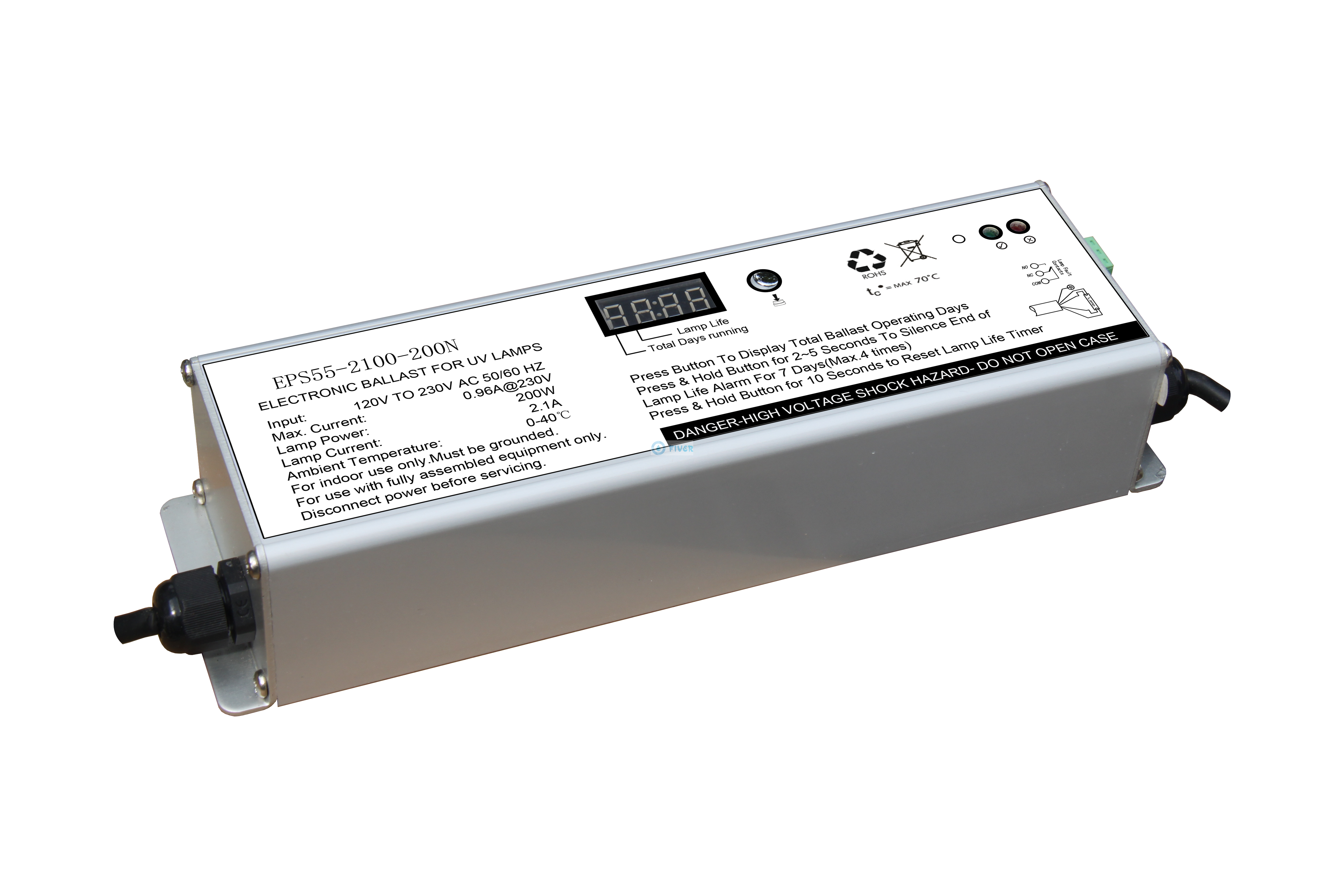

200W UV Power Supply

Features:
Pre-heat Start
Constant power design
Timer to show lamp and ballasts life
LED indicator(green and red light)
Under-voltage protection function
CE UL List Products
Special design for UV water sterilizer
ON/OFF time up to 50,000 times

Load Lamp:
GPHHA357T6 GPHHA843T6,
GPHHA1000T6,NNI200/107XL

INQUIRY

Product Details

Product Tags

Technical Parameter:

Input Voltage	99-264V
Max. Input Power	222W
Max. Input Current	0.96A@230V
Power per Lamp	200W
Lamp Current	1.94-2.16A
Operating Frequency	40-70KHz
Efficiency	≥92%
Start Way	Preheat Start
Power Factor	≥0.98
Total Harmonic Distortion	＜15%
Crest Factor	＜1.7
Ambient Temperature	－15-40℃
Maximum Case Temperature	70℃
The Authentication Meet	CE UL
1: Above is standard features. 2: OEM service is available.

Wiring Diagram:

wiring diagram.jpg

Advangtage of UV Lamp Ballast:

30% Less Energy Use Than Traditional Magnetic Ballasts
Constant UV Output Eliminates Buck/Boost Transformer
Draws 25% Less Current Than Magnetic Ballasts
Extended Lamp Life Reduces Maintenance Costs
Low Radiant Heat Reduces Air Conditioning Costs
Lighter Weight Ballasts Than Magnetic Ballasts
Dimming Fuction From 30% to 100%

How Does UV Radiation Affect the Growth of Viruses?

A virus’s exposure to radiation is believed to subdue cell-mediated immunity, which may affect the course of a viral infection. As previously mentioned, UV-C possesses the ability to critically destroy a virus’s molecular bonds, inhibiting the virus from multiplying and becoming a threat to humans. Sunlight, particularly UV radiation, is the main natural virucide that exists in our environment. UV radiation destroys viruses by chemically changing their genetic makeup. The most efficient wavelength to bring about inactivation is 260nm. The nucleic acids within viruses can be harmed by UV-A and UV-B radiation, however, they are not as effective and potent as UV-C.
