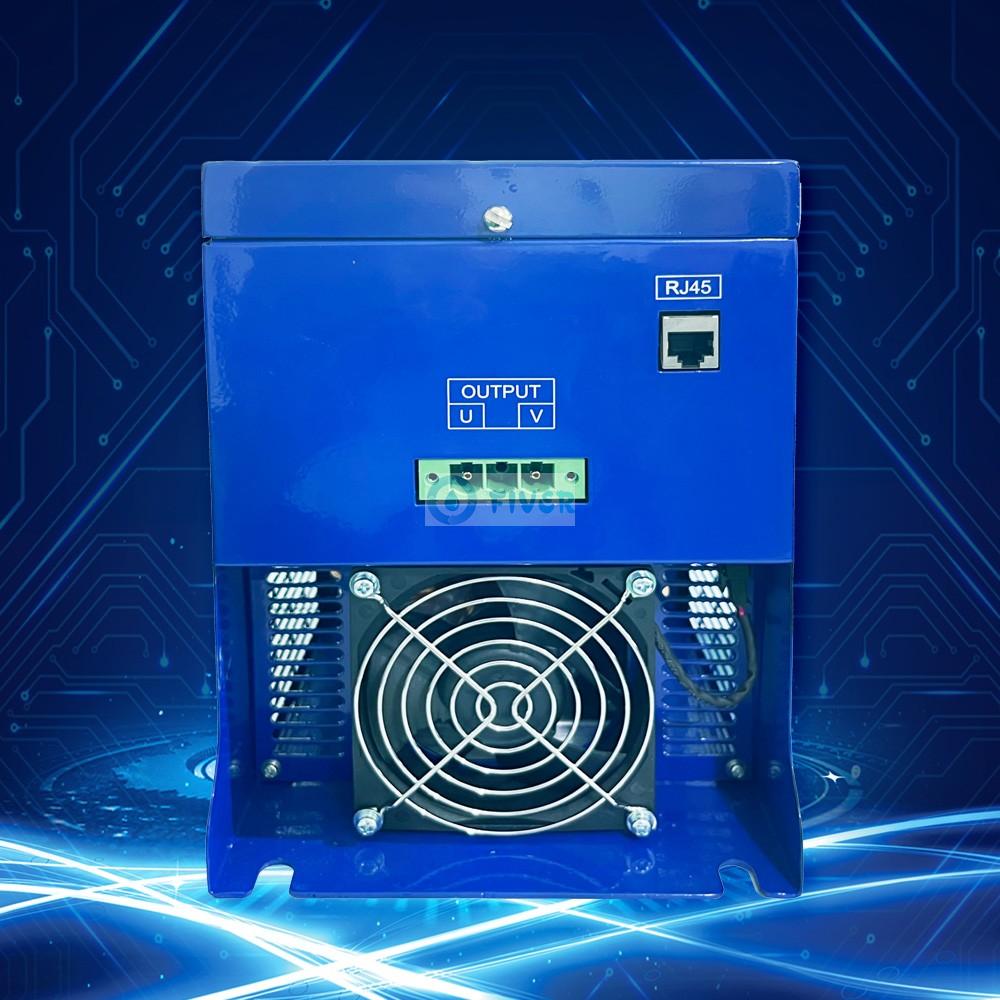

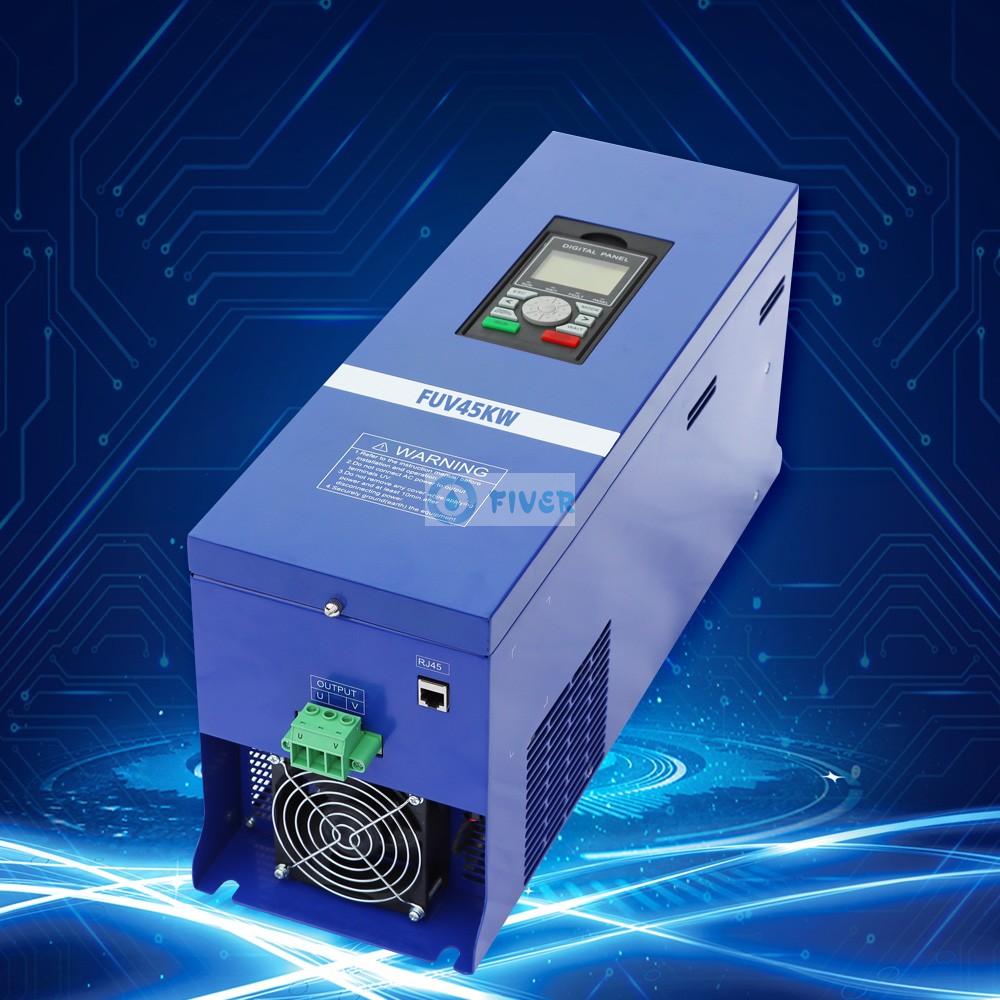

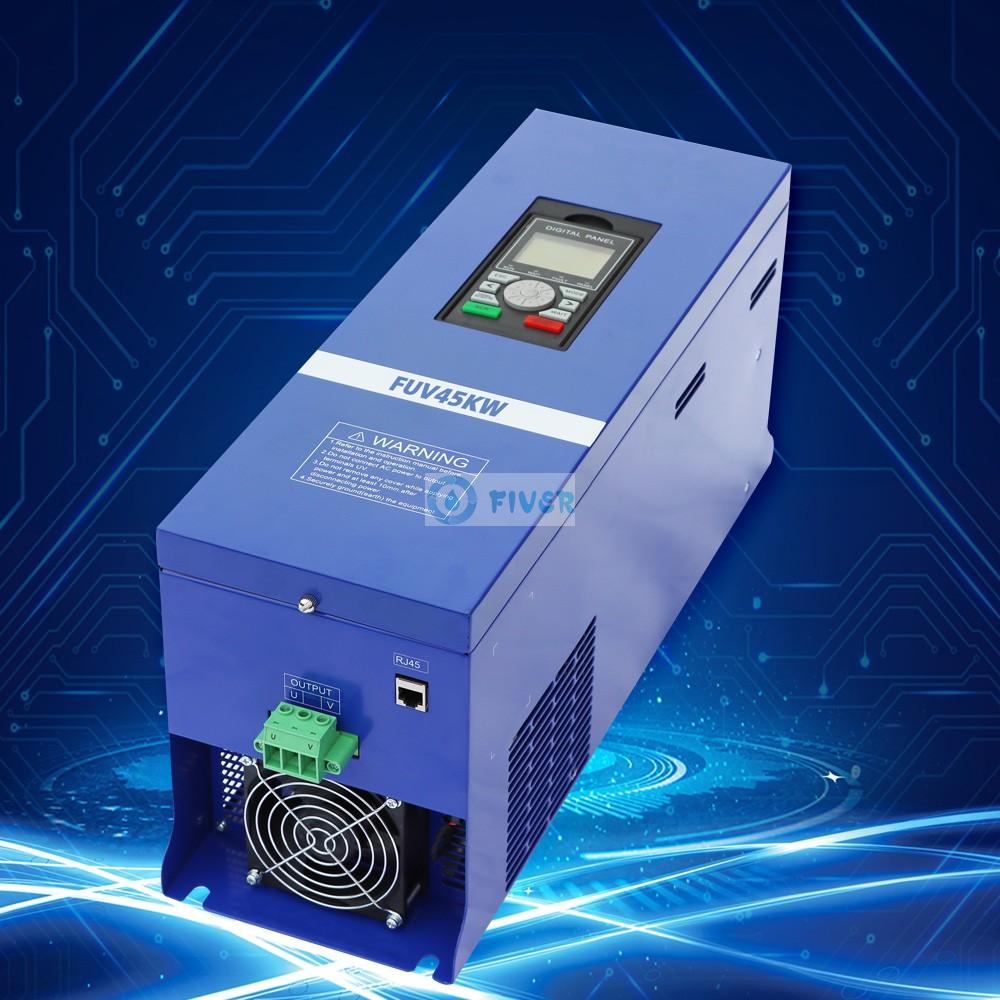

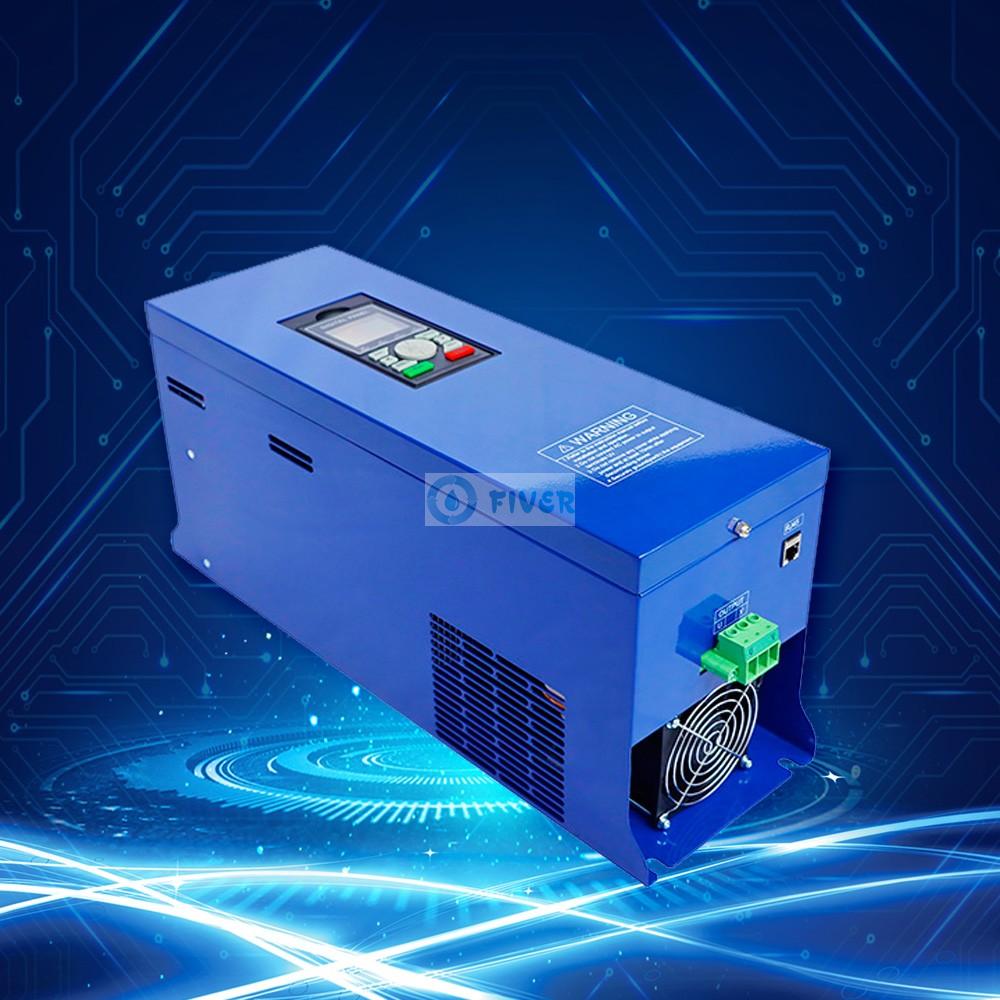

30KW Mercury and Halogen Lamp UV Controller

1.	RS485 Communication Interface, Support Modbus RTU
2.	No Extra Cooler Below 8KW, Can Save a lot Installation Space
3.	Dimmable Range from 10% to 100%, Efficiency UP To 95%
4.	50% Energy Conservation than Magnetic Ballast
5.	Automatic Checking and Matching all Kinds of MP Lamps
6.	More Than Twenty Kinds of Protect Function
7.	Automatic Controlling Fan Delivery to Keep Good Temperature of Lamp
8.     Voltage is 380V and lamp power is 30KW

INQUIRY down load to pdf

Product Details

Product Tags

30KW Mercury and Halogen Lamp UV Controller:

Features:

Constant output independent of mains voltage fluctuation;

The dynamic response speed is fast, from standby to full power output time only 500ms；

Stepless and fast adjustment of the UV lamp power depending on the speed of the conveyor

The independent air duct design truly isolates the components and pollutants to meet the long-term operation of the power supply in harsh environments；

Ventilation speed change as per lamp power change

Standard RS485 communication interface and support Mod bus RTU protocol；

Application:
