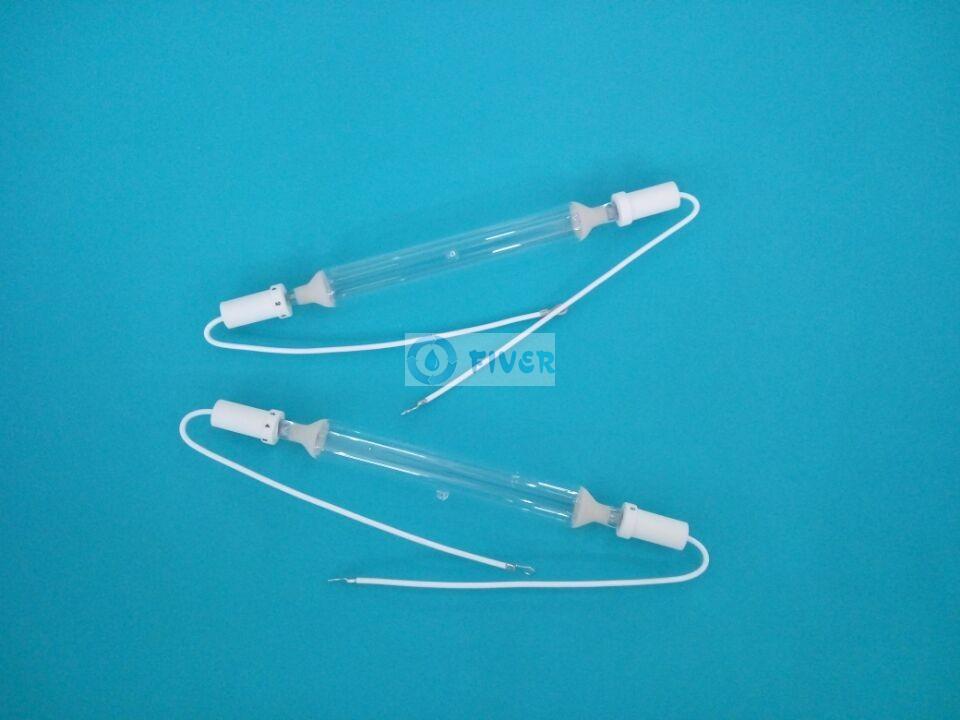

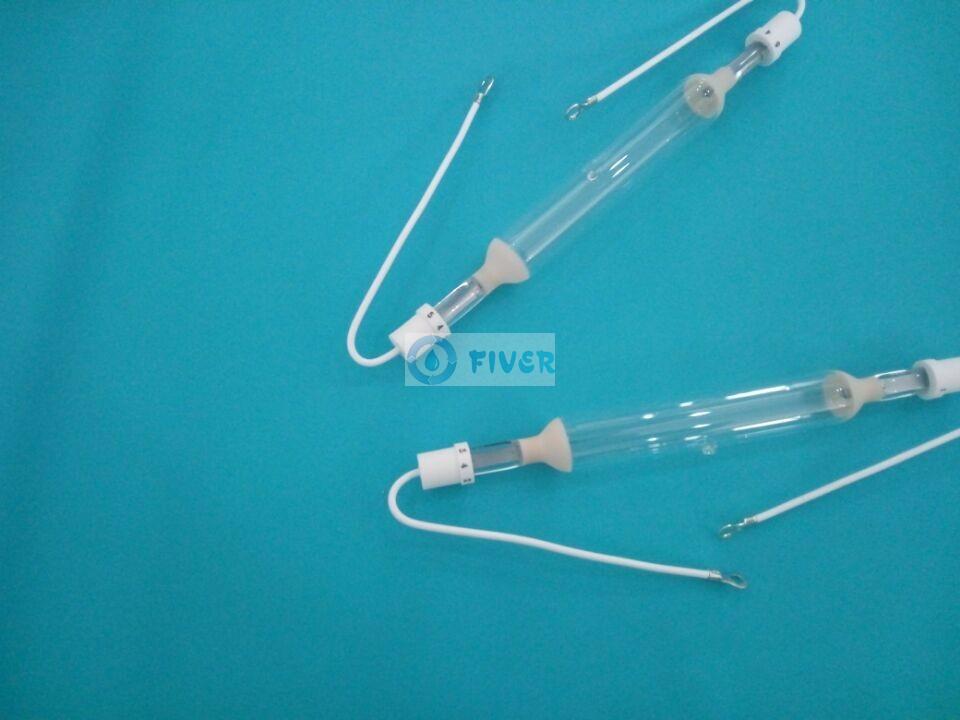

1KW Medium Pressure Mercury Vapor Lamp

1. Lamps are approved by CE and RoHS.
2. More than 30 years experience in production and application of UV lamps.
3. Implement strict quality system according to ISO9001.
4. All lamps are tested one by one before delivery out.
5. Very good properties at small size
6. Offer free samples for your evaluation.
7. Fast delivery time, from 3-25 working days,
8. Dependable after sales service
9. ODM and OEM service.
10. 7*24service, any of your questions will be replied within 12 hou

Product Details

Product Tags

1KW Medium Pressure Mercury Vapor Lamp

Technical Parameter:


Working Voltage

220V

Lamp Power

1KW

Lamp Current

8.5A

Total Length

230mm

ARC Length

125mm

 Warranty Time

1000 Hours

Connection

Optional

1: Above is standard features. 2: OEM service is available.

What is Medium-pressure UV Lamps

Medium-pressure lamps have a polychromatic output spectrum and operate at roughly 800°C - 900°C. With an average of 10x the power density per unit arc length, they have significantly higher power compared to amalgam low-pressure lamps.

UV medium-pressure lamps feature a broad, pronounced line spectrum in the ultraviolet and visible range (200 nm to 600 nm) and a high power density of about 100 W/cm².

They are suitable for UV disinfection, UV oxidation, UV curing and photochemical processes.

Various additives can be used to adjust our UV medium-pressure lamps to your individual requirements.

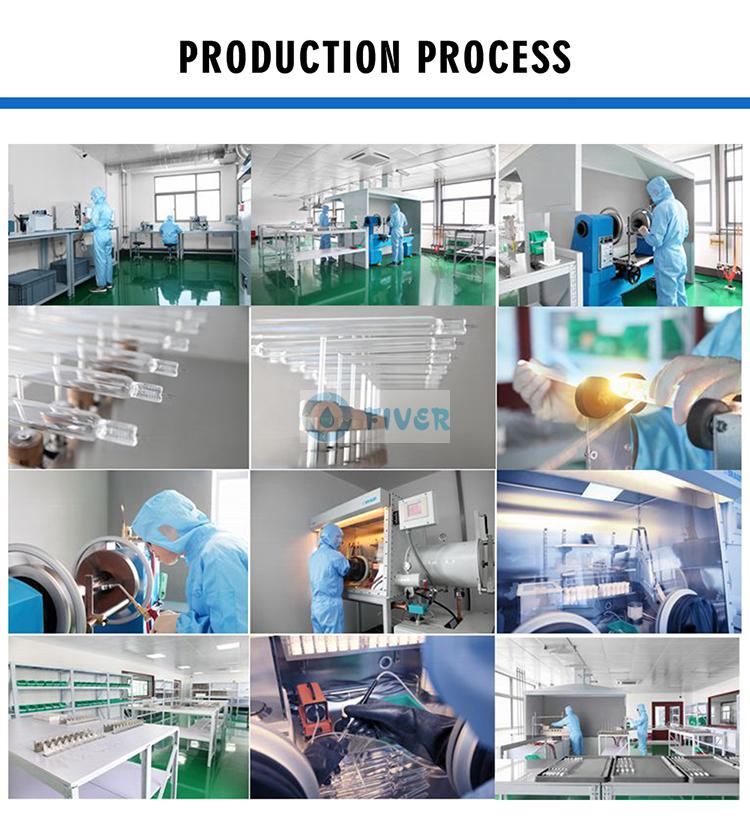

Our Factory of Medium Pressure UV Lamps:
