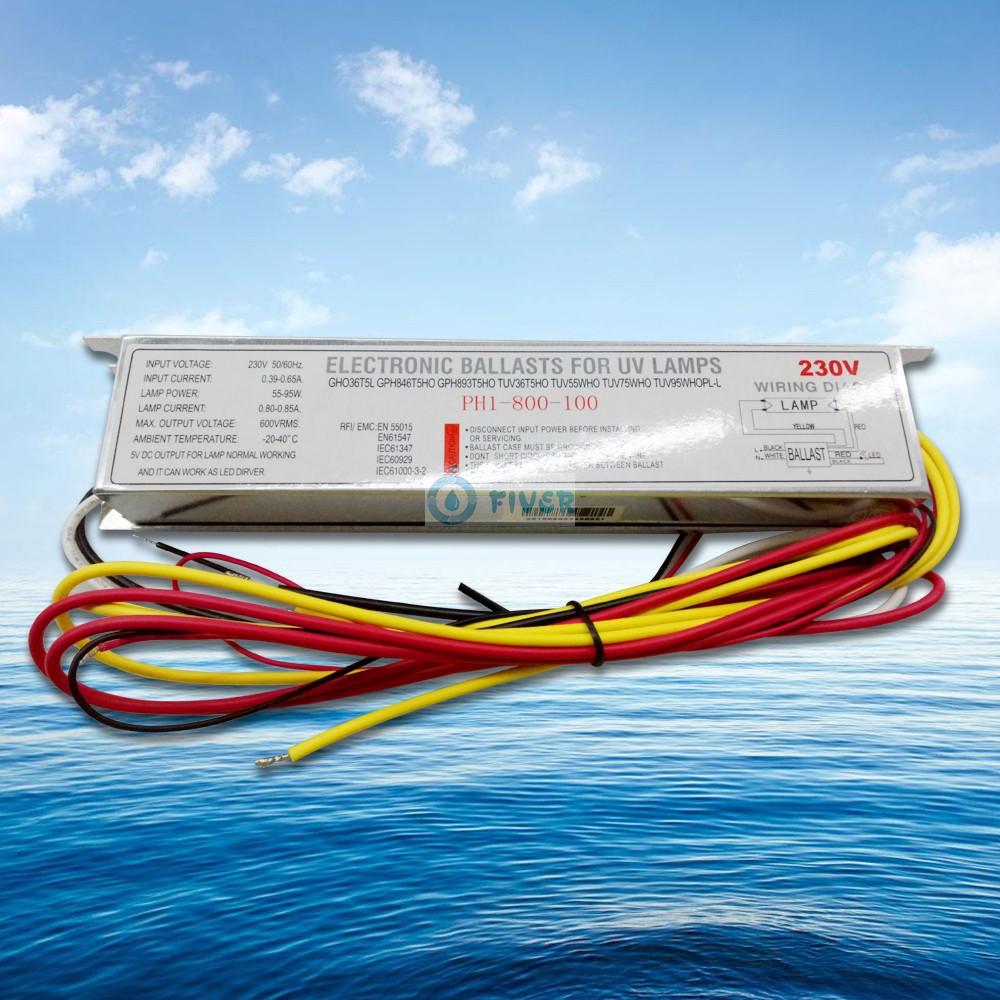

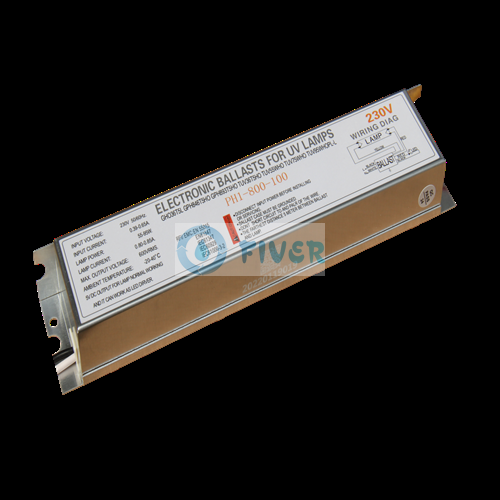

100W High Output UV Tube Ballast

Features:
Preheat Start
Constant power design
CE Rohs List Products
0-5V output and dry contact Function
ON/OFF time up to 50,000 times

Load Lamp:
GPH893T5HO,GPH846T5HO,GHO36T5
TUV95WHOPL-L,TUV75WHO,TUV55WHO,
TUV36T5HO,TUV60WHO,GPH436T5HO

Product Details

Product Tags

100W High Output UV Tube Ballast

Technical Parameter:


Input Voltage

198-264V

Max. Input   Power

100W

Max. Input   Current

0.8A@230V

Power per Lamp

100W UV Lamp

Lamp Current

0.75-0.85A

Operating   Frequency

40-70KHz

Efficiency

 ≥85%

Start Way

Preheat Start

Power Factor

≥0.98

Total Harmonic   Distortion

15%

Crest Factor

1.7

Ambient   Temperature

15-40

Maximum Case   Temperature

70

The   Authentication Meet

CE UL

1: Above is   standard features. 2: OEM service is available.

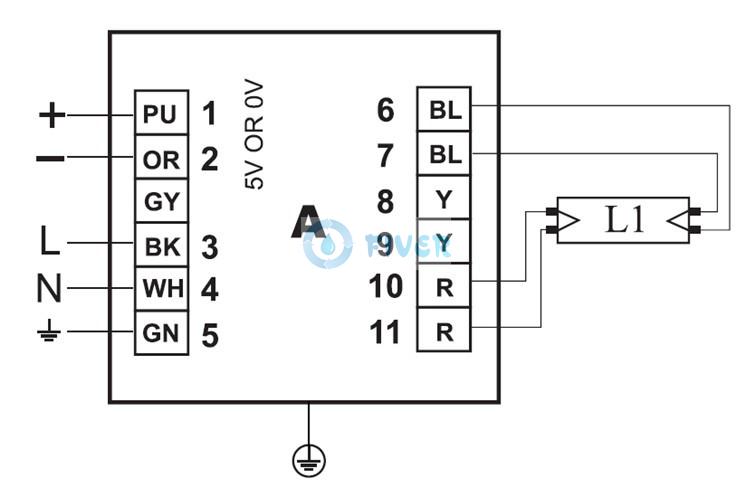

Wiring Diagram:PH2-425-2-40U接线图A.jpg

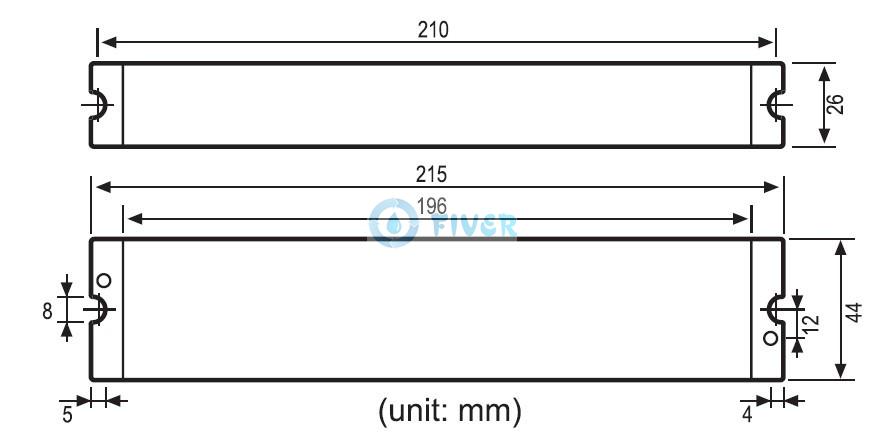

Size: 215x44x26mm

Advangtage of UV Bulb Ballast:

  • 30% Less Energy Use Than Traditional Magnetic Ballasts

  • Constant UV Output Eliminates Buck/Boost Transformer

  • Draws 25% Less Current Than Magnetic Ballasts

  • Extended Lamp Life Reduces Maintenance Costs

  • Low Radiant Heat Reduces Air Conditioning Costs

  • Lighter Weight Ballasts Than Magnetic Ballasts

  • Dimming Fuction From 30% to 100%
