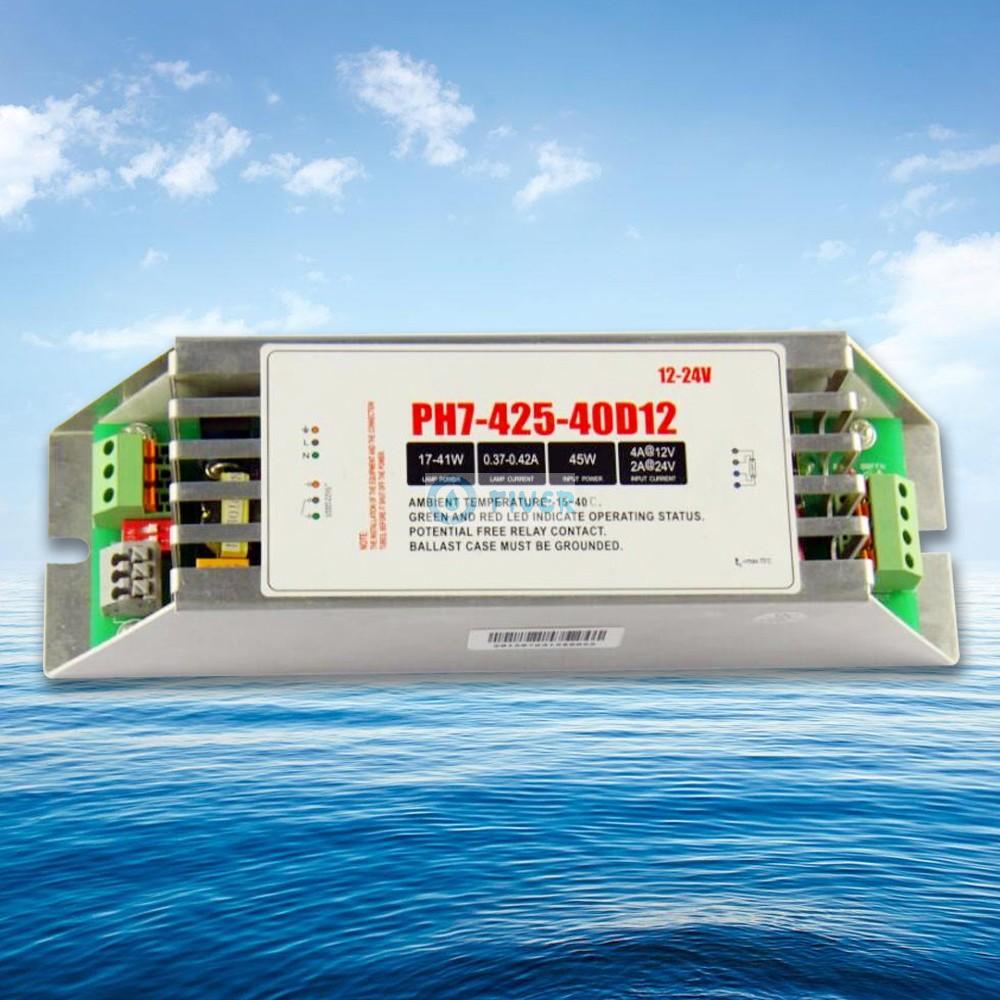

12V DC Power Supply UV Electronic Ballast

Features:
Pre-heat Start
Constant power design

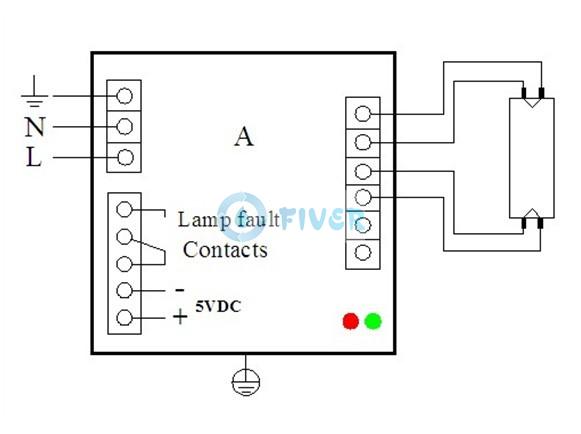

Dry contacts and indicator
12V/24V double power supply design
Under-voltage protection function
Effectively protect life of battery

Load Lamp:
GPH843T5,GPH793T5,GPH436T5,G36T5,
TUV36T5,TUVPL-L36W,TUV36W

INQUIRY

Product Details

Product Tags

12V DC Power Supply UV Electronic Ballast

Technical Parameter:

Input Voltage	10.3-14.5
Max. Input Power	47W
Max. Input Current	3.92A@12V
Power per Lamp	10-45W
Lamp Current	0.39-0.42A
Operating Frequency	40-70KHz
Efficiency	≥85%
Start Way	Preheated Start
Power Factor	≥0.99
Total Harmonic Distortion	＜15%
Crest Factor	＜1.7
Ambient Temperature	－15-40℃
Maximum Case Temperature	70℃
The Authentication Meet	CE UL
1: Above is standard features. 2: OEM service is available.
