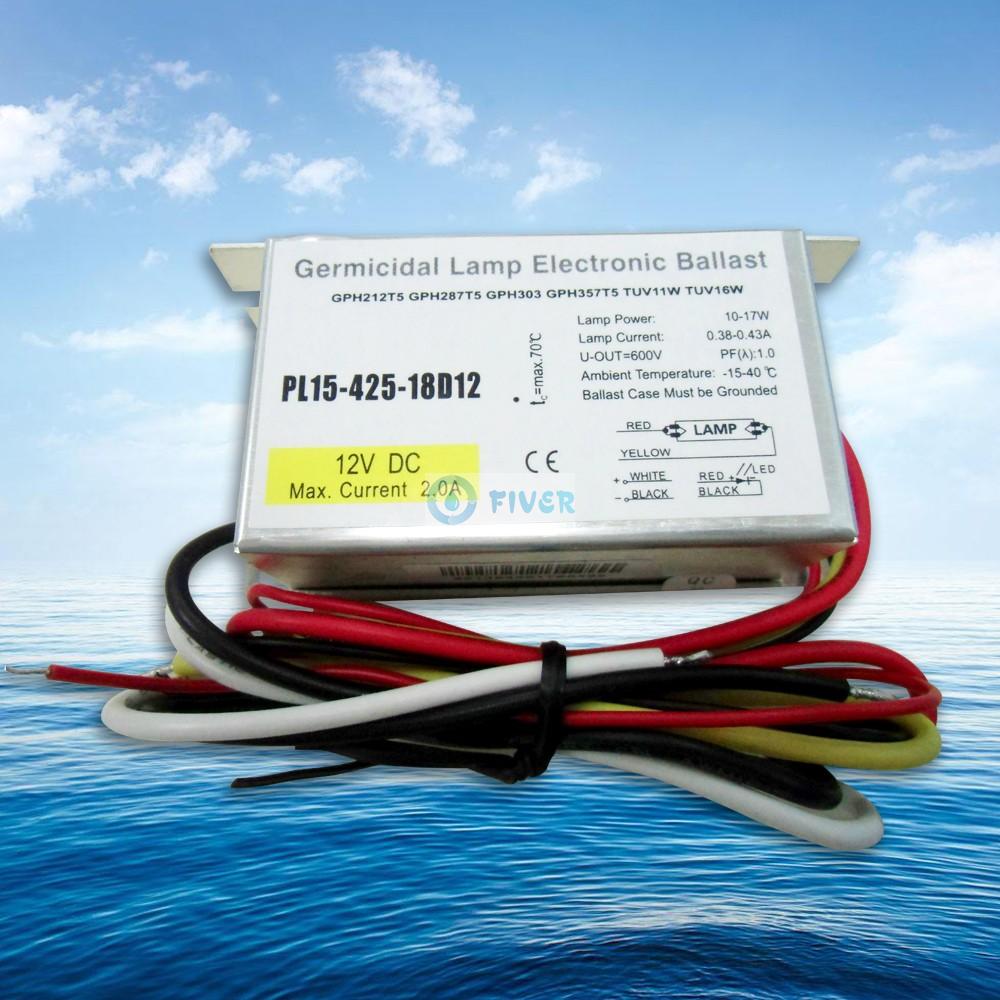

12V DC UVC Ballast For 10-17W UV Lamp

12V DC UVC Ballast For 10-17W UV Lamp
Features:
Instant Start
Constant power design
5V output function
LED indicator(green and red light)
Under-voltage protection function
Effectively protect life of battery

Load Lamp:
GPH150T5L, GPH212T5L,GPH287T5L
GPH303T5L,TUV11W, TUV16W,GPH357T5L

Product Details

Product Tags

12V DC UVC Ballast For 10-17W UV Lamp

Technical Parameter:


Input Voltage

10.8V-13.2V

Max. Input   Power

24W

Max. Input   Current

2.0A@12V

Power per Lamp

10-17W

Lamp Current

0.35-0.42A

Operating   Frequency

40-70KHz

Efficiency

 ≥85%

Start Way

Instant Start

Power Factor

≥0.99

Total Harmonic   Distortion

＜15%

Crest Factor

＜1.7

Ambient   Temperature

－15-40℃

Maximum Case   Temperature

70℃

The   Authentication Meet

CE UL

1: Above is   standard features. 2: OEM service is available.

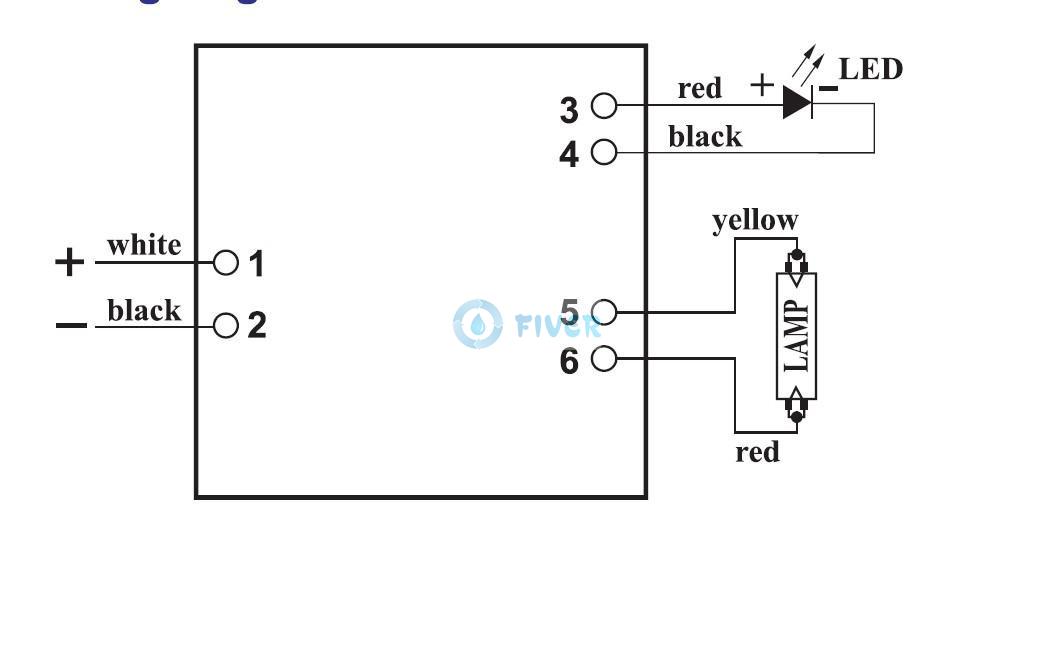

Wiring Diagram:

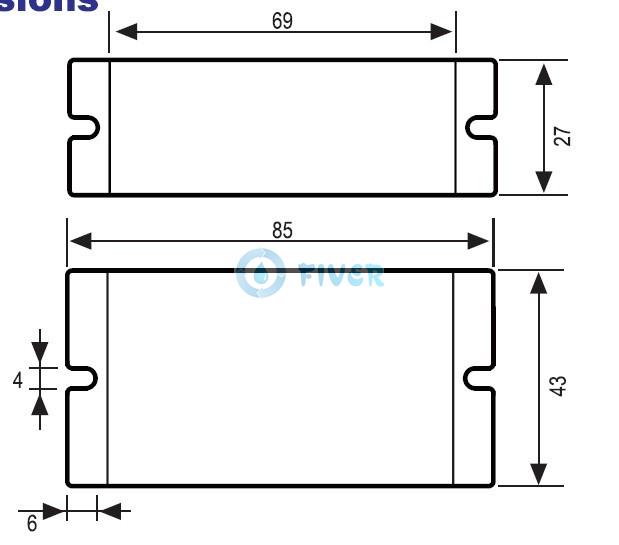

Dimension:



Size: 85x43x27mm

Advangtage of UV Bulb Ballast:

  • 30% Less Energy Use Than Traditional Magnetic Ballasts

  • Constant UV Output Eliminates Buck/Boost Transformer

  • Draws 25% Less Current Than Magnetic Ballasts

  • Extended Lamp Life Reduces Maintenance Costs

  • Low Radiant Heat Reduces Air Conditioning Costs

  • Lighter Weight Ballasts Than Magnetic Ballasts

  • Dimming Fuction From 30% to 100%
