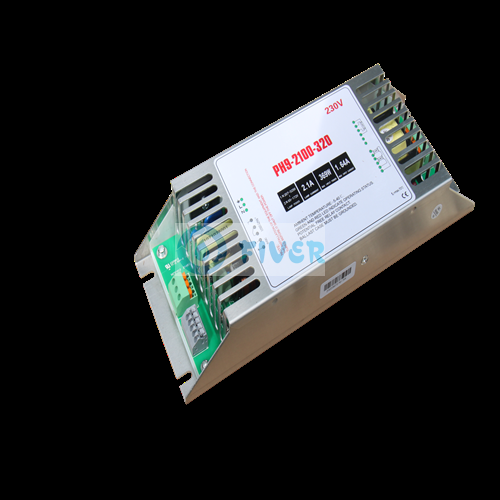

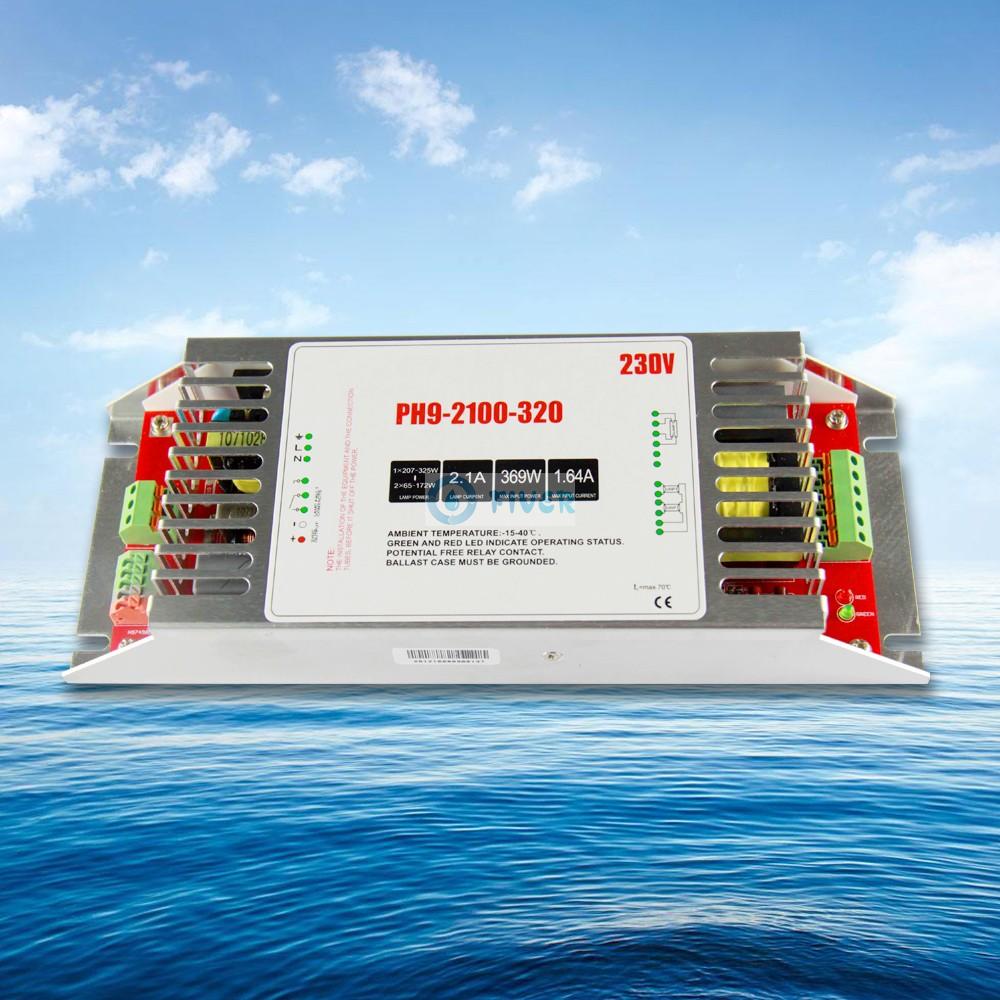

220V Electronic Ballasts for 320W UV Lamp
220V Electronic Ballasts for 320W UV Lamp
Technical Parameter:
Input Voltage | 198-264V |
Max. Input Power | 369W |
Max. Input Current | 1.64A@230V |
Power per Lamp | 320W UV Lamp |
Lamp Current | 2.0-2.2A |
Operating Frequency | 40-70KHz |
Efficiency | ≥85% |
Start Way | Preheat Start |
Power Factor | ≥0.98 |
Total Harmonic Distortion | ＜15% |
Crest Factor | ＜1.7 |
Ambient Temperature | －15-40℃ |
Maximum Case Temperature | 70℃ |
The Authentication Meet | CE UL |
1: Above is standard features. 2: OEM service is available. | |

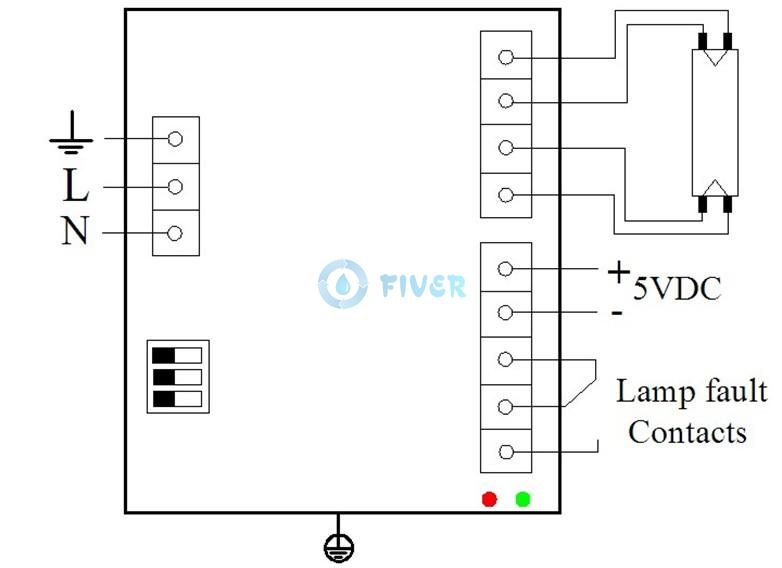

Wiring Diagram:

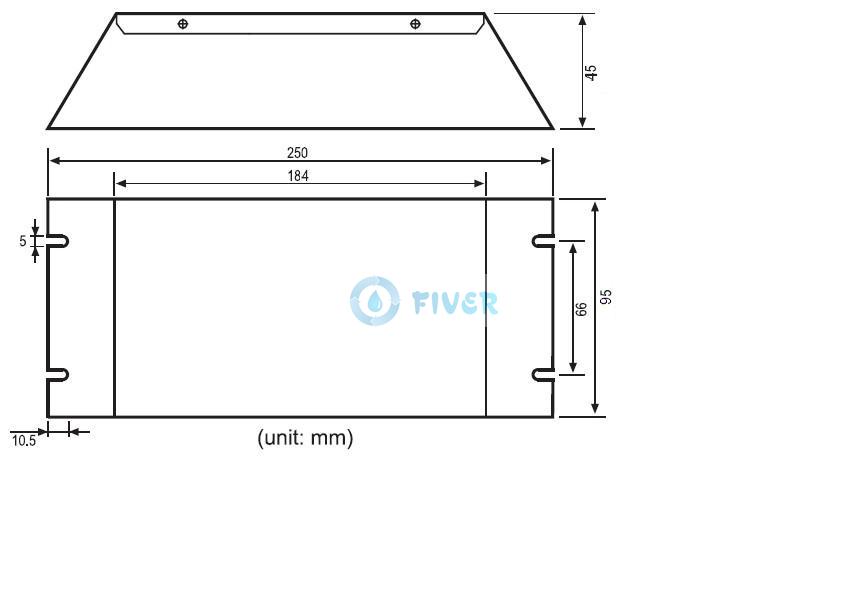

Dimension:
Size: 250x95x45mm
Advangtage of UV Lamp Ballast:
30% Less Energy Use Than Traditional Magnetic Ballasts
Constant UV Output Eliminates Buck/Boost Transformer
Draws 25% Less Current Than Magnetic Ballasts
Extended Lamp Life Reduces Maintenance Costs
Low Radiant Heat Reduces Air Conditioning Costs
Lighter Weight Ballasts Than Magnetic Ballasts
Dimming Fuction From 30% to 100%
Why choose us?
1. More Than 30 Years Experience on UV Ballast Products.
2. Exporting UV Light Ballast to Over 50 Countries
3. More Than 5,000 Customers Trust Our UV Products
4. Long Time Warranty of UV Ballasts from 2-8 Years
5. 24/7 Working Operation with Excellent After-sales Service
6. Low Repair Rate as Low as to 0.04%(30 Years Average )
7. OEM&ODM Service for UV Light Ballast with Low MOQ
8. CE UL ROHS Approval to Insure High Quality UV Ballast
