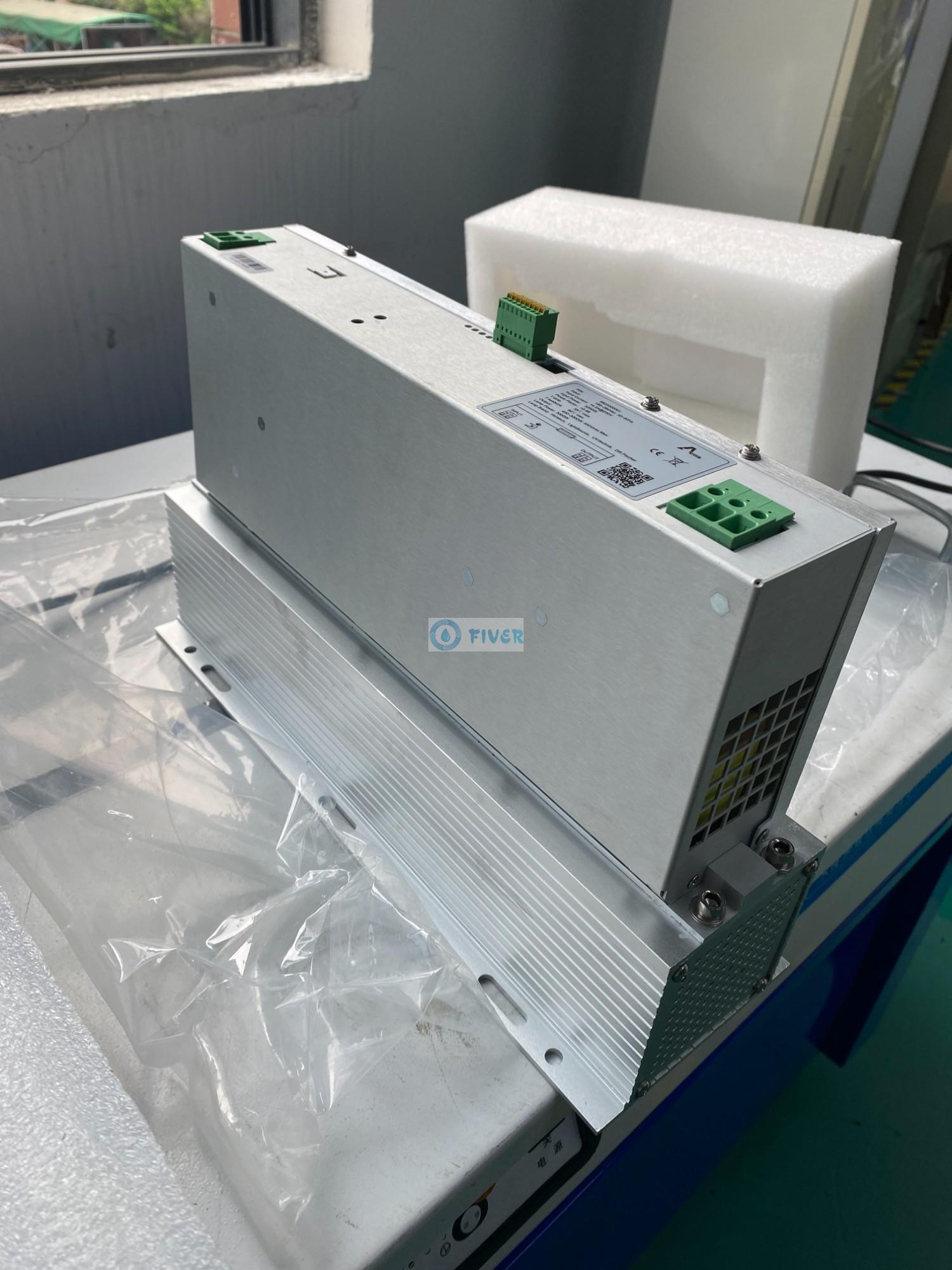

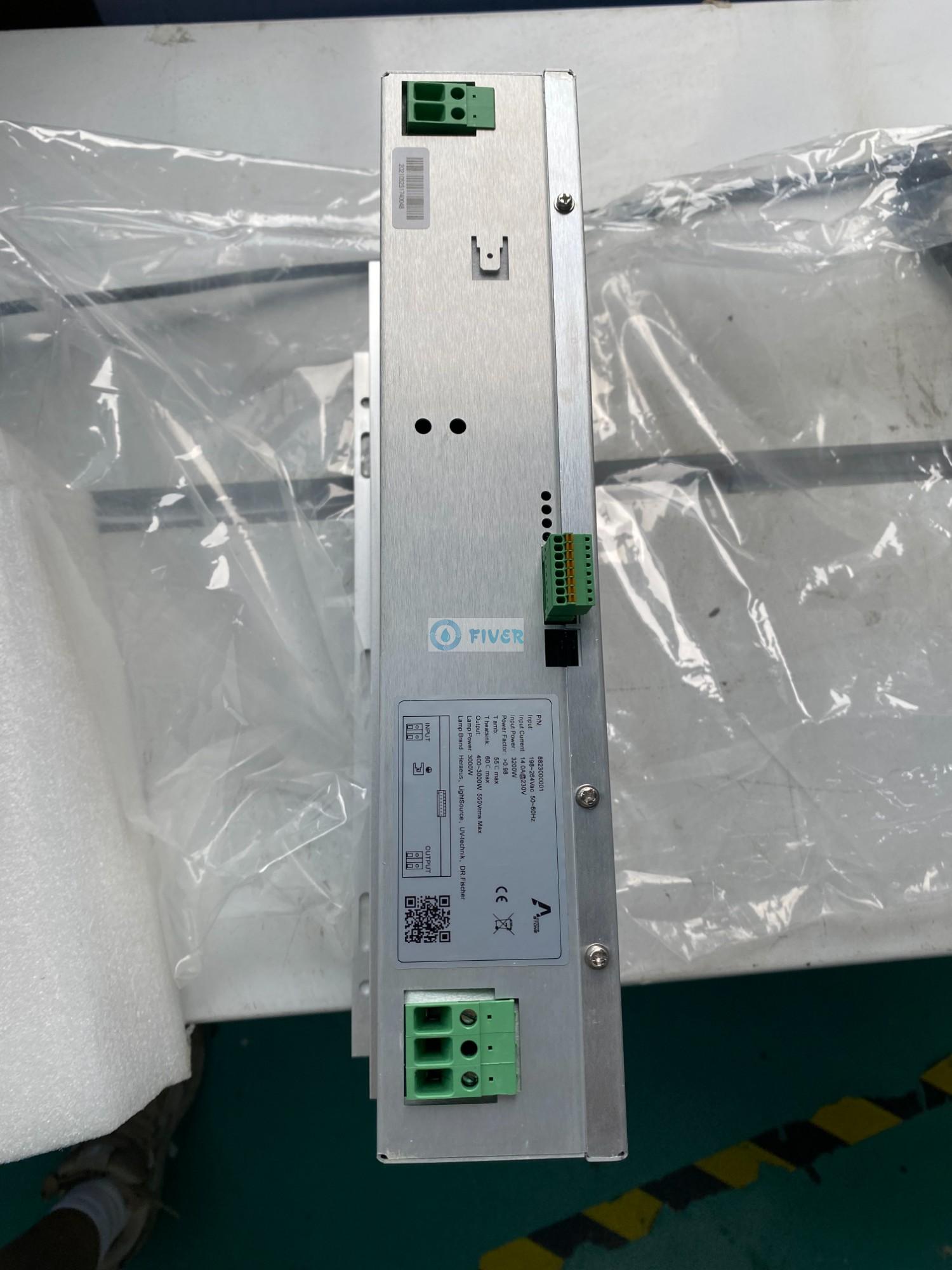

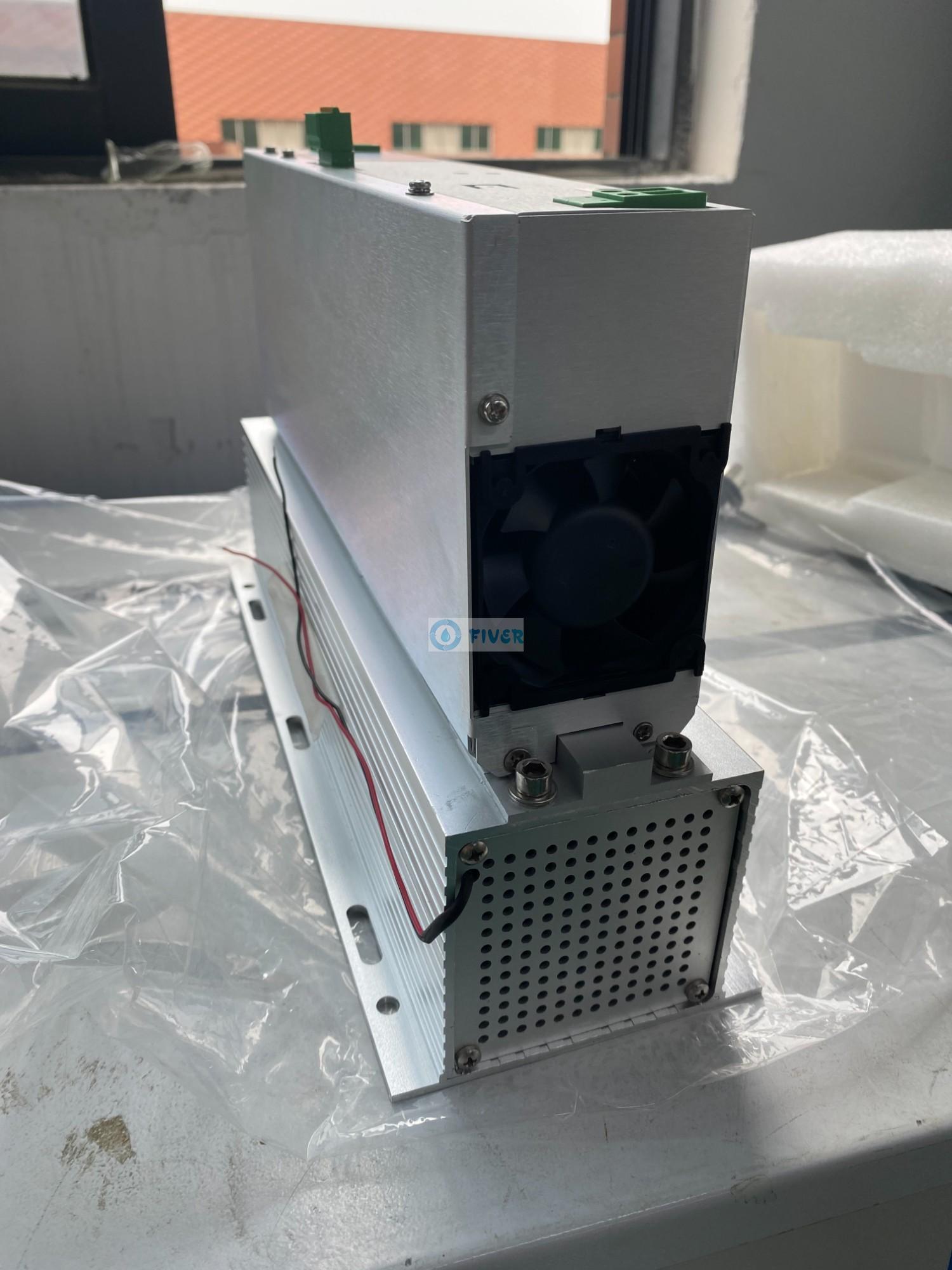

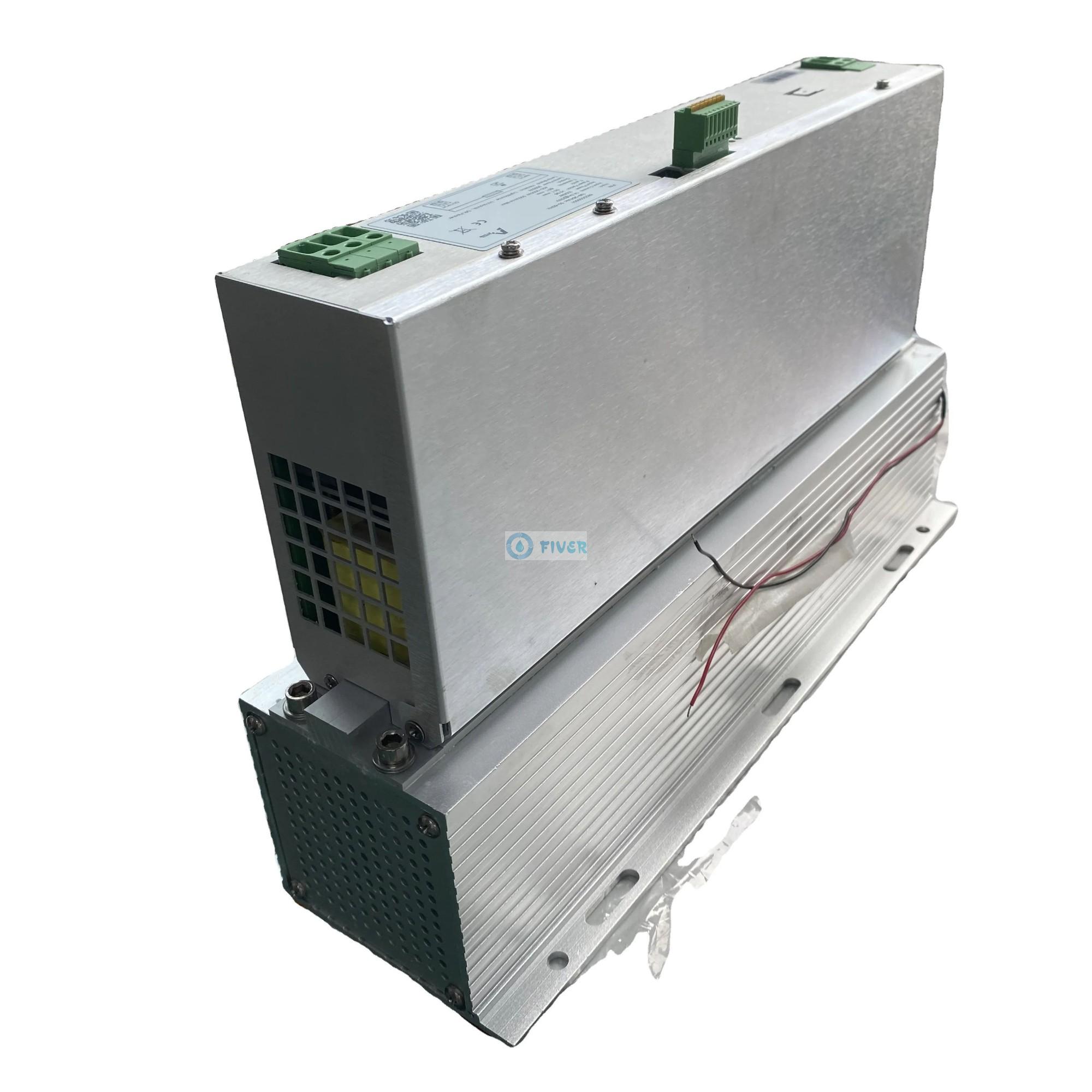

3000W NEDAP UV Lamp Driver 9985123 With Modbus Function

Features:
1.40% energy saving than magnetic ballast
2.Power factor can be up to 99%
3.Constant power output, can extend lamp life
4.Isolated transform output, more safe and reliable
5.Easy to install and easy to use
6.Can work at 220V,so do not need 380V Voltage
7.Can choose PWM,0-10V,modbus communication way
8.Special designed for UV water treatment machine.

Load Lamp:

2100W Medium Pressure UV Lamp
2850W Medium Pressure UV Lamp
3000W Medium Pressure UV Lamp

INQUIRY

Product Details

Product Tags

3000W NEDAP UV Lamp Driver 9985123 With Modbus Function:

This model can replace NEDAP UV Lamp Driver 9985123,size is the same,

and also have modbus function.

Technical Parameter:

Input Voltage	198-264V
Max. Input Power	3150W
Max. Input Current	13.9A@230V
Power per Lamp	Medium Pressure UV Lamp
Lamp Current	6.5-13.5A
Operating Frequency	40-70KHz
Efficiency	≥92%
Start Way	Instant Start
Power Factor	≥0.99
Total Harmonic Distortion	＜15%
Crest Factor	＜1.7
Ambient Temperature	－15-40℃
Maximum Case Temperature	70℃
The Authentication Meet	CE UL
1: Above is standard features. 2: OEM service is available.

Which medium-pressure UV lamps are compatible with FIVER UV Ballast?

FIVER’s medium pressure uv ballasts are designed to work with all major manufacturers of medium pressure UV lamps, including Heraeus, Hanovia, Alpha cure, Lightsource, Lightech,PhilipsLSI, Atlantic Ultraviolet, and Signify / dr fischer. (To work effectively, the lamp power and current must match our medium pressure ballast.)
