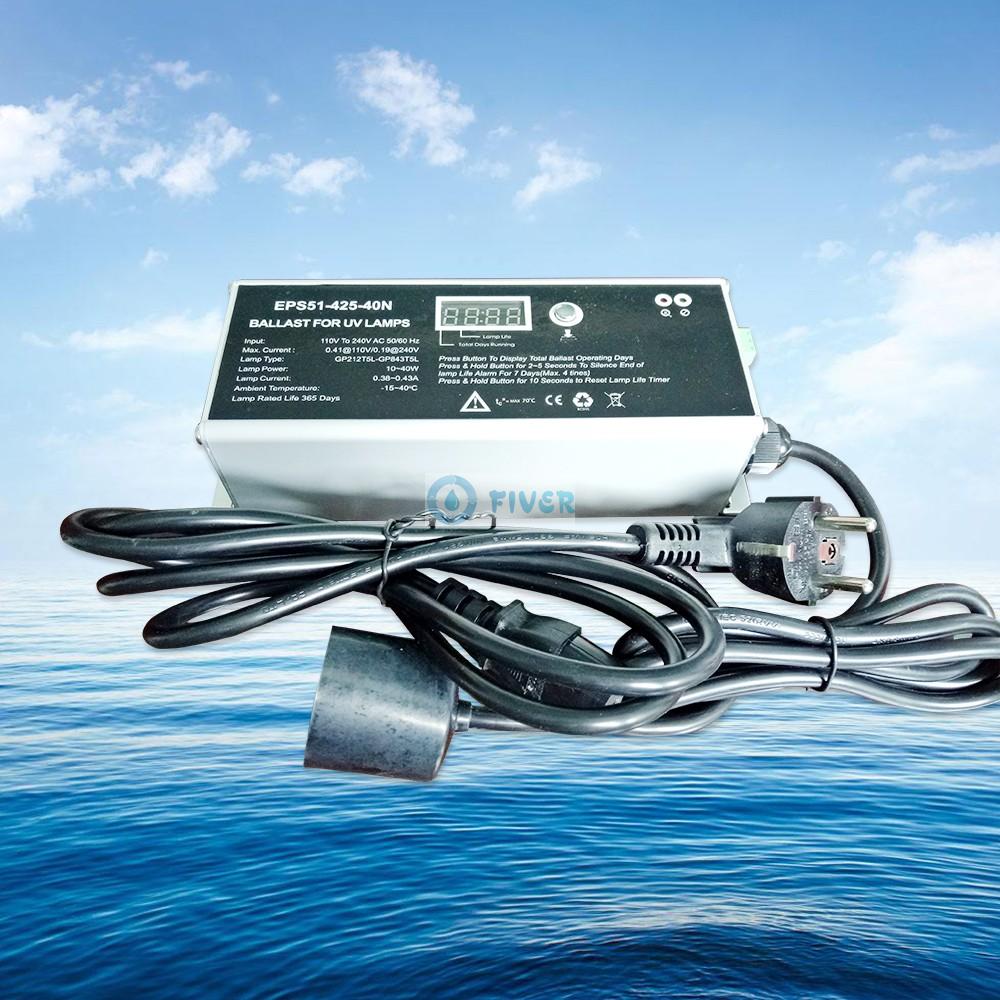

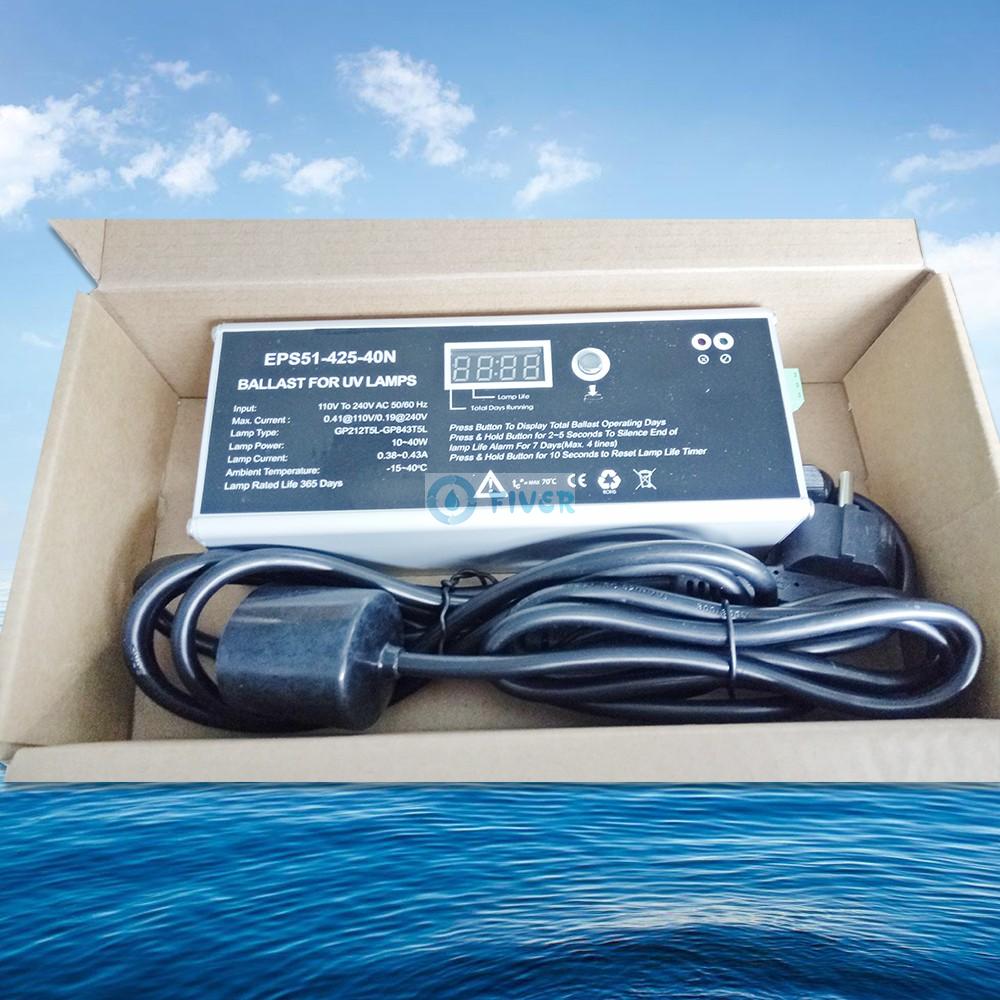

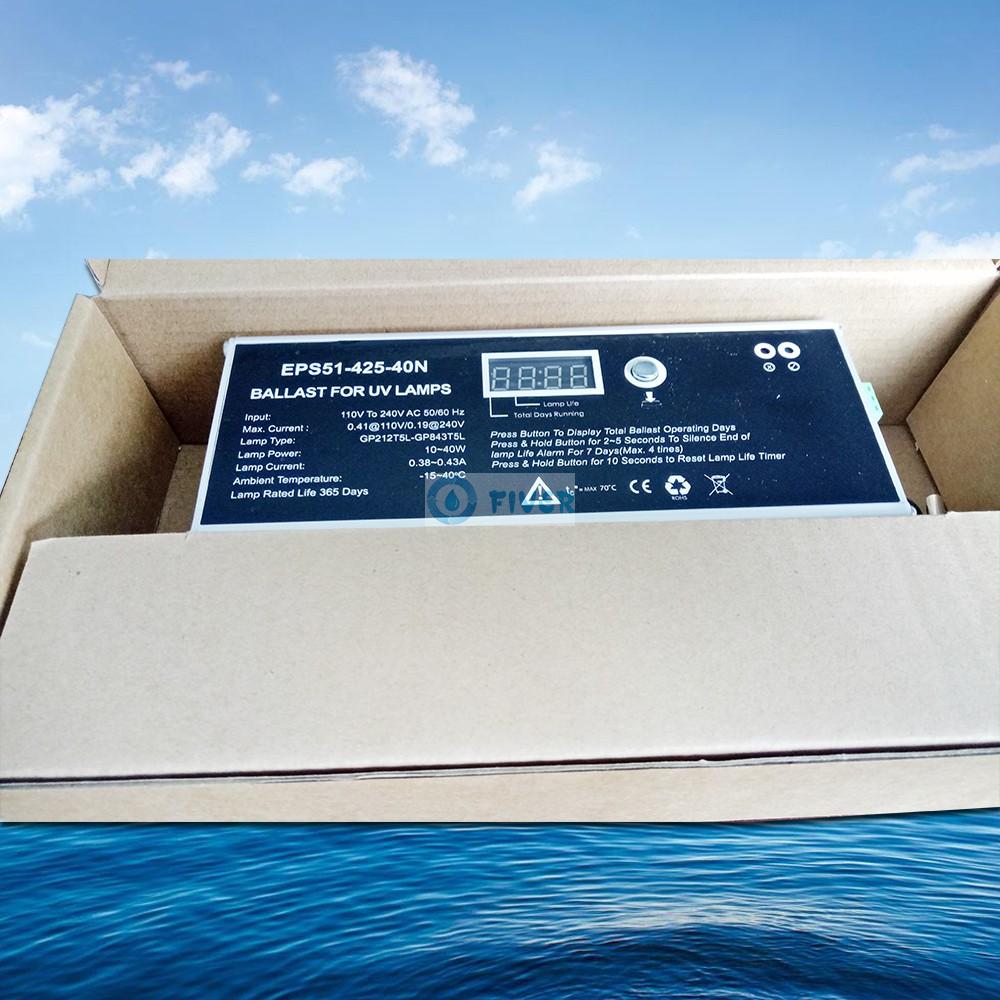

40W UL List Timer UV Lamp Ballast

Features:
Pre-heat Start
Constant power design

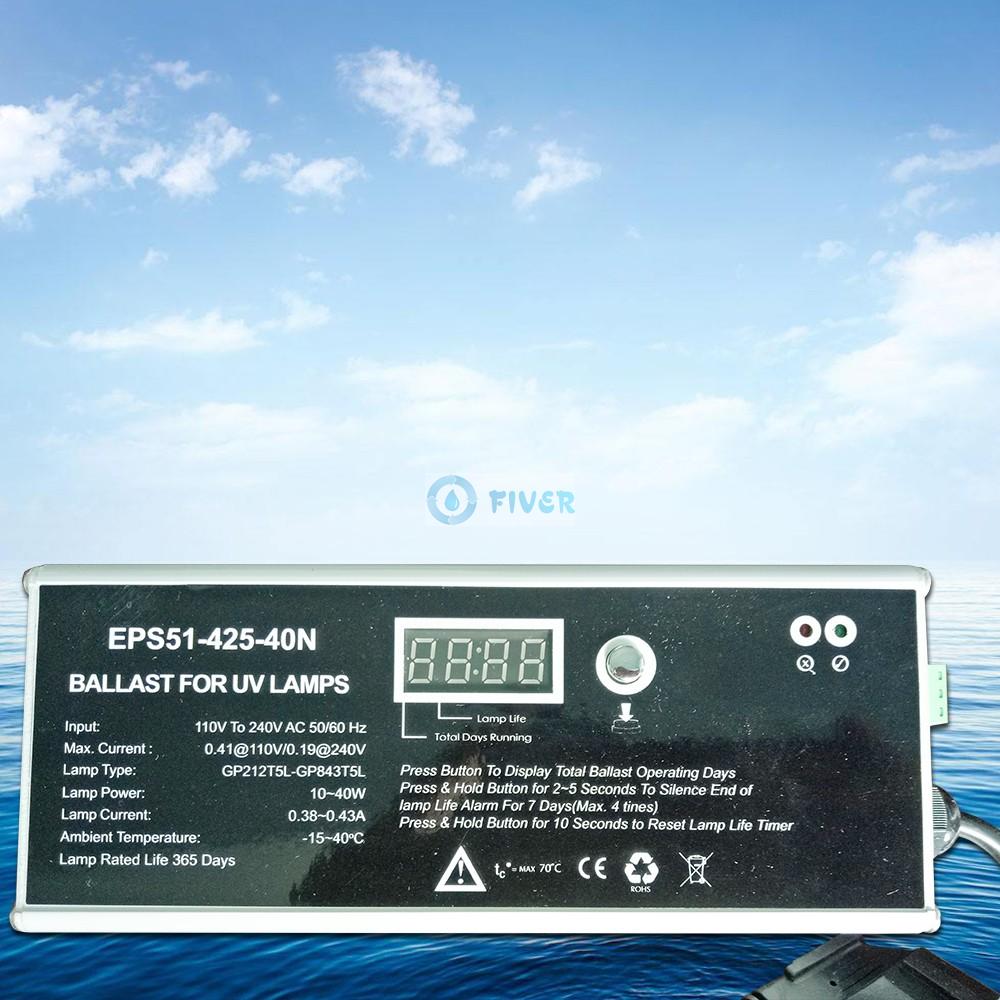

Timer to show lamp and ballasts life
LED indicator(green and red light)
Under-voltage protection function
CE UL List Products

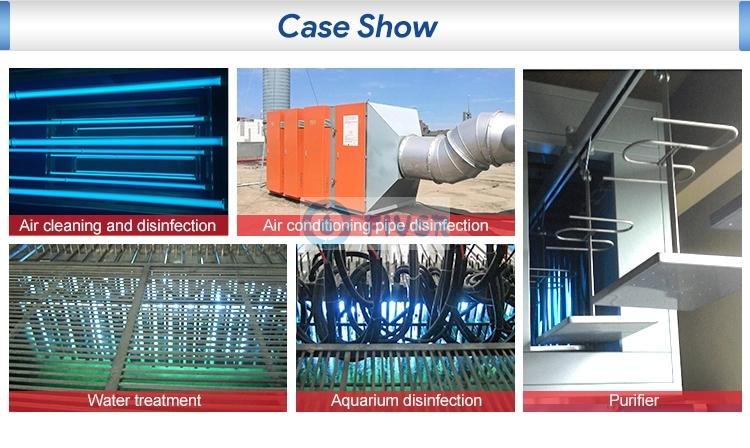

Special design for UV water sterilizer
ON/OFF time up to 50,000 times

Load Lamp:
GPH843T5,GPH793T5,GPH550T5
GPH436T5,G36T5,TUV36T5
TUV PL-L36W,TUV36W

Product Details

Product Tags

40W UL List Timer UV Lamp Ballast for UV Water Treatment

Technical Parameter:


Input Voltage

99-264V

Max. Input   Power

45W

Max. Input   Current

0.2A@230V 0.4@110V

Power per Lamp

10-41W

Lamp Current

0.38-0.43A

Operating   Frequency

40-70KHz

Efficiency

 ≥92%

Start Way

Preheat Start

Power Factor

≥0.98

Total Harmonic   Distortion

15%

Crest Factor

1.7

Ambient   Temperature

15-40

Maximum Case   Temperature

70

The   Authentication Meet

CE UL

1: Above is   standard features. 2: OEM service is available.

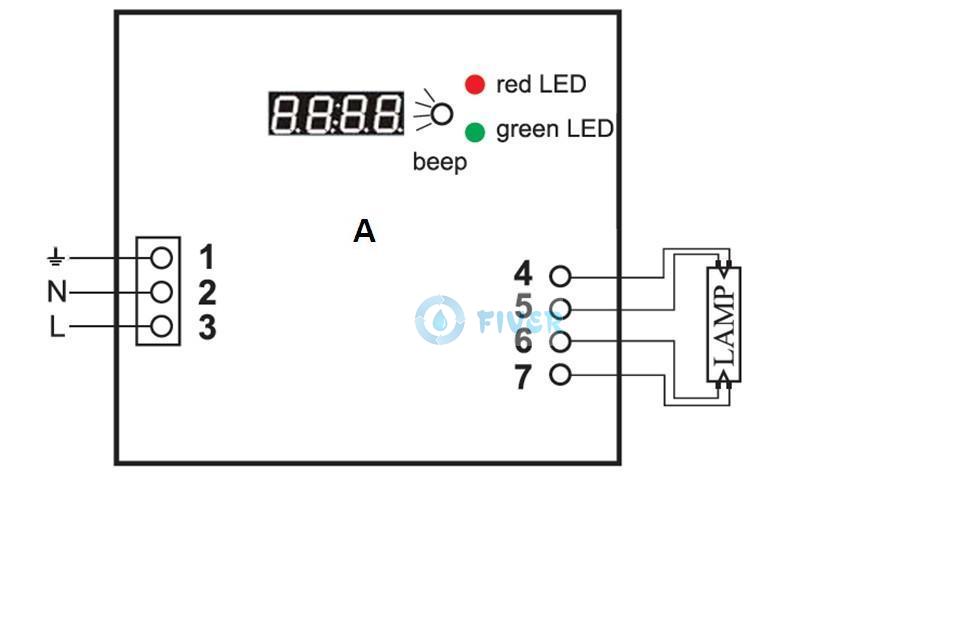

Wiring Diagram:

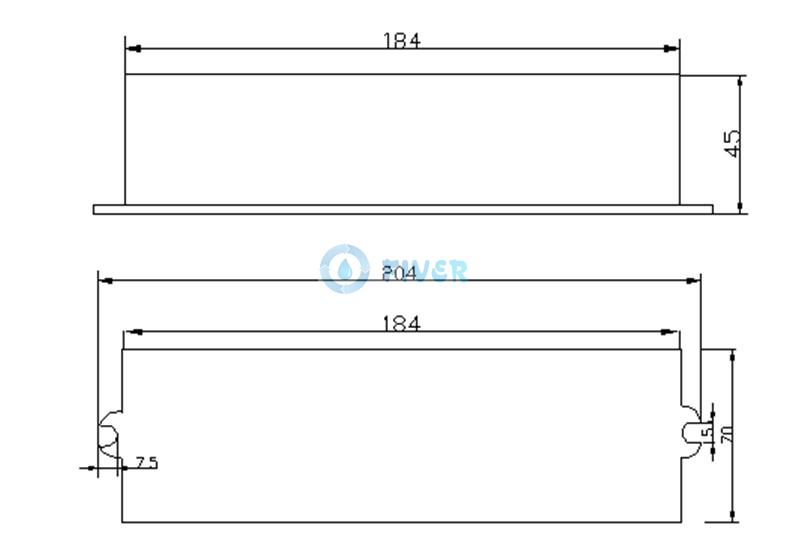

wiring diagram.jpgDimension:尺寸图PH51-425-40L.jpg

Size: 204x74x53mm

Advangtage of UV Lamp Ballast:

  • 30% Less Energy Use Than Traditional Magnetic Ballasts

  • Constant UV Output Eliminates Buck/Boost Transformer

  • Draws 25% Less Current Than Magnetic Ballasts

  • Extended Lamp Life Reduces Maintenance Costs

  • Low Radiant Heat Reduces Air Conditioning Costs

  • Lighter Weight Ballasts Than Magnetic Ballasts

  • Dimming Fuction From 30% to 100%


FAQ of FIVER Group:

Q1:  What is the Warranty ?

A1:  2-5 years according to different models.

Q2: Can I get sample before place bulk orders?

A2: Sure, the sample charge will be double returned to you when you place an order formally.

       So that is mean you will get a free sample.

Q3:  How you ship the order to our Country?

A3:  For sample or small order, express will be the best, such as DHL, TNT, FEDEX.

        For big quantity(more than 100kg), you can choose by Air or by Sea or by Railway.

Q4: How to pay?

A4: 1. 100%TT in advance.

       2. PayPal.

       3. Western Union

       4.50%TT in advance and 50%TT before shipment for big order(more than USD10000)

Q5: What is delivery time?

A5:  3 days if we have them in stock

       15-30 days if we do not have them in stock
