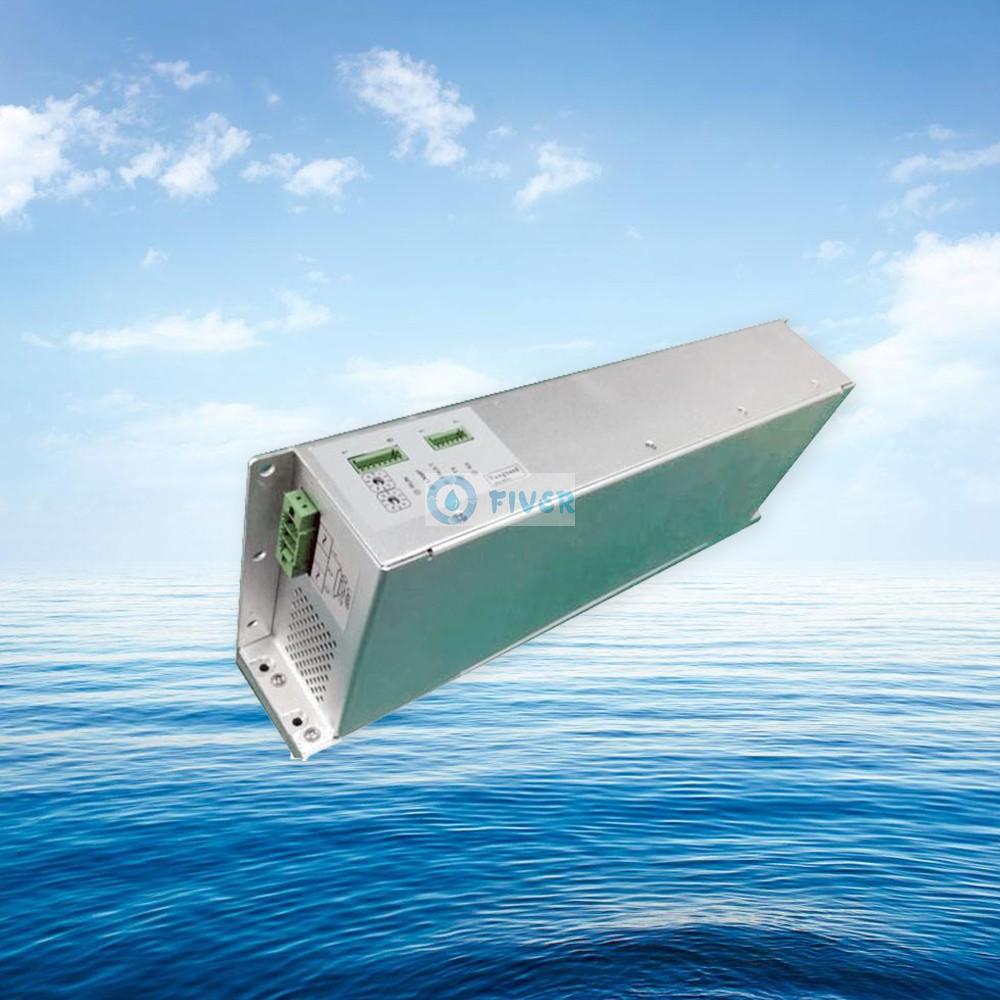

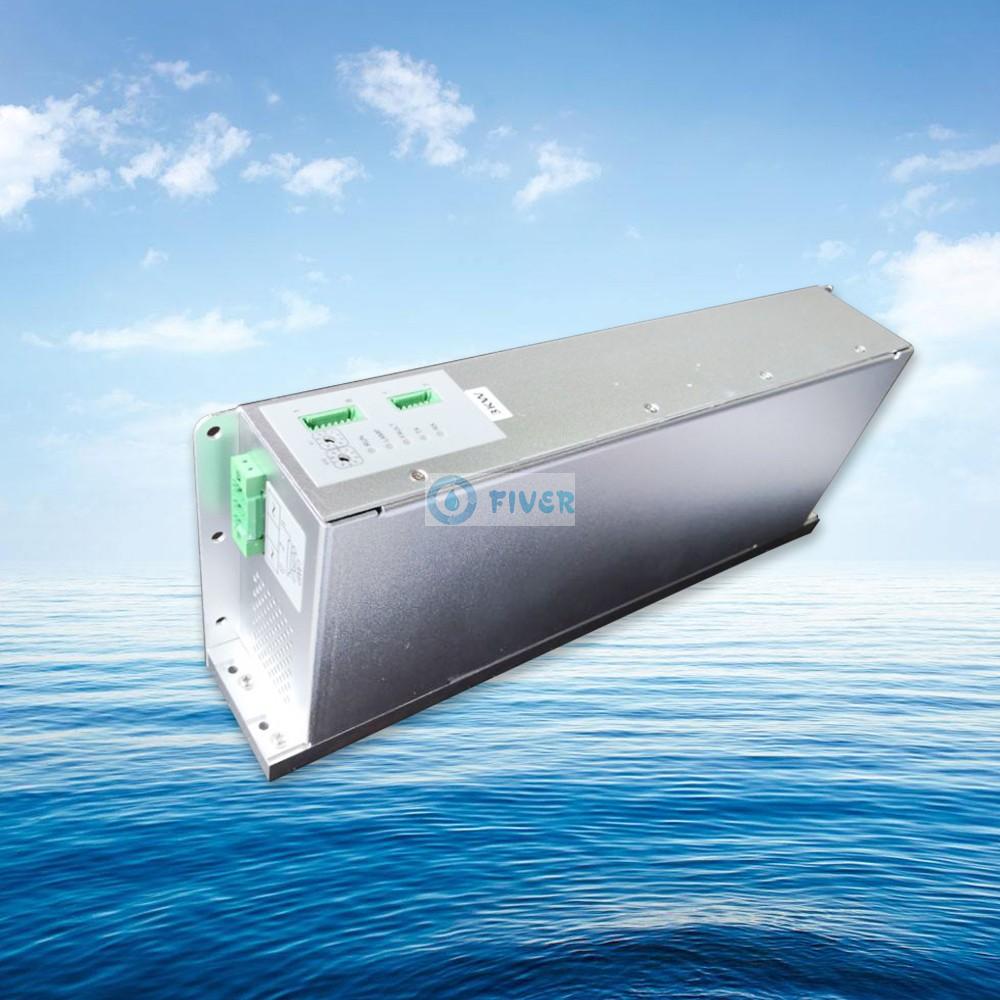

620W Medium Pressure UV Lamp Ballast

Features:
1.40% energy saving than magnetic ballast
2.Power factor can be up to 99%
3.Constant power output, can extent lamp life
4.Isolated transform output, more safe and reliable
5.Easy to install and easy to use
6.Can work at 220V,so do not need 380V Voltage
7.Can choose PWM,0-10V,modbus communication way
8.Special designed for UV water treatment machine.

Load Lamp:

380W Medium Pressure UV Lamp
400W Medium Pressure UV Lamp
620W Medium Pressure UV Lamp

INQUIRY

Product Details

Product Tags

620W Medium Pressure UV Lamp Ballast

This model can replace NEDAP Medium pressure UV ballast

Special designed for UV water difinfection,so quality is excellet

Technical Parameter:

Input Voltage	208-277V
Max. Input Power	660W
Max. Input Current	2.91A@230V
Power per Lamp	Medium Pressure UV Lamp
Lamp Current	4.7-0.43A
Operating Frequency	40-70KHz
Efficiency	≥92%
Start Way	Preheat Start
Power Factor	≥0.99
Total Harmonic Distortion	＜15%
Crest Factor	＜1.7
Ambient Temperature	－15-40℃
Maximum Case Temperature	70℃
The Authentication Meet	CE UL
1: Above is standard features. 2: OEM service is available.

Which medium-pressure UV lamps are compatible with FIVER UV Ballast?

FIVER’s medium pressure uv ballasts are designed to work with all major manufacturers of medium pressure UV lamps, including Heraeus, Hanovia, Alpha cure, Lightsource, Lightech,PhilipsLSI, Atlantic Ultraviolet, and Signify / dr fischer. (To work effectively, the lamp power and current must match our medium pressure ballast.)

Application areas:

Disinfection of water

Photochemistry

Decomposition of pollutions, activated wet oxidation (AOP)

Drying and curing of coatings

Drying and curing with UV technology
