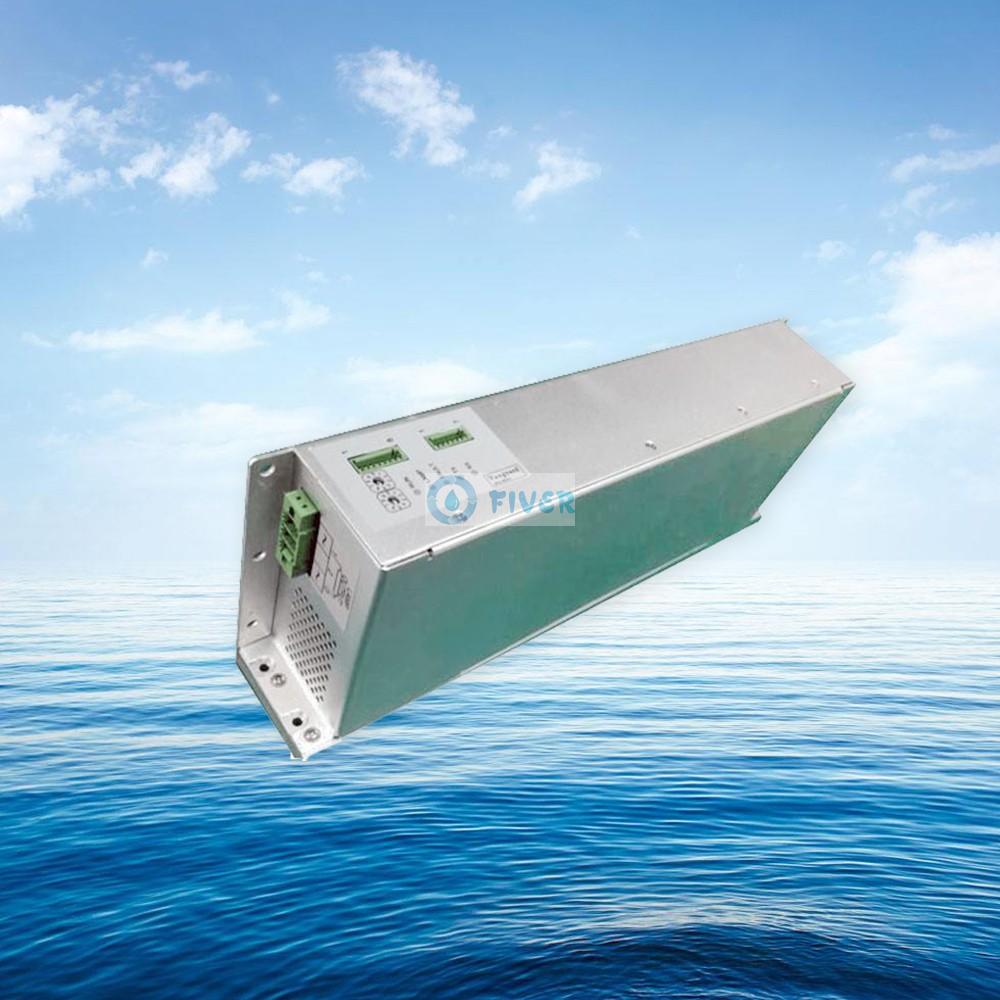

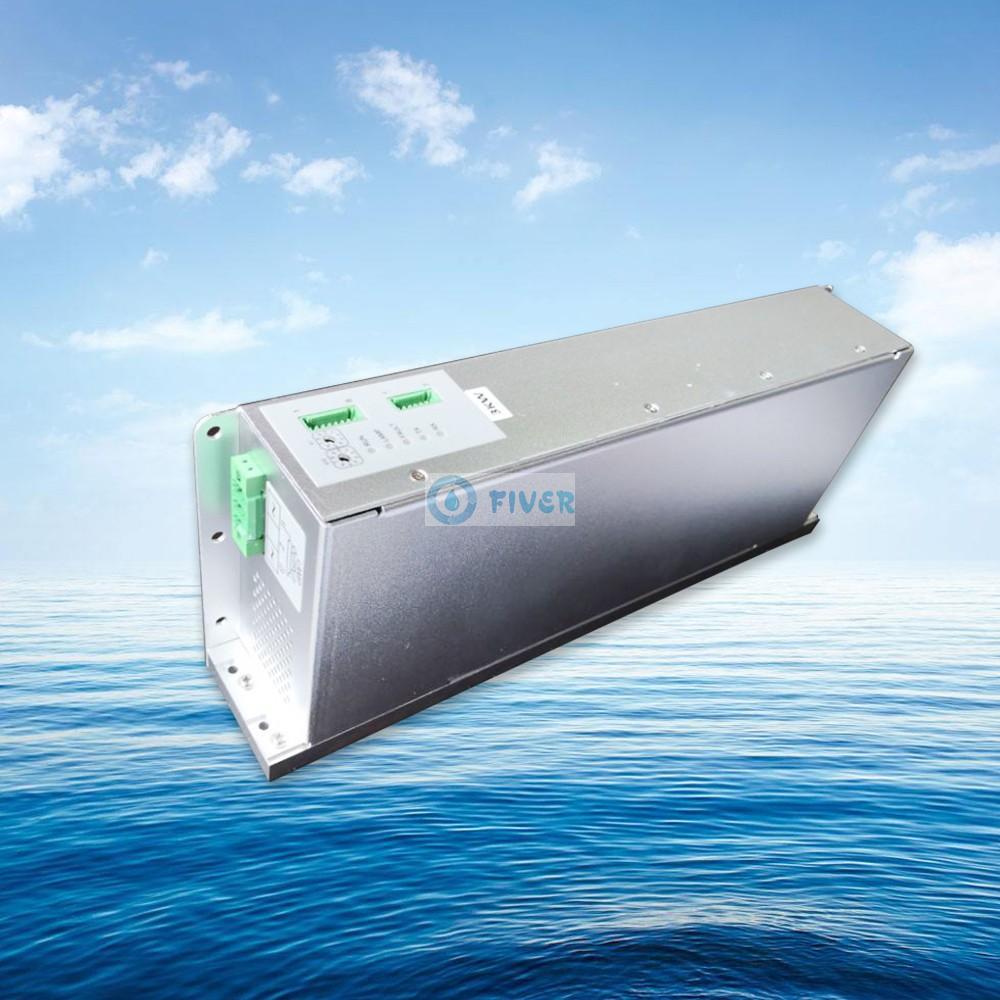

8000W UV Ballast for Medium Pressure Lamp

Features:
1.40% energy saving than magnetic ballast
2.Power factor can be up to 99%
3.Constant power output, can extent lamp life
4.Isolated transform output, more safe and reliable
5.Easy to install and easy to use
6.Save 40% install space than magnetic ballast
7.Can choose PWM,0-10V,modbus communication way
8.Special designed for UV water treatment machine.

Load Lamp:

6400W Medium Pressure UV Lamp
7000W Medium Pressure UV Lamp
8200W Medium Pressure UV Lamp

INQUIRY

Product Details

Product Tags

8000W UV Ballast for Medium Pressure Lamp

This model can replace Trojan Medium pressure UV ballast

Special designed for UV water difinfection,so quality is excellet

Technical Parameter:

Input Voltage	340-450V
Max. Input Power	8730W
Max. Input Current	13.6A@380V
Power per Lamp	Medium Pressure UV Lamp
Lamp Current	6.5-13.5A
Operating Frequency	40-70KHz
Efficiency	≥92%
Start Way	Instant Start
Power Factor	≥0.99
Total Harmonic Distortion	＜15%
Crest Factor	＜1.7
Ambient Temperature	－15-40℃
Maximum Case Temperature	70℃
The Authentication Meet	CE UL
1: Above is standard features. 2: OEM service is available.

Which medium-pressure UV lamps are compatible with FIVER UV Ballast?

FIVER’s medium pressure uv ballasts are designed to work with all major manufacturers of medium pressure UV lamps, including Heraeus, Hanovia, Alpha cure, Lightsource, Lightech,PhilipsLSI, Atlantic Ultraviolet, and Signify / dr fischer. (To work effectively, the lamp power and current must match our medium pressure ballast.)

Application areas:

Disinfection of water

Photochemistry

Decomposition of pollutions, activated wet oxidation (AOP)

Drying and curing of coatings

Drying and curing with UV technology
