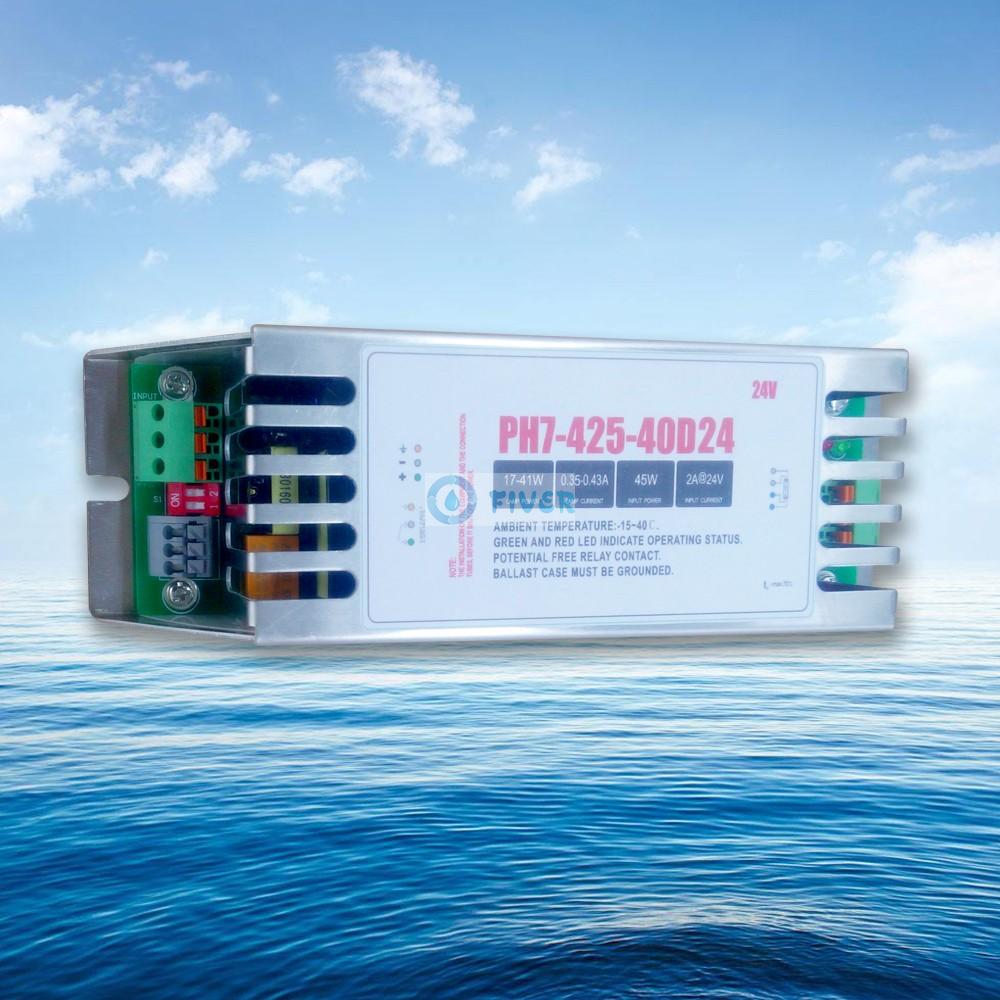

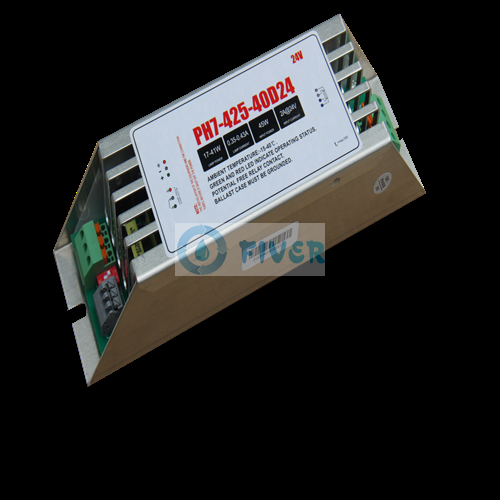

12/24V High Output UV Bulb Ballast

Features:
Pre-heat Start
Constant power design
Dry contacts and indicator
12V/24V double power supply design
Under-voltage protection function
Effectively protect life of battery

Load Lamp:
TUV PL-L 35W/4P HO
GHO357T5L GHO436T5L
GPH357VHT5/HO GPH436VH/HO

Product Details

Product Tags

12/24V High Output UV Bulb Ballast


Technical Parameter:


Input Voltage

10.8V-26.4V

Max. Input   Power

48W

Max. Input   Current

2.0A@24V

Power per Lamp

10-45W

Lamp Current

0.75-0.85A

Operating   Frequency

40-70KHz

Efficiency

 ≥85%

Start Way

Preheated Start

Power Factor

≥0.99

Total Harmonic   Distortion

15%

Crest Factor

1.7

Ambient   Temperature

15-40

Maximum Case   Temperature

70

The   Authentication Meet

CE UL

1: Above is   standard features. 2: OEM service is available.

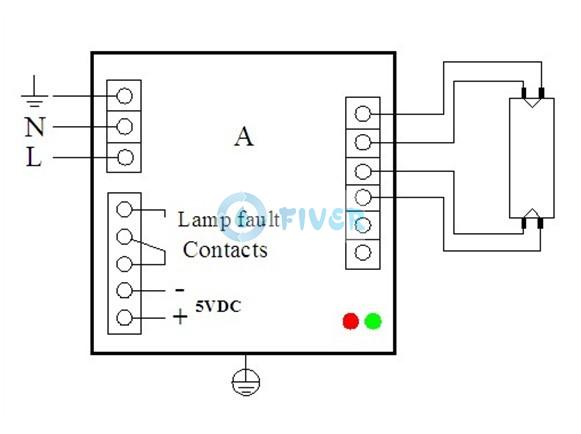

Wiring Diagram:

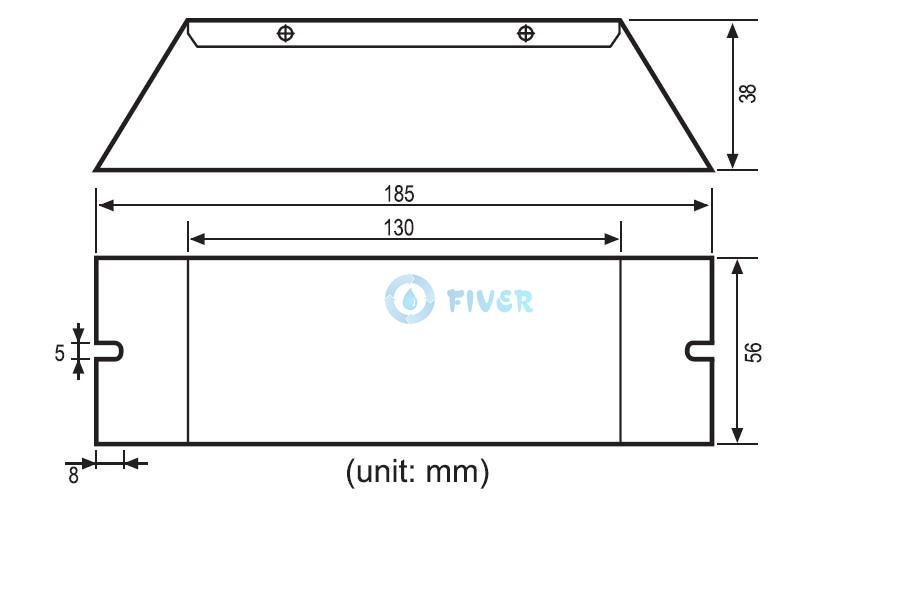

Dimension:





Size: 185x56x38mm


Warning:


Don’t look at the UV lamp directly when the UV lamp is igniting. Don’t irradiate the skin with UV-lamp. Hold a piece of ordinary glass before your eyes when you need to look at the UV-lamp. Please keep the surface of the tube clean to prevent the dust or the dirt from affecting the ultraviolet ray’s output. Please don’t touch the quartz glass with bare hands while installing the lamp and using it.

The quartz glass can be cleaned by using alcohol tampon.



Applications:



Water, air and surface sterilization.

Also the germicidal lamp is commonly used in school, hotel, home, office and other environments for air and surface sterilization.
