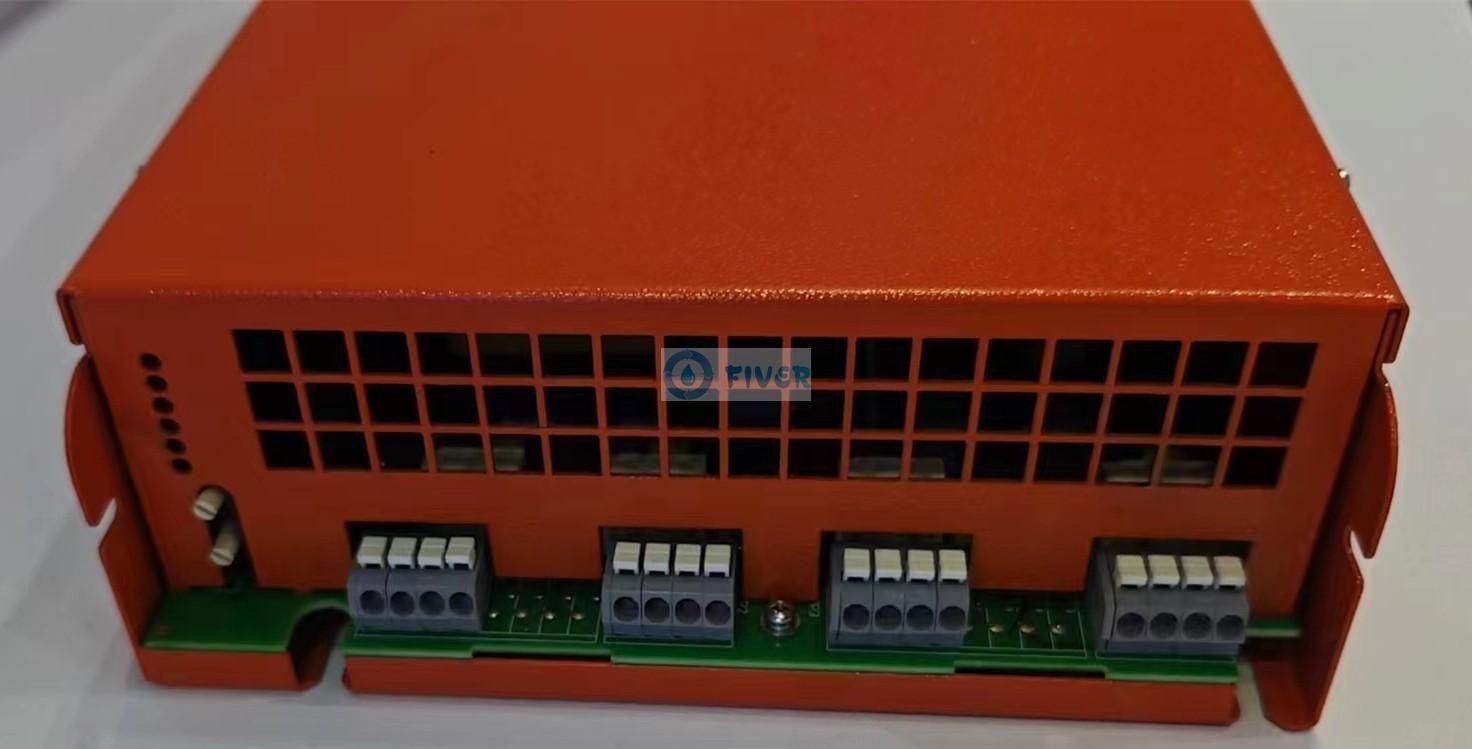

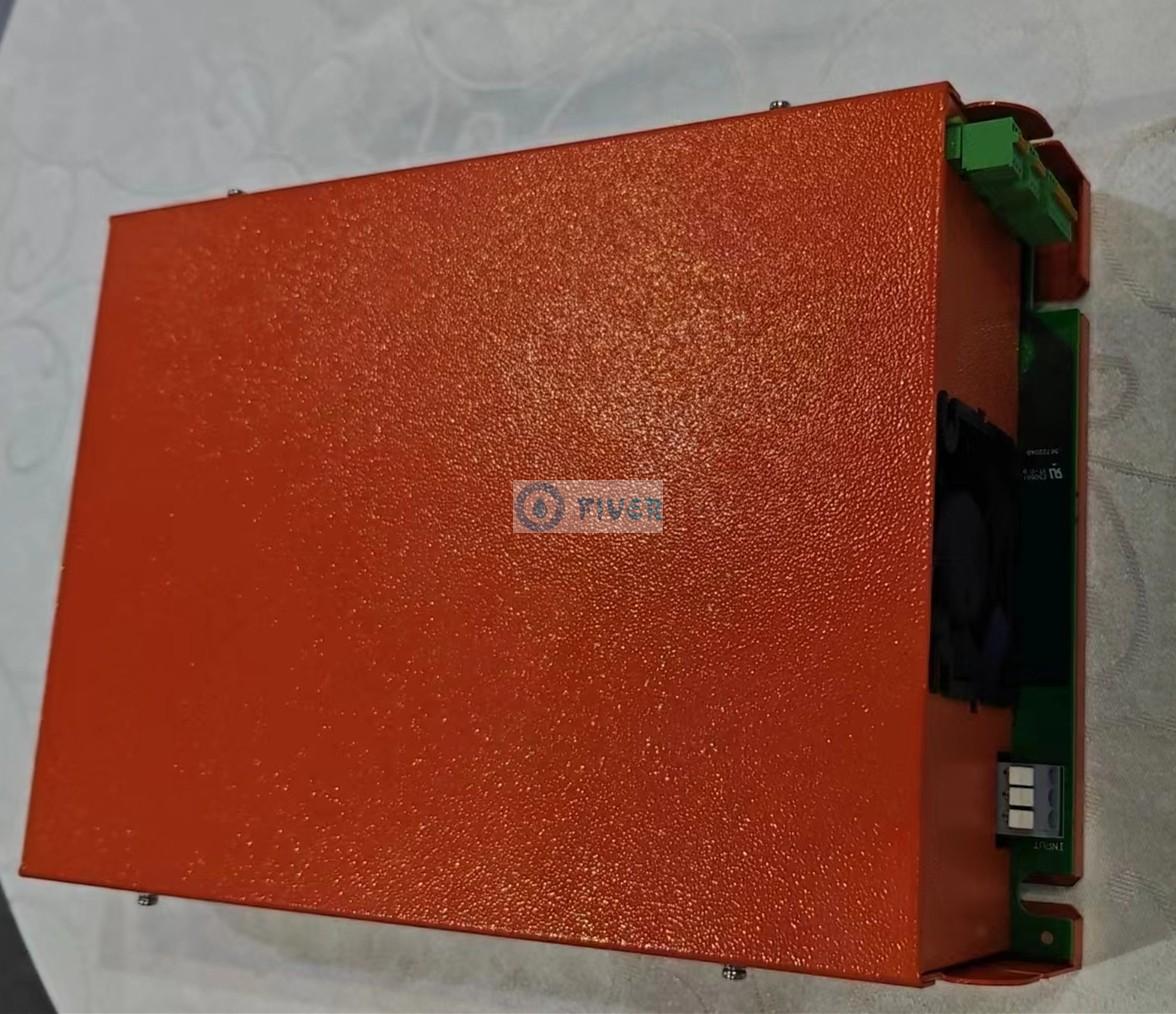

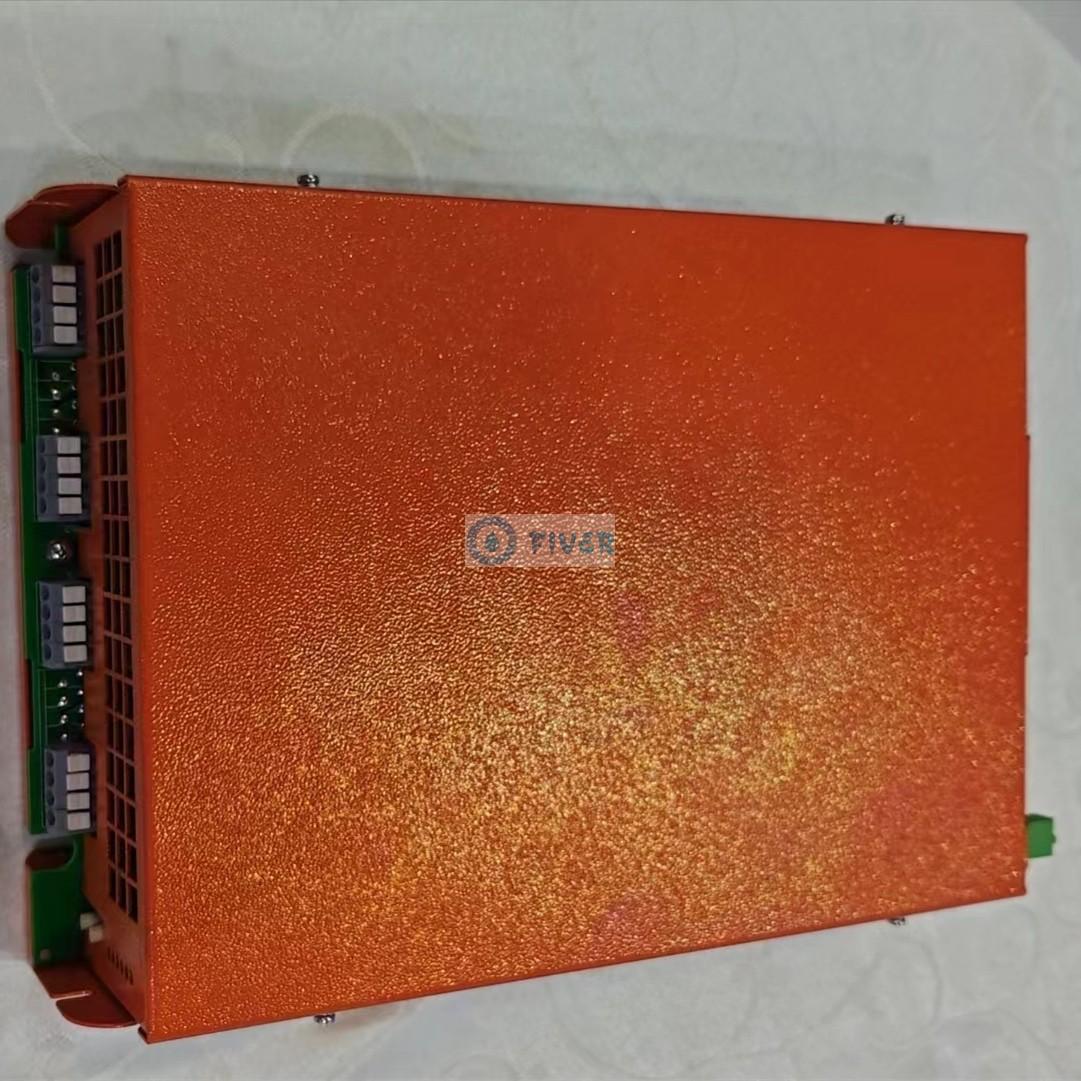

4/155W UV Light Ballast to Replace Aquafine UV Ballast

Features:
Preheat Start
PWM dimmable fuction
Constant power design
CE Rohs List Products
0-5V output and dry contact Function
ON/OFF time up to 50,000 times

Load Lamp:
GHO1554T5L,GHO64T5L,TUV64T5HO
All kinds of 155w 800mA uv lamps

INQUIRY

Product Details

Product Tags

4/155W UV Light Ballast to Replace Aquafine UV Ballast

Technical Parameter:

Input Voltage	180-277V
Max. Input Power	760W
Max. Input Current	3.37A@230V
Power per Lamp	4x155W UV Lamp
Lamp Current	0.8-0.9A
Operating Frequency	40-70KHz
Efficiency	≥90%
Start Way	Preheat Start
Power Factor	≥0.98
Total Harmonic Distortion	＜15%
Crest Factor	＜1.7
Ambient Temperature	－15-40℃
Maximum Case Temperature	70℃
The Authentication Meet	CE UL
1: Above is standard features. 2: OEM service is available.

FIVER Environment Group Company has focus on gamut of UV industry and in UV Light Ballast for 30 years which has made UV industry standards high in China. It is exclusive manufactures UV series products in China. Its product lines covers and caters all industries. Capability to supply customized products and perfect solution for every customers. This autonomy provided to buyers makes it unique among st all suppliers from China. Fever environment group holds more than 70 invention patents to its own name. It meets highest production standards and thus is certified by ISO9001, CE & SAA. Own CRM and ERP high-level management software makes operations of company error free and enables organization as a whole to achieve highest standards without having any flaw in its manufacturing system.
