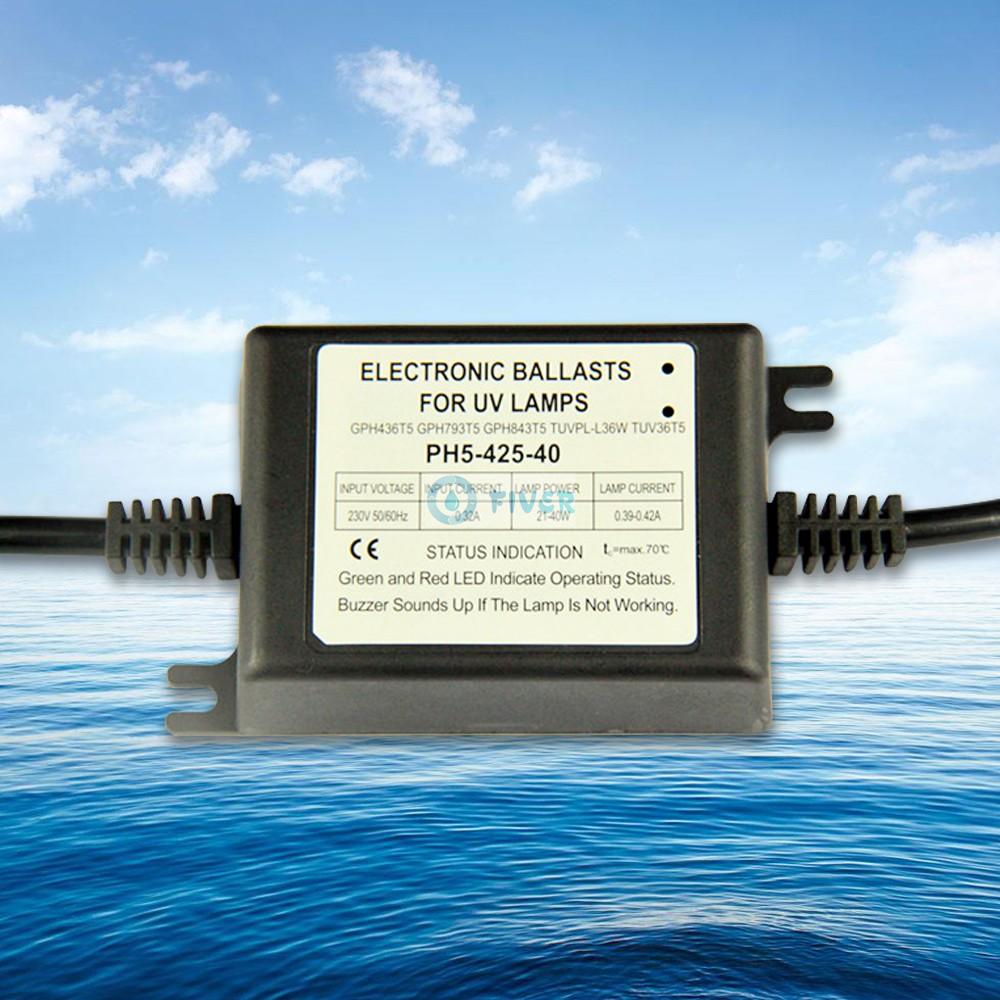

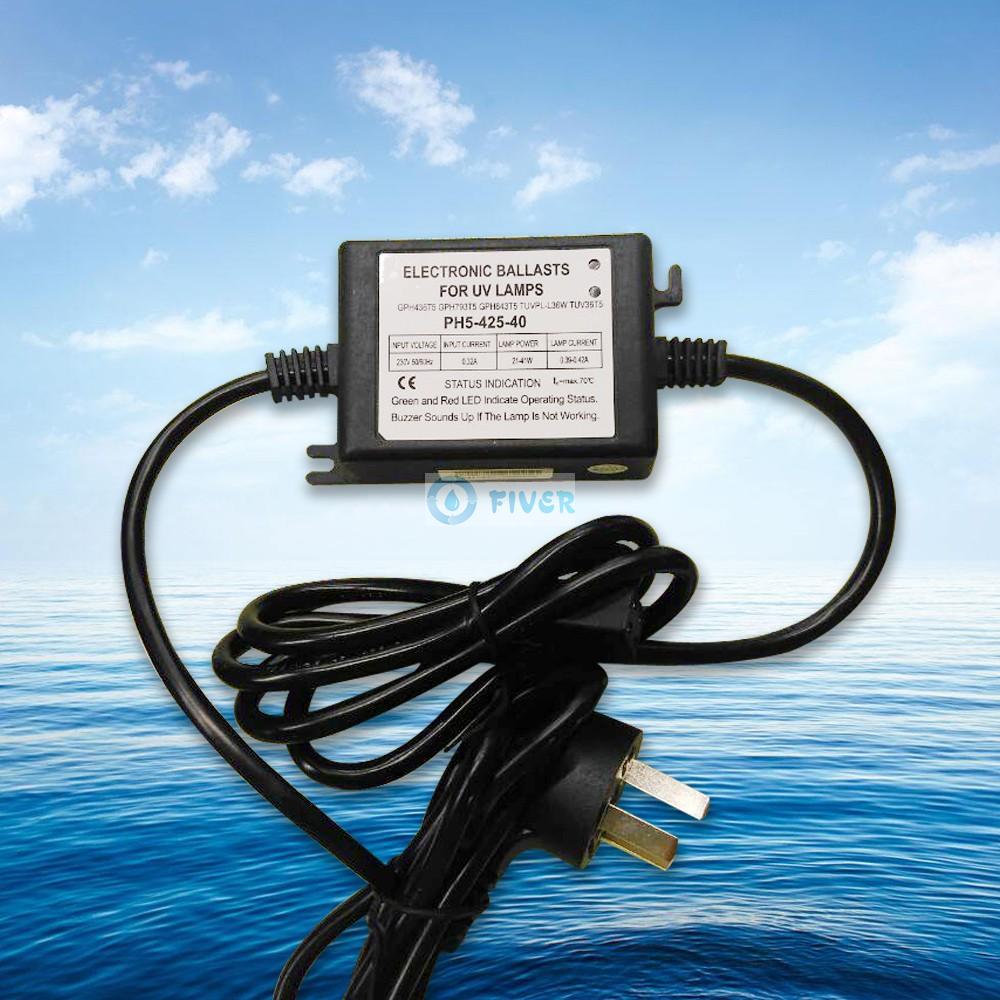

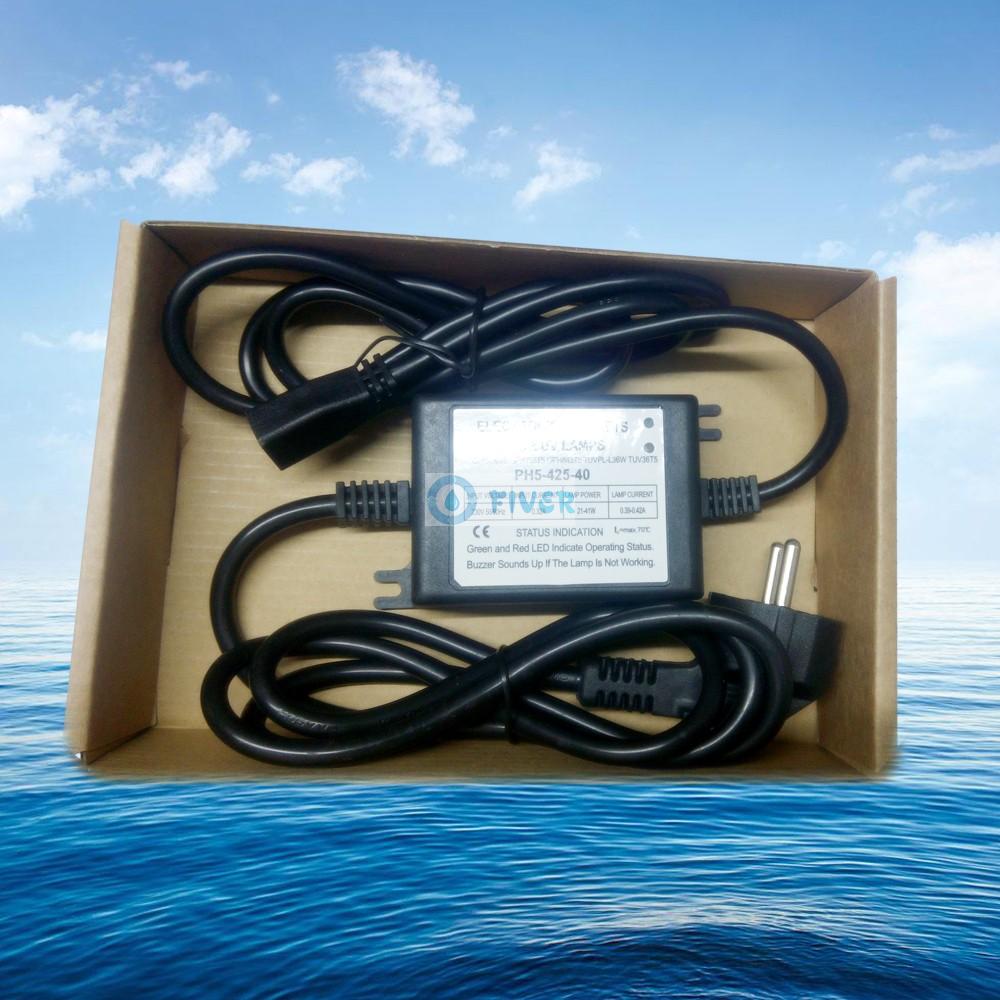

UV Light Ballasts with Beeping Funtion

UV Light Ballasts with Beeping Funtion

Features:
Pre-heat Start
Constant power design
LED indicator(green and red light)
Under-voltage protection function
CE Rohs List Products
Special design for UV water sterilizer
ON/OFF time up to 50,000 times

Load Lamp:
GPH843T5,GPH793T5,GPH550T5
GPH436T5,G36T5,TUV36T5
TUV PL-L36W,TUV36W

INQUIRY

Product Details

Product Tags

UV Light Ballasts with Beeping Funtion for UV Filter

Technical Parameter:

Input Voltage	198-264V
Max. Input Power	45W
Max. Input Current	0.36A@230V
Power per Lamp	10-41W
Lamp Current	0.38-0.43A
Operating Frequency	40-70KHz
Efficiency	≥92%
Start Way	Preheat Start
Power Factor	≥0.55
Total Harmonic Distortion	＜15%
Crest Factor	＜1.7
Ambient Temperature	－15-40℃
Maximum Case Temperature	70℃
The Authentication Meet	CE UL
1: Above is standard features. 2: OEM service is available.

Wiring Diagram:

PH5-425-40接线图.jpg Dimension:

Size: 105x60x30mm

Advangtage of UV Lamp Ballast:

30% Less Energy Use Than Traditional Magnetic Ballasts
Constant UV Output Eliminates Buck/Boost Transformer
Draws 25% Less Current Than Magnetic Ballasts
Extended Lamp Life Reduces Maintenance Costs
Low Radiant Heat Reduces Air Conditioning Costs
Lighter Weight Ballasts Than Magnetic Ballasts
Dimming Fuction From 30% to 100%

FAQ of FIVER Group:

Q1: What is the Warranty ?

A1: 2-5 years according to different models.

Q2: Can I get sample before place bulk orders?

A2: Sure, the sample charge will be double returned to you when you place an order formally.

So that is mean you will get a free sample.

Q3: How you ship the order to our Country?

A3: For sample or small order, express will be the best, such as DHL, TNT, FEDEX.

For big quantity(more than 100kg), you can choose by Air or by Sea or by Railway.

Q4: How to pay?

A4: 1. 100%TT in advance.

2. PayPal.

3. Western Union

4.50%TT in advance and 50%TT before shipment for big order(more than USD10000)

Q5: What is delivery time?

A5: 3 days if we have them in stock

15-30 days if we do not have them in stock
