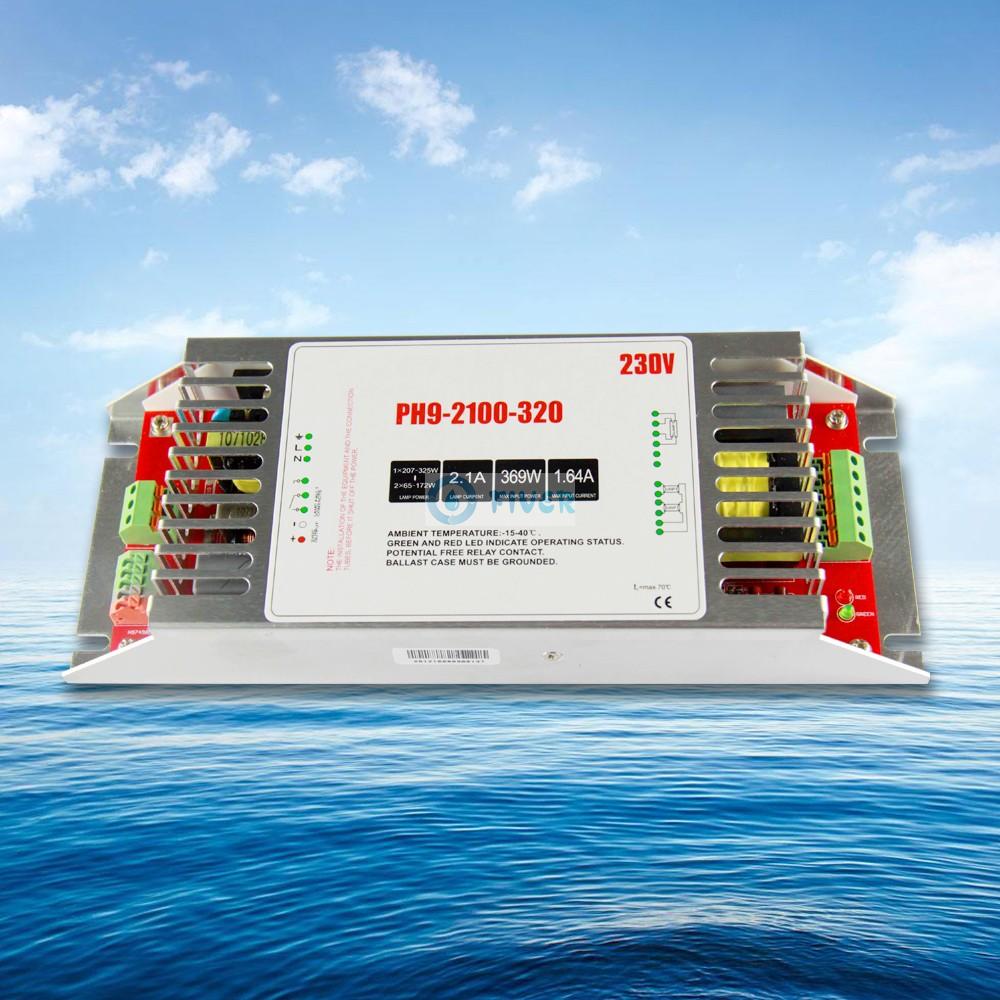

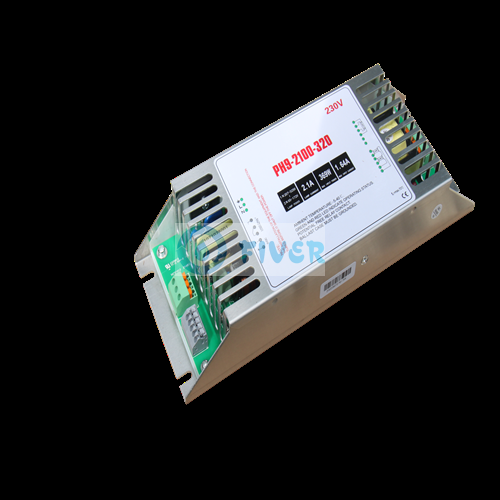

Wide Voltage Electronic Ballasts for 320W UV Light

Wide Voltage Electronic Ballasts for 320W UV Light
Features:
Preheat Start
Can work at both 110V and 220V
Constant power design
CE UL List Products
0-5V output and dry contact Function
ON/OFF time up to 50,000 times

Load Lamp:
GPHHA843T6,GPHHA1000T6
GPHHA357T6,GPHHA1554T6
TUV325WXPT,NNI300/147XL

Product Details

Product Tags

Wide Voltage Electronic Ballasts for 320W UV Light

Technical Parameter:

Input Voltage

99-264V

Max. Input   Power

369W

Max. Input   Current

1.64A@230V 3.28A@110V

Power per Lamp

320W UV Lamp

Lamp Current

2.0-2.2A

Operating   Frequency

40-70KHz

Efficiency

 ≥85%

Start Way

Preheat Start

Power Factor

≥0.98

Total Harmonic   Distortion

＜15%

Crest Factor

＜1.7

Ambient   Temperature

－15-40℃

Maximum Case   Temperature

70℃

The   Authentication Meet

CE UL

1: Above is   standard features. 2: OEM service is available.

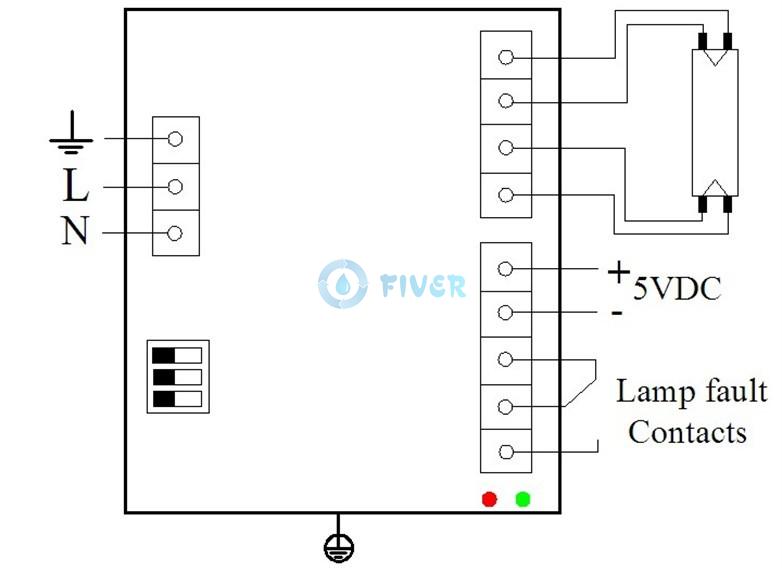

Wiring Diagram:

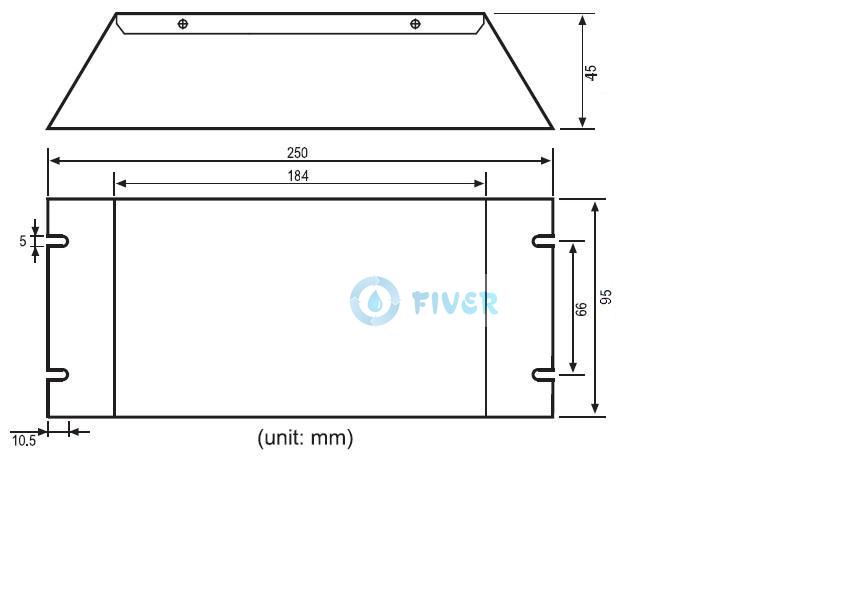

PH9-AL-400接线图.jpgDimension:


PH9-AL-400尺寸图.jpgSize: 250x95x45mm

Advangtage of UV Lamp Ballast:

  • 30% Less Energy Use Than Traditional Magnetic Ballasts

  • Constant UV Output Eliminates Buck/Boost Transformer

  • Draws 25% Less Current Than Magnetic Ballasts

  • Extended Lamp Life Reduces Maintenance Costs

  • Low Radiant Heat Reduces Air Conditioning Costs

  • Lighter Weight Ballasts Than Magnetic Ballasts

  • Dimming Fuction From 30% to 100%


Why choose us?



1.    More Than 30 Years Experience on UV Ballast Products.

2.    Exporting UV Light Ballast to Over 50 Countries

3.    More Than 5,000 Customers Trust Our UV Products

4.    Long Time Warranty of UV Ballasts from 2-8 Years

5.    24/7 Working Operation with Excellent After-sales Service

6.    Low Repair Rate as Low as to 0.04%(30 Years Average )

7.    OEM&ODM Service for UV Light Ballast with Low MOQ

8.    CE UL ROHS Approval to Insure High Quality UV Ballast
