18W UV Lamp Starter for Water Purification Machine

18W UV Lamp Starter for Water Purification Machine
Features:
Pre-heat Start
Constant power design
LED indicator(green and red light)
Under-voltage protection function
CE UL List Products
Special design for water purifier
ON/OFF time up to 50,000 times

Load Lamp:
GPH150T5,GPH212T5,GPH357T5
GPH287T5,GPH303T5,TUV11W
TUV16W,TUV18W,GPH289T5

Product Details

Product Tags

18W UV Lamp Starter for Water Purification Machine

Technical Parameter:


Input Voltage

196-264V

Max. Input   Power

21.5W

Max. Input   Current

0.17A@230V

Power per Lamp

10-18W

Lamp Current

0.35-0.42A

Operating   Frequency

40-70KHz

Efficiency

 ≥85%

Start Way

Preheat Start

Power Factor

≥0.55

Total Harmonic   Distortion

＜15%

Crest Factor

＜1.7

Ambient   Temperature

－15-40℃

Maximum Case   Temperature

70℃

The   Authentication Meet

CE UL

1: Above is   standard features. 2: OEM service is available.

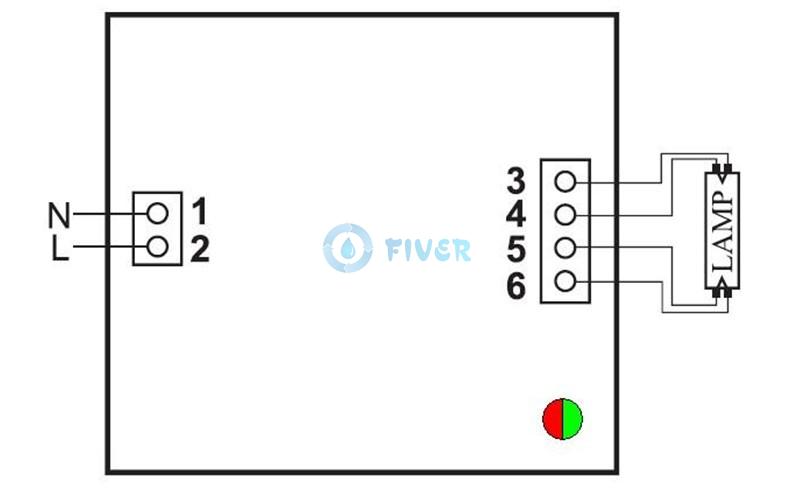

Wiring Diagram:

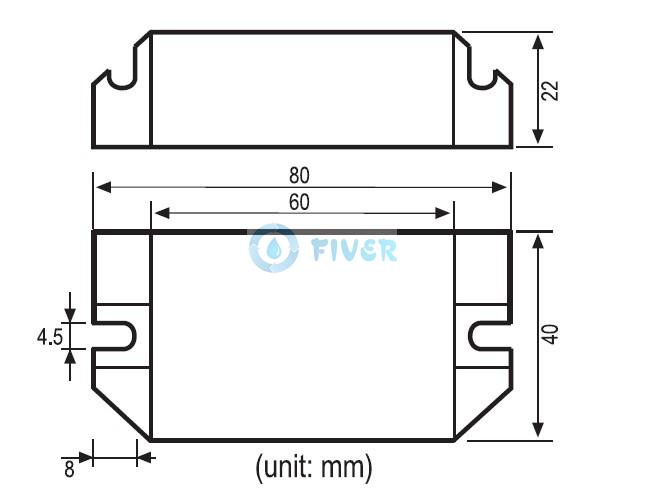

接线图.jpgDimension:



Size: 80x40x22mm

Advangtage of UV Lamp Starter:

  • 30% Less Energy Use Than Traditional Magnetic Ballasts

  • Constant UV Output Eliminates Buck/Boost Transformer

  • Draws 25% Less Current Than Magnetic Ballasts

  • Extended Lamp Life Reduces Maintenance Costs

  • Low Radiant Heat Reduces Air Conditioning Costs

  • Lighter Weight Ballasts Than Magnetic Ballasts

  • Dimming Fuction From 30% to 100%


FAQ:

Q1:  What is the Warranty ?

A1:  2-5 years according to different models.

Q2: Can I get sample before place bulk orders?

A2: Sure, the sample charge will be double returned to you when you place an order formally.

       So that is mean you will get a free sample.

Q3:  How you ship the order to our Country?

A3:  For sample or small order, express will be the best, such as DHL, TNT, FEDEX.

        For big quantity(more than 100kg), you can choose by Air or by Sea or by Railway.

Q4: How to pay?

A4: 1. 100%TT in advance.

       2. PayPal.

       3. Western Union

       4.50%TT in advance and 50%TT before shipment for big order(more than USD10000)

Q5: What is delivery time?

A5:  3 days if we have them in stock

       15-30 days if we do not have them in stock
