2x335W Wedeco EVG 55-II A UV Ballast For SLR32143 UV Lamp

Features:
Preheat Start
PWM dimming function
Constant power design
CE Rohs List Products
0-5V output and dry contact Function
ON/OFF time up to 50,000 times
Load UV Lamp: Wedeco SLR32143

INQUIRY down load to pdf

Product Details

Product Tags

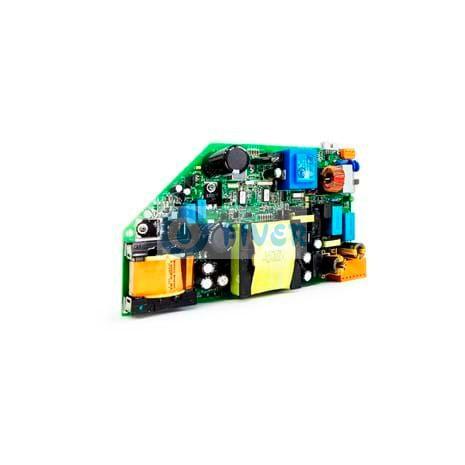

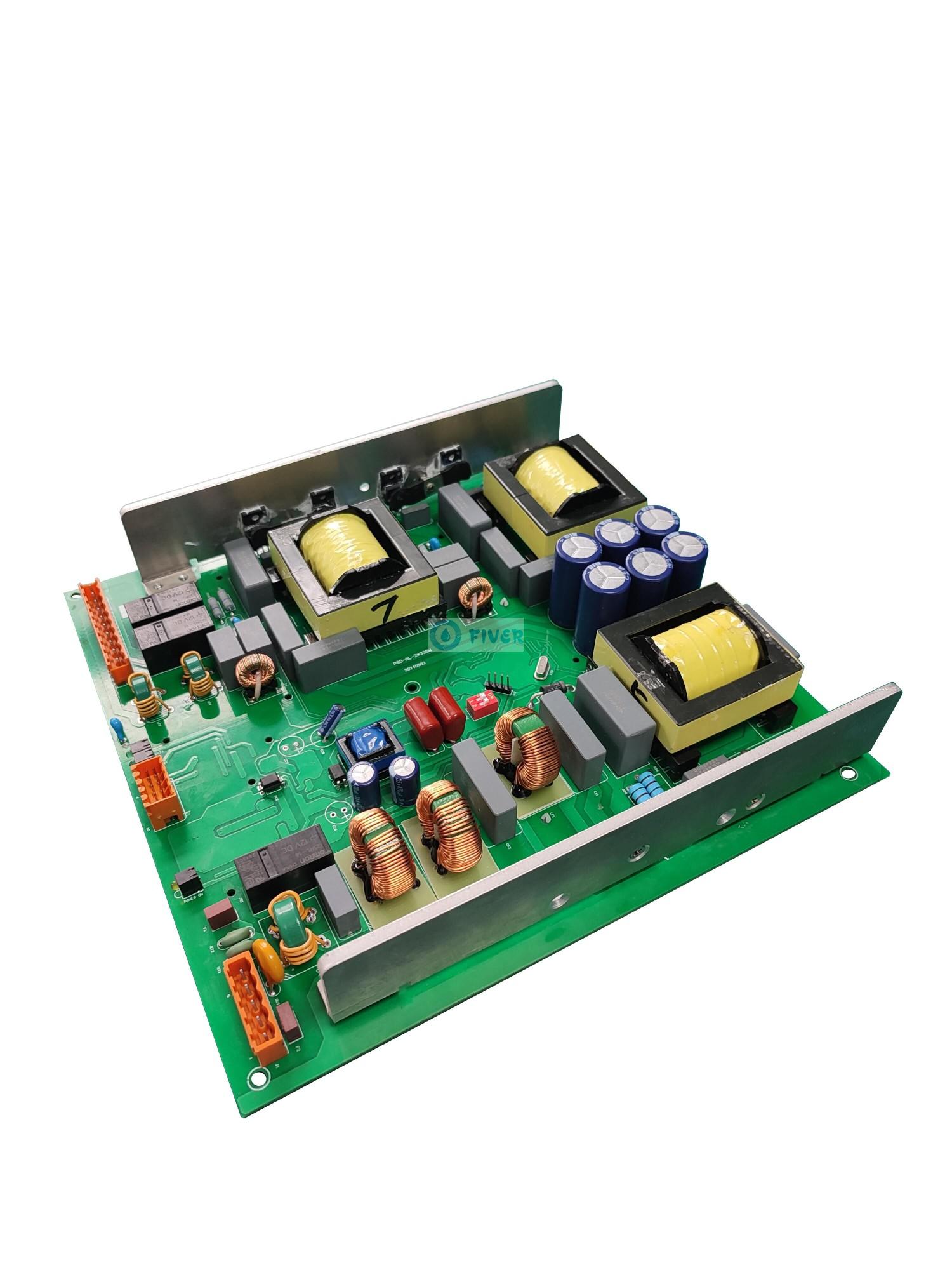

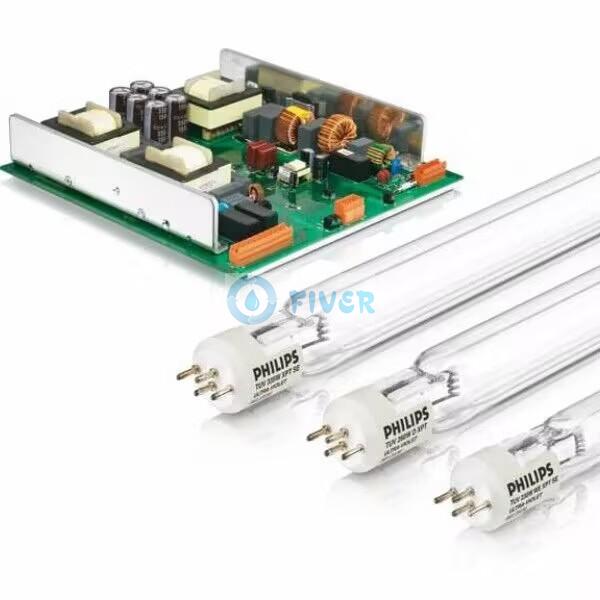

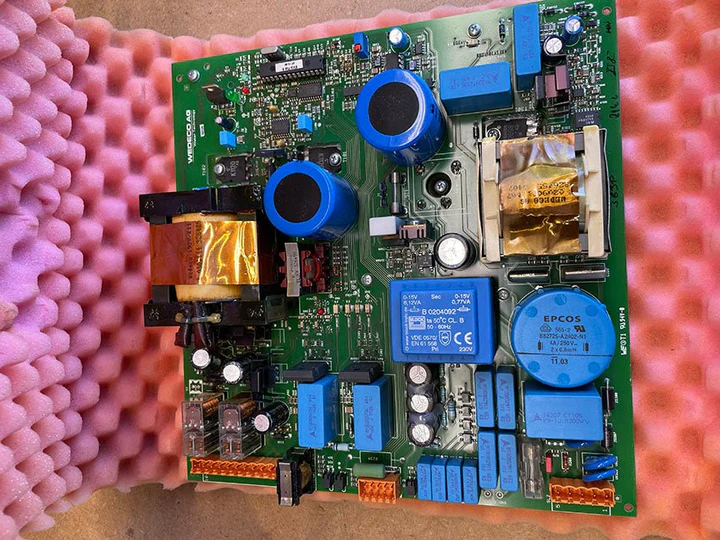

2x335W Wedeco EVG 55-II A UV Ballast For SLR32143 UV Lamp:

Technical Parameter:

Input Voltage	198-264V
Max. Input Power	721W
Max. Input Current	3.16A@230V
Power per Lamp	335W UV Lamp
Lamp Current	1.75-3.85A
Operating Frequency	40-70KHz
Efficiency	≥92%
Start Way	Preheat Start
Power Factor	≥0.99
Total Harmonic Distortion	＜15%
Crest Factor	＜1.7
Ambient Temperature	－15-40℃
Maximum Case Temperature	70℃
The Authentication Meet	CE UL
1: Above is standard features. 2: OEM service is available.
