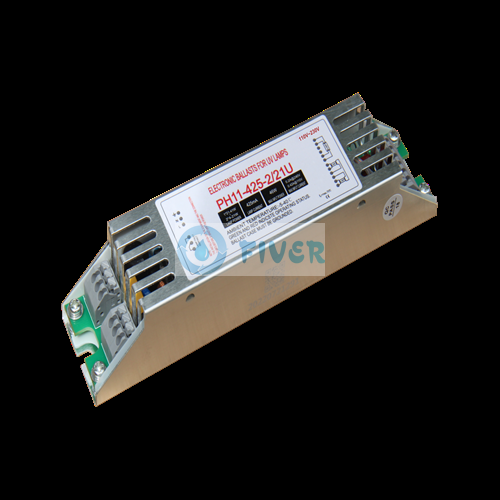

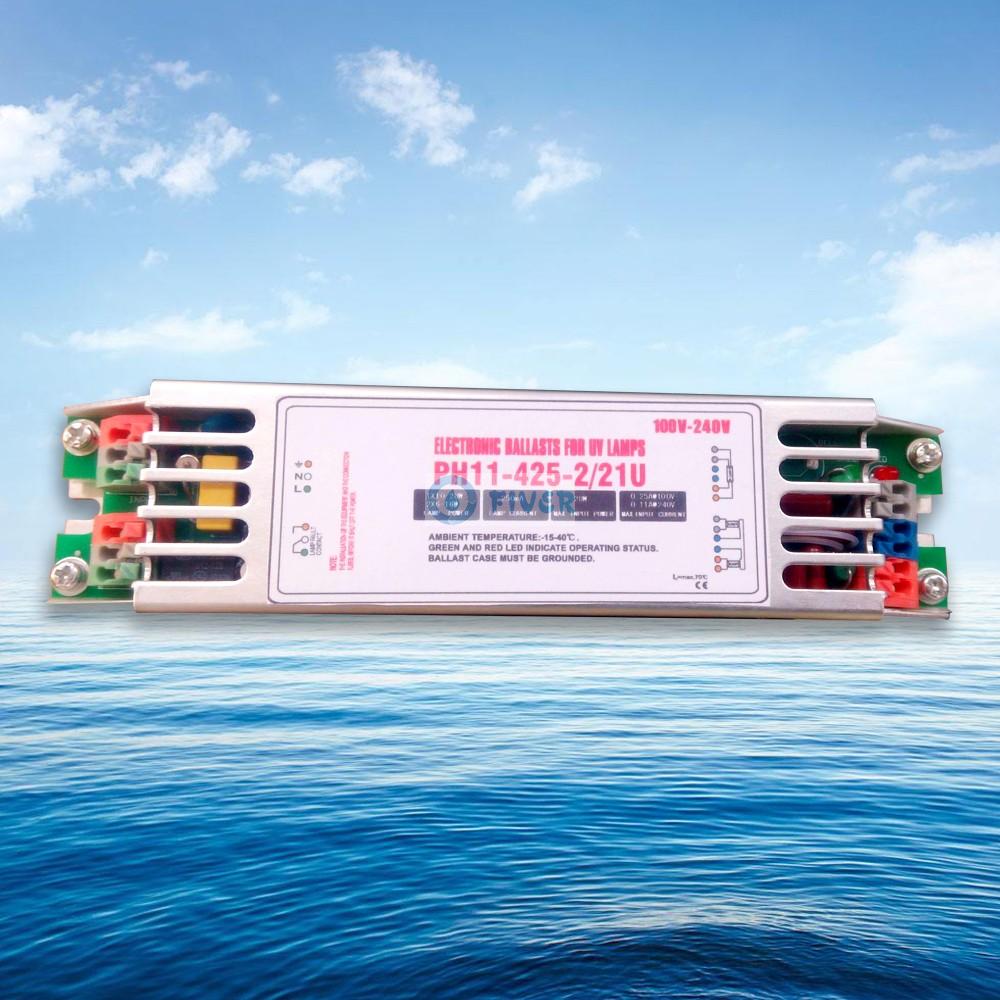

UV Lamp Electronic Ballasts For 2x21W UV Lamp
UV Lamp Electronic Ballasts For 2x21W UV Lamp
Technical Parameter:
Input Voltage | 99-264V |
Max. Input Power | 46W |
Max. Input Current | 0.2A@230V 0.4@110V |
Power per Lamp | 10-21W |
Lamp Current | 0.35-0.42A |
Operating Frequency | 40-70KHz |
Efficiency | ≥85% |
Start Way | Preheat Start |
Power Factor | ≥0.92 |
Total Harmonic Distortion | ＜15% |
Crest Factor | ＜1.7 |
Ambient Temperature | －15-40℃ |
Maximum Case Temperature | 70℃ |
The Authentication Meet | CE UL |
1: Above is standard features. 2: OEM service is available. | |

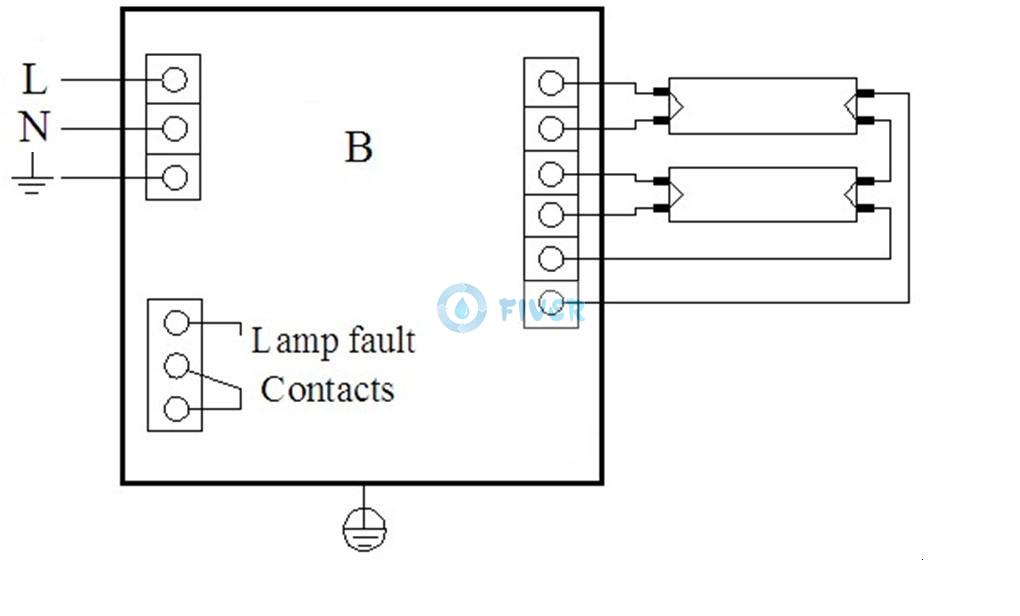

Wiring Diagram:
Dimension:
Size: 165x38x30mm
Advangtage of UV Lamp Ballast:
30% Less Energy Use Than Traditional Magnetic Ballasts
Constant UV Output Eliminates Buck/Boost Transformer
Draws 25% Less Current Than Magnetic Ballasts
Extended Lamp Life Reduces Maintenance Costs
Low Radiant Heat Reduces Air Conditioning Costs
Lighter Weight Ballasts Than Magnetic Ballasts
Dimming Fuction From 30% to 100%
FAQ of FIVER Group:
Q1: What is the Warranty ?
A1: 2-5 years according to different models.
Q2: Can I get sample before place bulk orders?
A2: Sure, the sample charge will be double returned to you when you place an order formally.
So that is mean you will get a free sample.
Q3: How you ship the order to our Country?
A3: For sample or small order, express will be the best, such as DHL, TNT, FEDEX.
For big quantity(more than 100kg), you can choose by Air or by Sea or by Railway.
Q4: How to pay?
A4: 1. 100%TT in advance.
2. PayPal.
3. Western Union
4.50%TT in advance and 50%TT before shipment for big order(more than USD10000)
Q5: What is delivery time?
A5: 3 days if we have them in stock
15-30 days if we do not have them in stock
