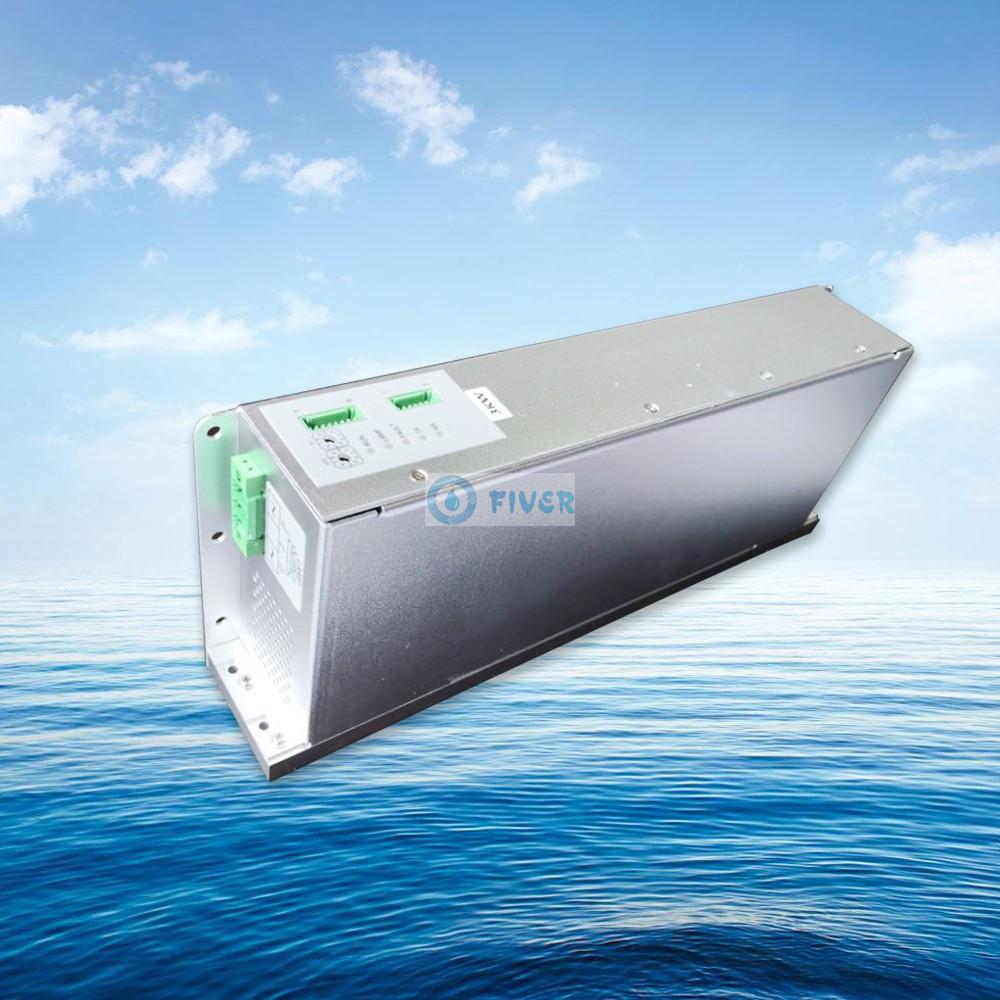

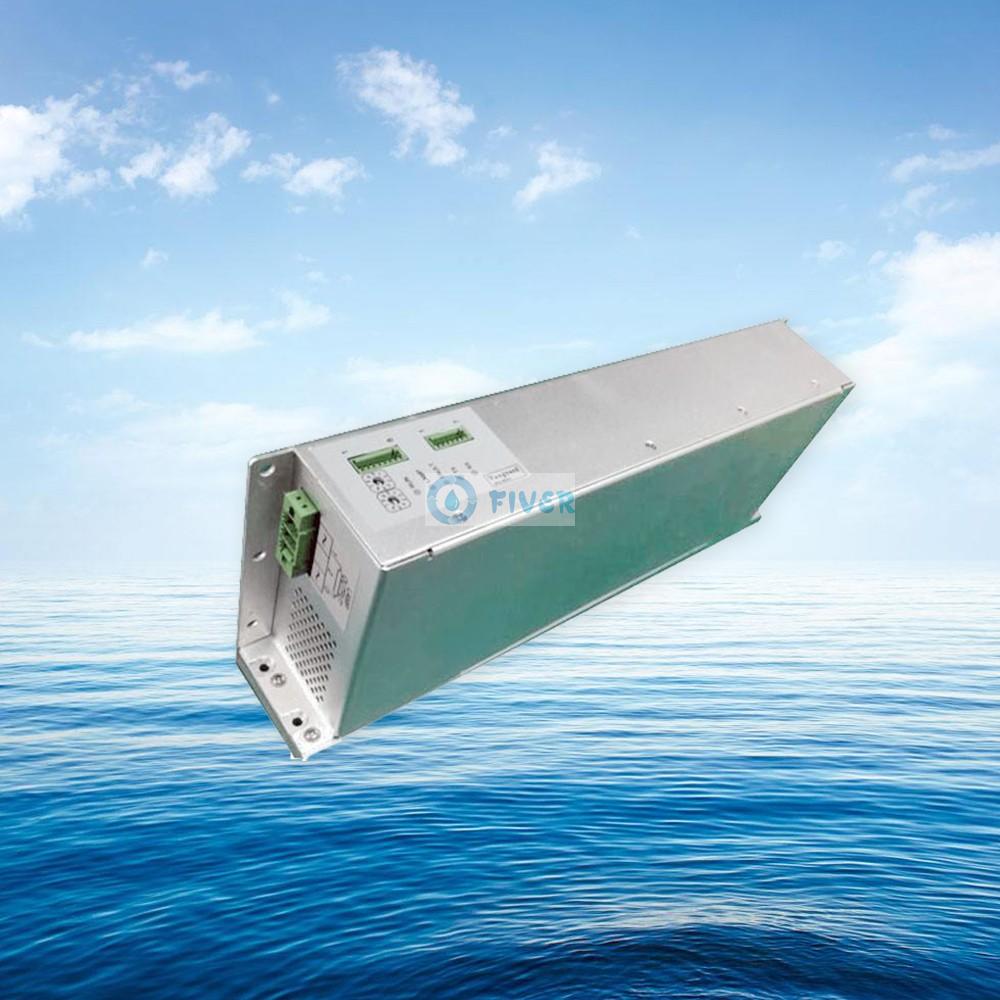

3KW UV Lamp Driver For BWMS

Features:
1.40% energy saving than magnetic ballast
2.Power factor can be up to 99%
3.Constant power output, can extent lamp life
4.Isolated transform output, more safe and reliable
5.Easy to install and easy to use
6.Can work at 220V,so do not need 380V Voltage
7.Can choose PWM,0-10V,modbus communication way
8.Special designed for UV water treatment machine.

Load Lamp:

2100W Medium Pressure UV Lamp
2850W Medium Pressure UV Lamp
3000W Medium Pressure UV Lamp

INQUIRY

Product Details

Product Tags

3KW UV Lamp Driver For BWMS:

Can run all kinds of MP Marine uv lamps from 1KW to 3KW.

Such as Alfa laval,BIO,Lightsource,Heraues,UV technik,atlantium.

Also can replace 3KW Nedap and Trojan UV lamp driver.

More details,please kind contact us immediately.

Technical Parameter:

Input Voltage	198-264V
Max. Input Power	3150W
Max. Input Current	13.9A@230V
Power per Lamp	Marine MP UV Lamp
Lamp Current	6.5-13.5A
Operating Frequency	40-70KHz
Efficiency	≥92%
Start Way	Instant Start
Power Factor	≥0.99
Total Harmonic Distortion	＜15%
Crest Factor	＜1.7
Ambient Temperature	－15-40℃
Maximum Case Temperature	70℃
The Authentication Meet	CE UL
1: Above is standard features. 2: OEM service is available.
