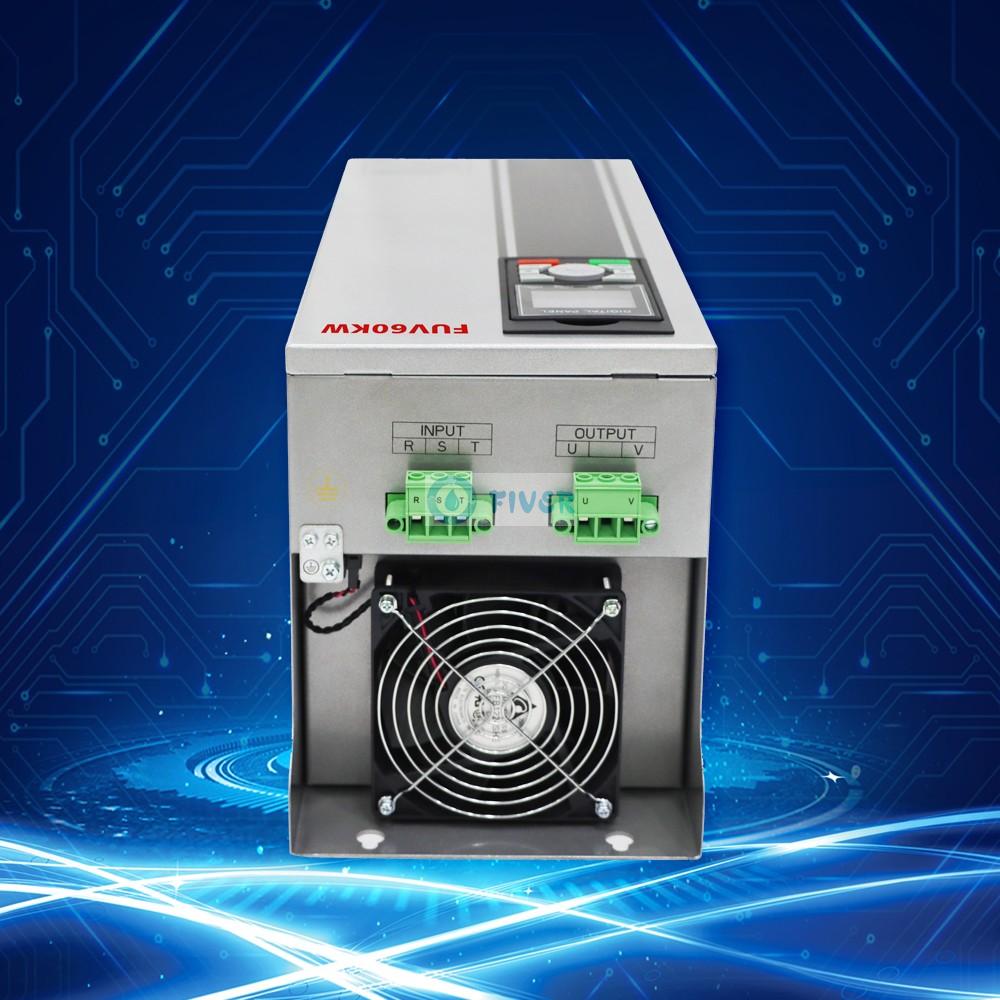

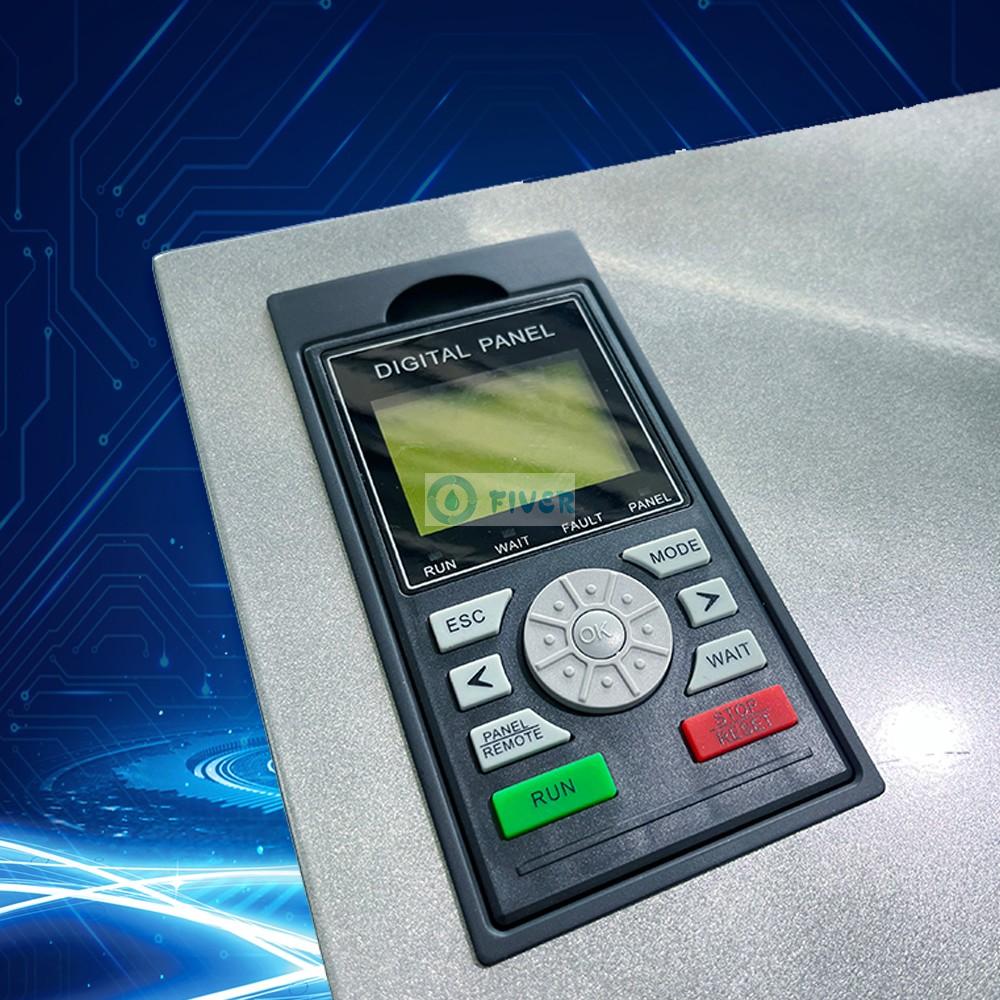

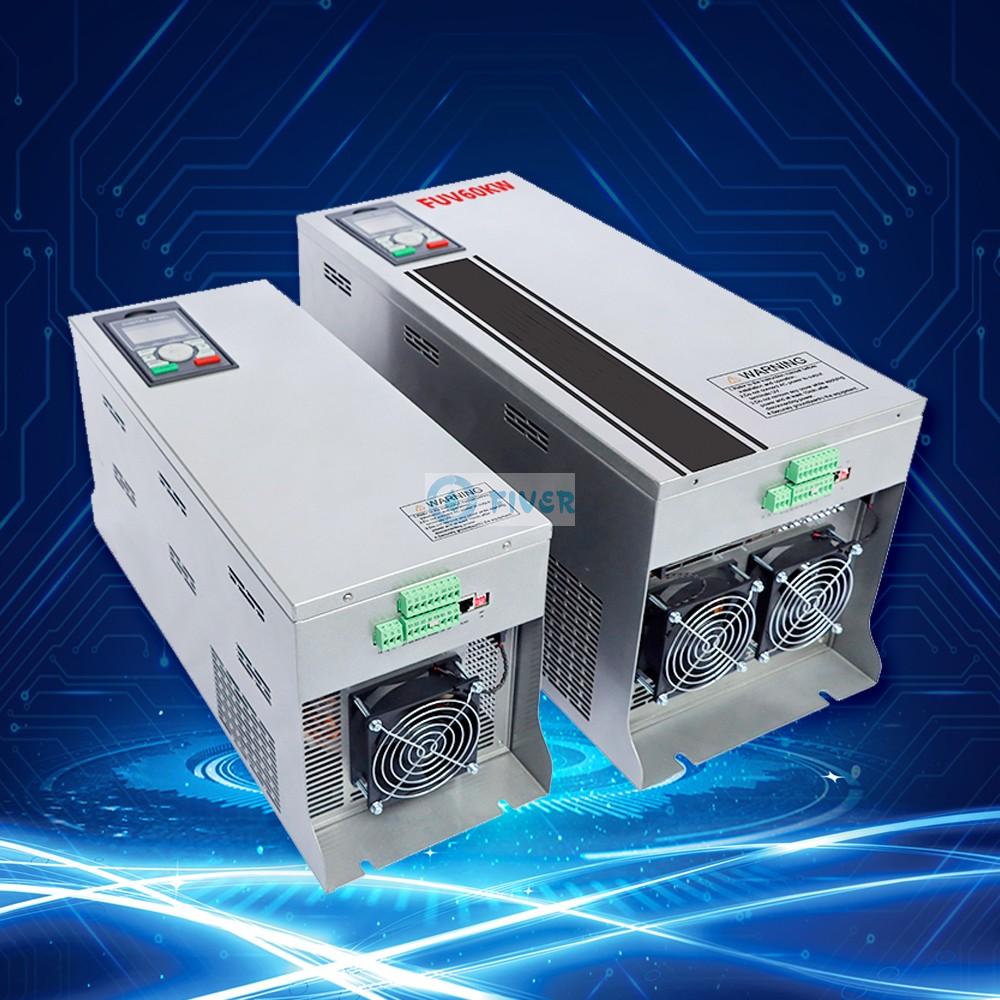

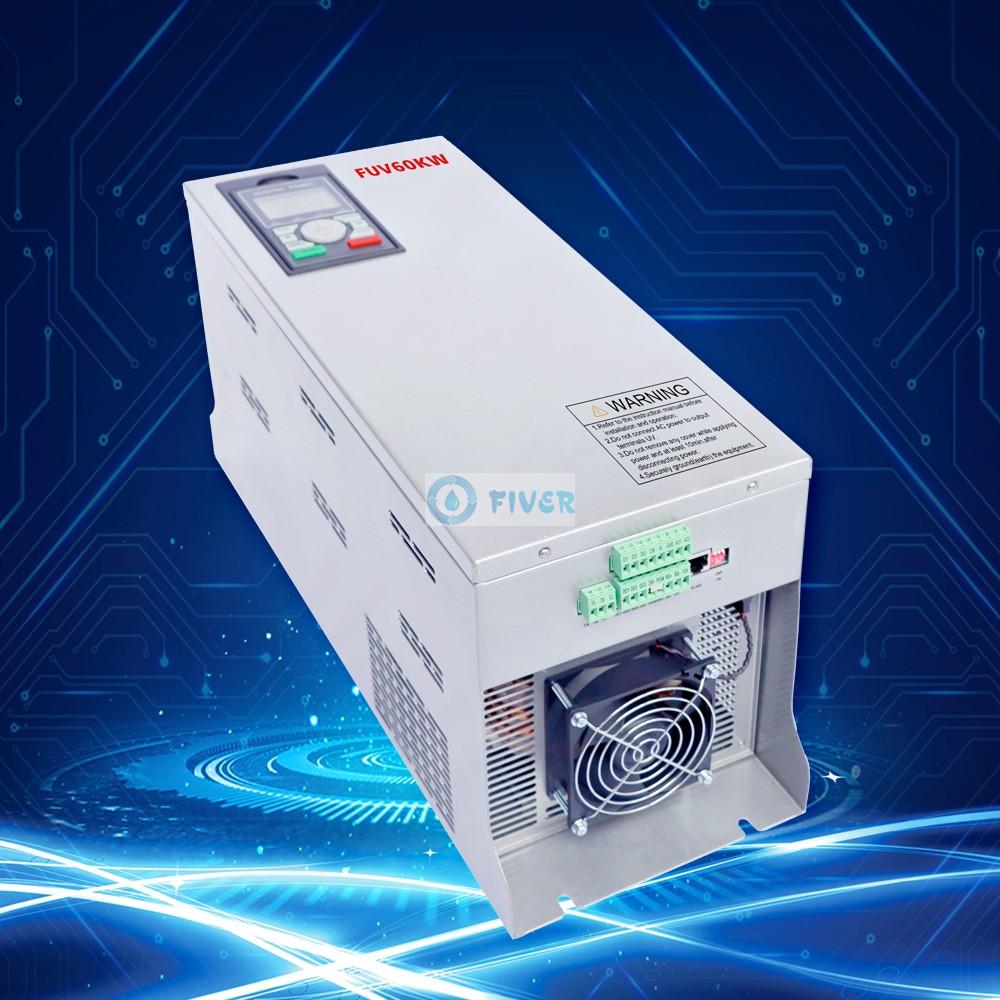

40KW UV Lamp Electronic Controller For Wood Finishing

1.	RS485 Communication Interface, Support Modbus RTU
2.	No Extra Cooler Below 8KW, Can Save a lot Installation Space
3.	Dimmable Range from 10% to 100%, Efficiency UP To 95%
4.	50% Energy Conservation than Magnetic Ballast
5.	Automatic Checking and Matching all Kinds of MP Lamps
6.	More Than Twenty Kinds of Protect Function
7.	Automatic Controlling Fan Delivery to Keep Good Temperature of Lamp
8.     Voltage is 380V and lamp power is 40KW

INQUIRY

Product Details

Product Tags

40KW UV Lamp Electronic Controller For Wood Finishing:

Features:

Wide range input voltage 360V-480V is acceptable;

High igniting voltage, more easy to ignite various lamps;

Excellent heat dissipation performance to improve the power supply overload capability;

Intelligent control of the exhaust fan: fan speed varies according to lamp voltage;

3-phase symmetric mains connection, including missing phase detection and pre-alarm functions such as over-current, over-temperature, abnormal voltage, abnormal lamp etc;

Standard RS485 communication interface and support Mod bus RTU protocol;

Application:
