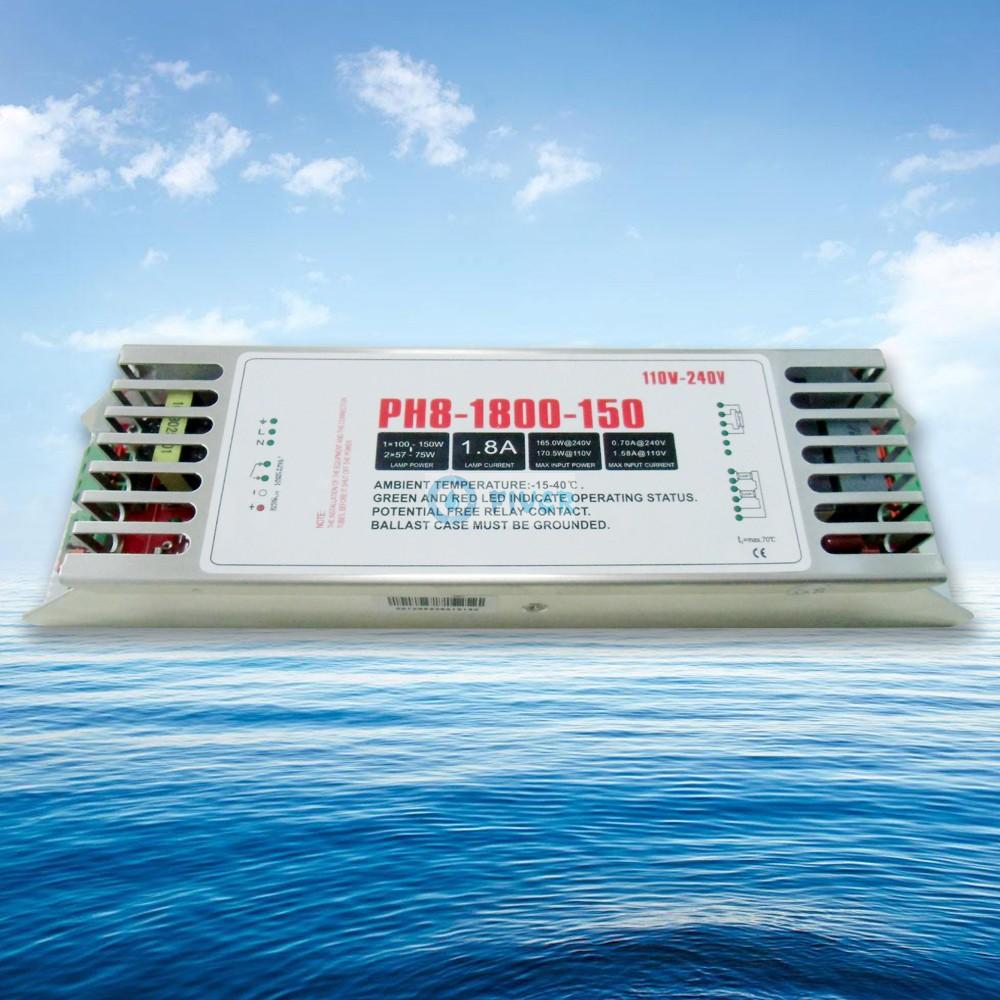

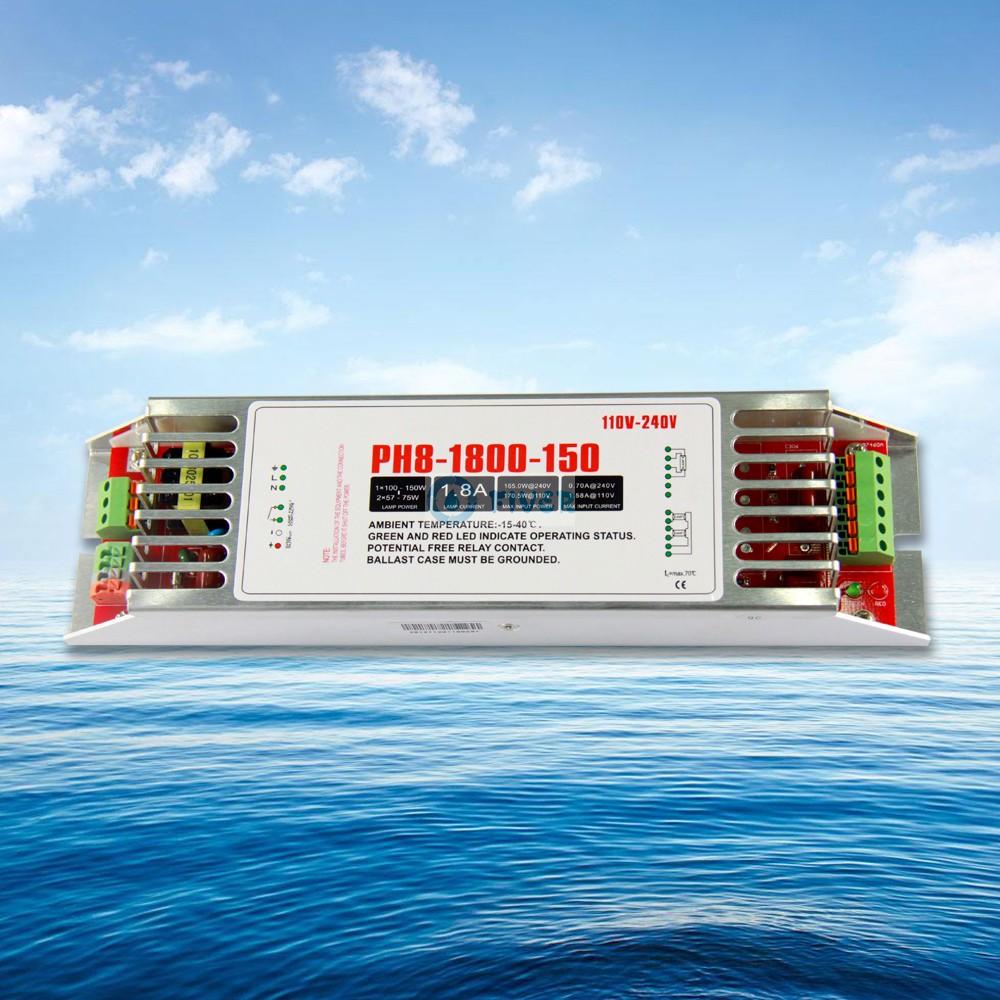

150W 1.8A Amalgam Germicidal Lamp Electronic Ballast

150W 1.8A Amalgam Germicidal Lamp Electronic Ballast
Features:
Preheat Start
Constant power design
Can work at both 110V and 220Vt
CE UL List Products
0-5V output and dry contact Function
ON/OFF time up to 50,000 times

Load Lamp:
GPHA843T6,GPHA1000T6
GPHA357T6,GPHA357VHT6

Product Details

Product Tags

150W 1.8A Amalgam Germicidal Lamp Electronic Ballast

Technical Parameter:

Input Voltage

99-264V

Max. Input   Power

164W

Max. Input   Current

0.72A@230V 1.44@110V

Power per Lamp

150W UV Lamp

Lamp Current

1.7-1.9A

Operating   Frequency

40-70KHz

Efficiency

 ≥85%

Start Way

Preheat Start

Power Factor

≥0.98

Total Harmonic   Distortion

＜15%

Crest Factor

＜1.7

Ambient   Temperature

－15-40℃

Maximum Case   Temperature

70℃

The   Authentication Meet

CE UL

1: Above is   standard features. 2: OEM service is available.

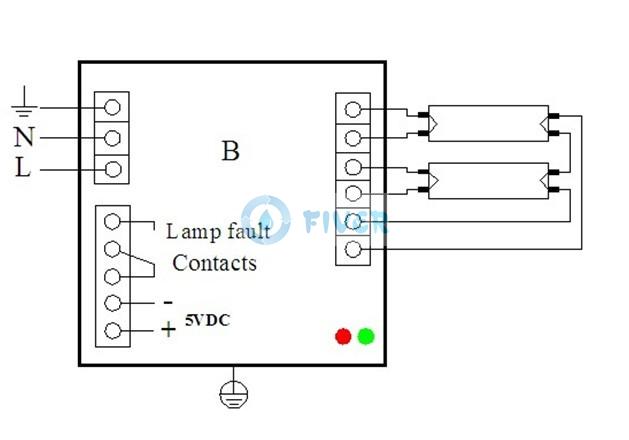

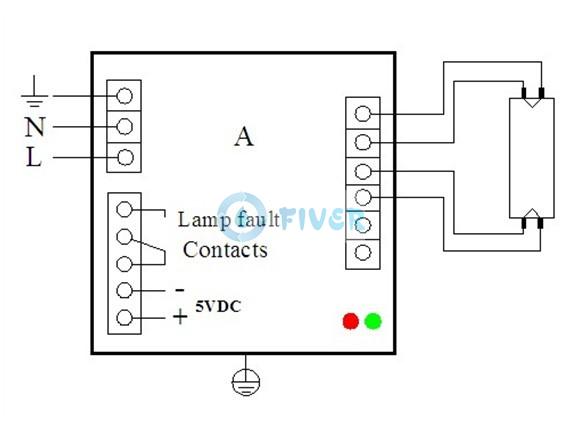

Wiring Diagram:


















Dimension:


PH8-800-155尺寸图.jpgSize: 250x65x40mm

Advangtage of UV Lamp Ballast:

  • 30% Less Energy Use Than Traditional Magnetic Ballasts

  • Constant UV Output Eliminates Buck/Boost Transformer

  • Draws 25% Less Current Than Magnetic Ballasts

  • Extended Lamp Life Reduces Maintenance Costs

  • Low Radiant Heat Reduces Air Conditioning Costs

  • Lighter Weight Ballasts Than Magnetic Ballasts

  • Dimming Fuction From 30% to 100%


Why choose us?



1.    More Than 30 Years Experience on UV Ballast Products.

2.    Exporting UV Light Ballast to Over 50 Countries

3.    More Than 5,000 Customers Trust Our UV Products

4.    Long Time Warranty of UV Ballasts from 2-8 Years

5.    24/7 Working Operation with Excellent After-sales Service

6.    Low Repair Rate as Low as to 0.04%(30 Years Average )

7.    OEM&ODM Service for UV Light Ballast with Low MOQ

8.    CE UL ROHS Approval to Insure High Quality UV Ballast
