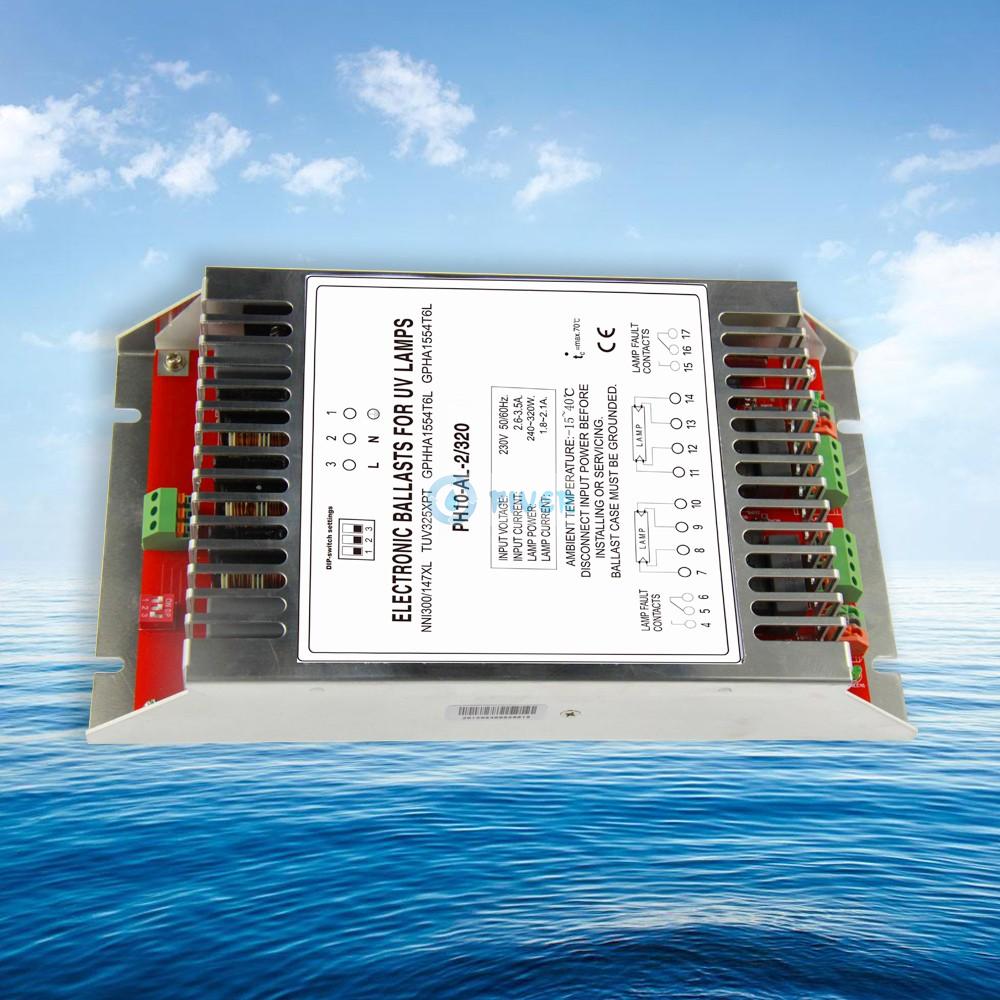

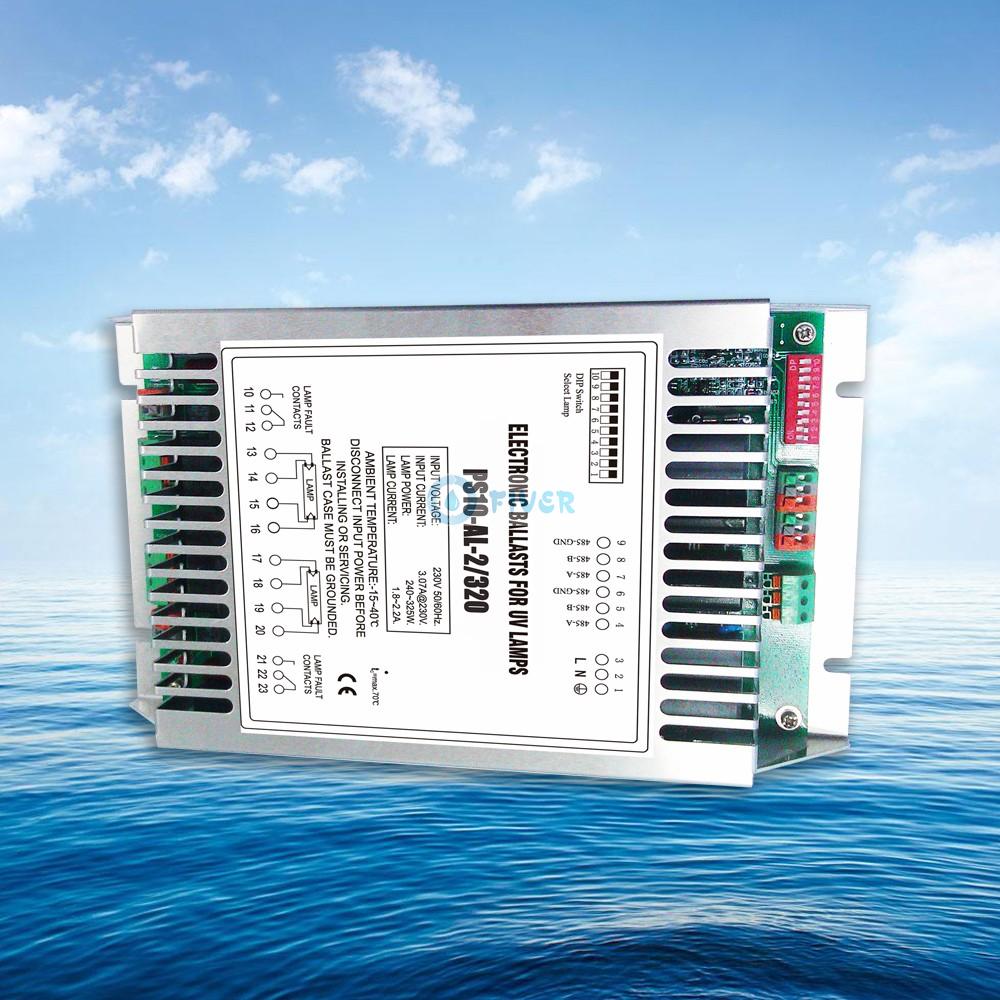

2x320W UV Lamp Transformer for Amalagm Lamp
2x320W UV Lamp Transformer for Amalagm Lamp
Technical Parameter:
Input Voltage | 198-264V |
Max. Input Power | 692W |
Max. Input Current | 3.07A@230V |
Power per Lamp | 2/320W UV Lamp |
Lamp Current | 1.8-2.1A |
Operating Frequency | 40-70KHz |
Efficiency | ≥92% |
Start Way | Preheat Start |
Power Factor | ≥0.98 |
Total Harmonic Distortion | ＜15% |
Crest Factor | ＜1.7 |
Ambient Temperature | －15-40℃ |
Maximum Case Temperature | 70℃ |
The Authentication Meet | CE UL |
1: Above is standard features. 2: OEM service is available. | |

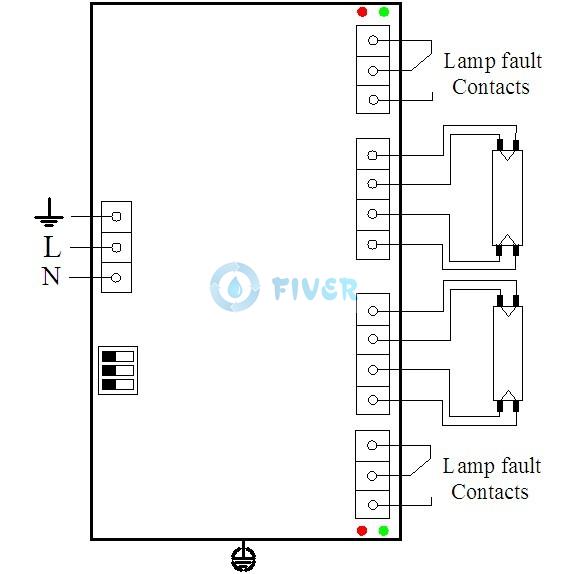

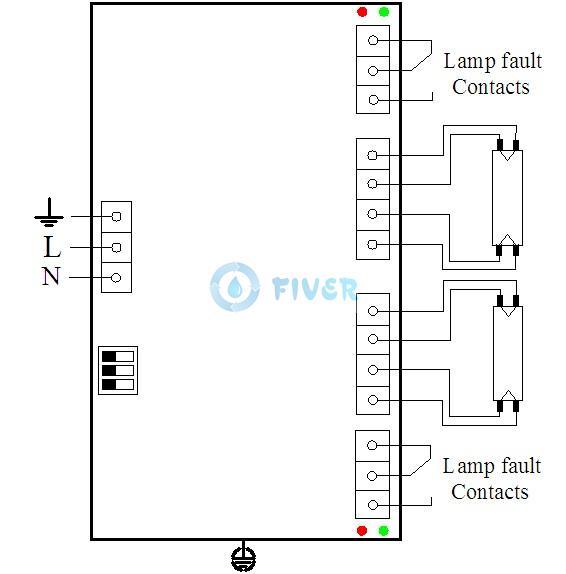

Wiring Diagram:

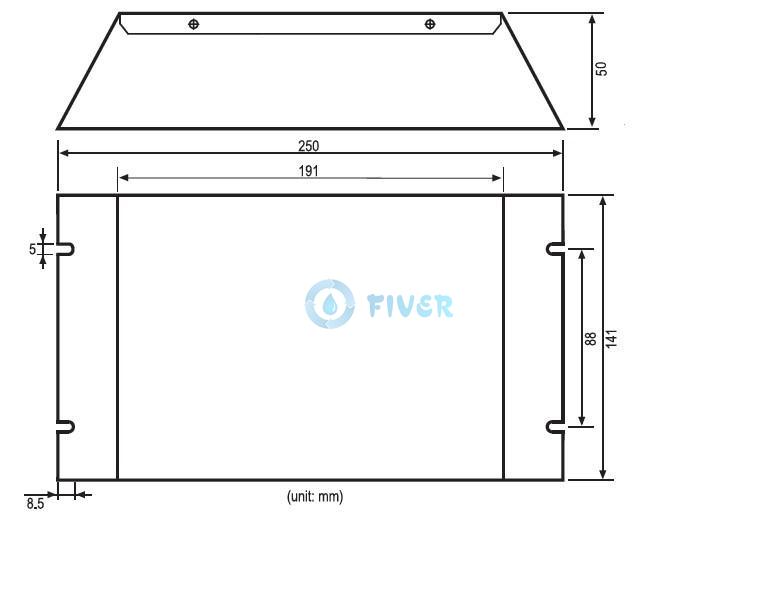

Dimension:
Size: 250x141x50mm
Advangtage of UV Lamp Transformer:
30% Less Energy Use Than Traditional Magnetic Ballasts
Constant UV Output Eliminates Buck/Boost Transformer
Draws 25% Less Current Than Magnetic Ballasts
Extended Lamp Life Reduces Maintenance Costs
Low Radiant Heat Reduces Air Conditioning Costs
Lighter Weight Ballasts Than Magnetic Ballasts
Dimming Fuction From 30% to 100%
