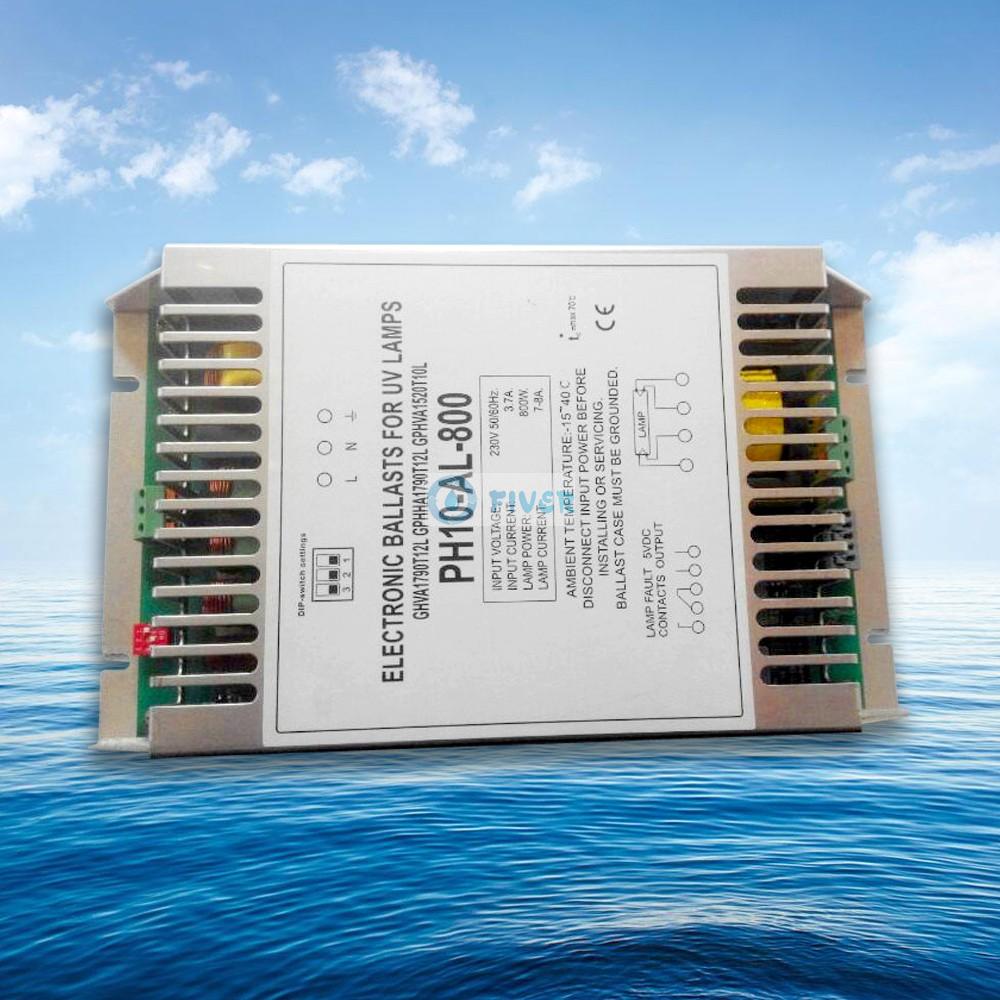

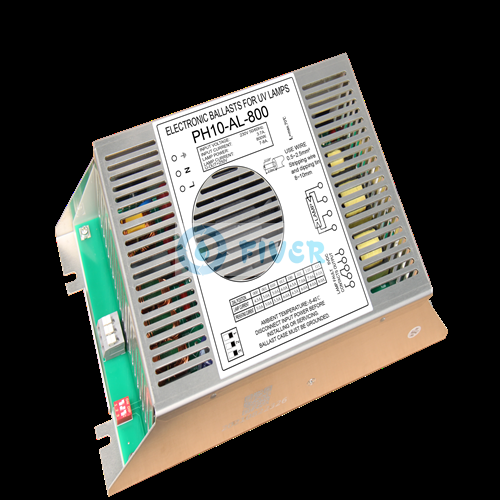

800W UV Lamp Transformer for Amalagm Lamp

800W UV Lamp Transformer for Amalagm Lamp
Features:
Preheat Start
Constant power design
CE UL List Products
0-5V output and dry contact Function
ON/OFF time up to 50,000 times

Load Lamp:
GPHMVA843T10,GPHMVA1000T10,GPHSVA843T10
GPHMVA1200T10,TUV800W XHO SE,GPHHA1554T10
GPHSVA1000T10,GPHSVA1200T10,GPHSVA1554T10

Product Details

Product Tags

800W UV Lamp Transformer for Amalagm Lamp

Technical Parameter:

Input Voltage

198-264V

Max. Input   Power

834W

Max. Input   Current

3.7A@230V

Power per Lamp

800W UV Lamp

Lamp Current

7.0-9.0A

Operating   Frequency

40-70KHz

Efficiency

 ≥92%

Start Way

Preheat Start

Power Factor

≥0.98

Total Harmonic   Distortion

＜15%

Crest Factor

＜1.7

Ambient   Temperature

－15-40℃

Maximum Case   Temperature

70℃

The   Authentication Meet

CE UL

1: Above is   standard features. 2: OEM service is available.

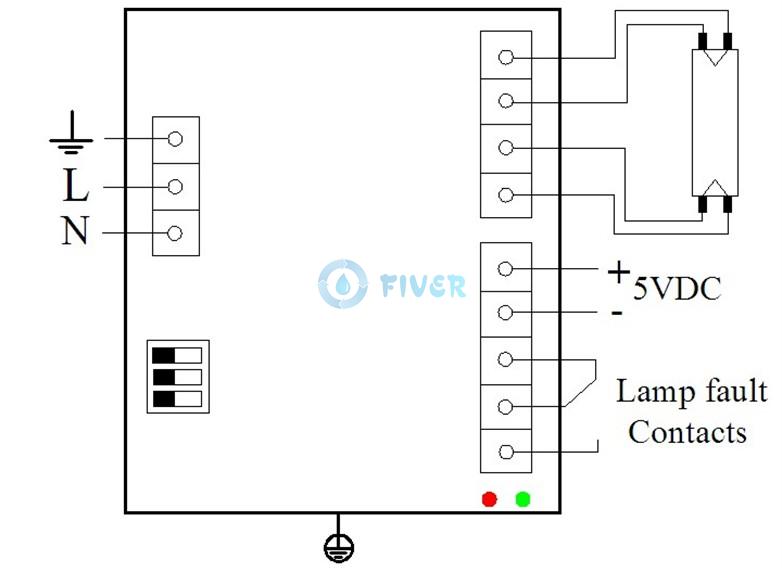

Wiring Diagram:

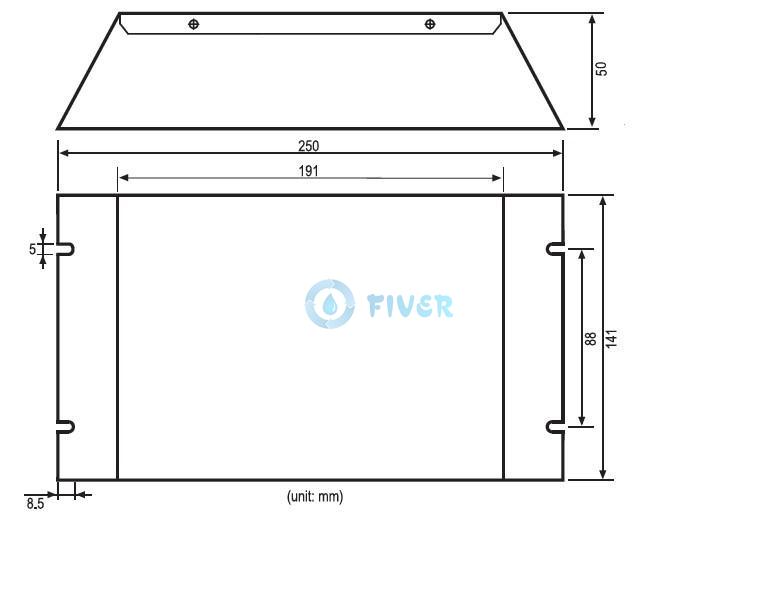

PH9-AL-400接线图.jpgDimension:


PH10尺寸图.jpgSize: 250x141x50mm

Advangtage of UV Lamp Transformer:

  • 30% Less Energy Use Than Traditional Magnetic Ballasts

  • Constant UV Output Eliminates Buck/Boost Transformer

  • Draws 25% Less Current Than Magnetic Ballasts

  • Extended Lamp Life Reduces Maintenance Costs

  • Low Radiant Heat Reduces Air Conditioning Costs

  • Lighter Weight Ballasts Than Magnetic Ballasts

  • Dimming Fuction From 30% to 100%


Why choose us?



1.    More Than 30 Years Experience on UV Ballast Products.

2.    Exporting UV Light Ballast to Over 50 Countries

3.    More Than 5,000 Customers Trust Our UV Products

4.    Long Time Warranty of UV Ballasts from 2-8 Years

5.    24/7 Working Operation with Excellent After-sales Service

6.    Low Repair Rate as Low as to 0.04%(30 Years Average )

7.    OEM&ODM Service for UV Light Ballast with Low MOQ

8.    CE UL ROHS Approval to Insure High Quality UV Ballast
