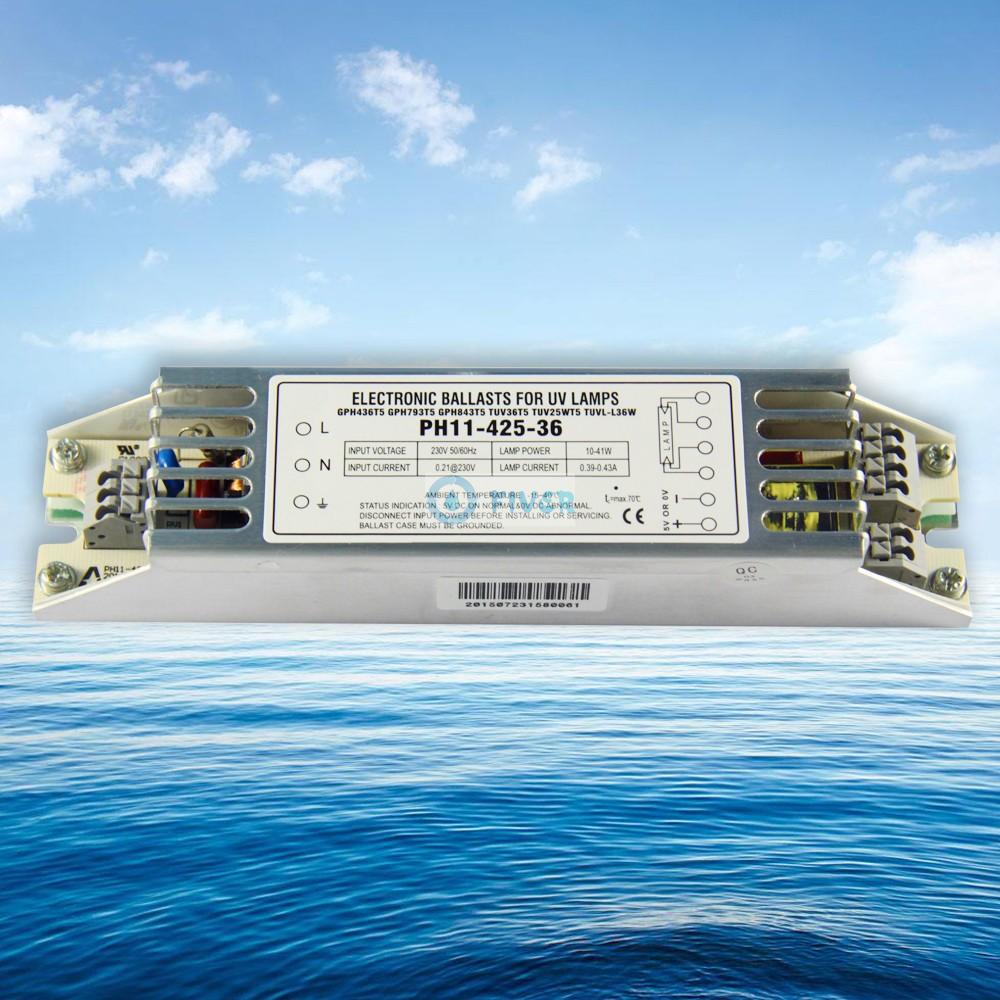

36W Best UV Ballasts for Air Purifier

Features:
Pre-heat Start
Constant power design
LED indicator(green and red light)
Under-voltage protection function
CE UL List Products
Special design for Air purifier
ON/OFF time up to 50,000 times

Load Lamp:
GPH843T5,GPH793T5,GPH550T5
GPH436T5,G36T5,TUV36T5
TUV PL-L36W,TUV36W

Product Details

Product Tags

36W Best UV Ballasts for Air Purifier

Technical Parameter:


Input Voltage

198-264V

Max. Input   Power

45W

Max. Input   Current

0.21A@230V

Power per Lamp

10-36W

Lamp Current

0.35-0.42A

Operating   Frequency

40-70KHz

Efficiency

 ≥85%

Start Way

Preheat Start

Power Factor

≥0.92

Total Harmonic   Distortion

15%

Crest Factor

1.7

Ambient   Temperature

15-40

Maximum Case   Temperature

70

The   Authentication Meet

CE UL

1: Above is   standard features. 2: OEM service is available.

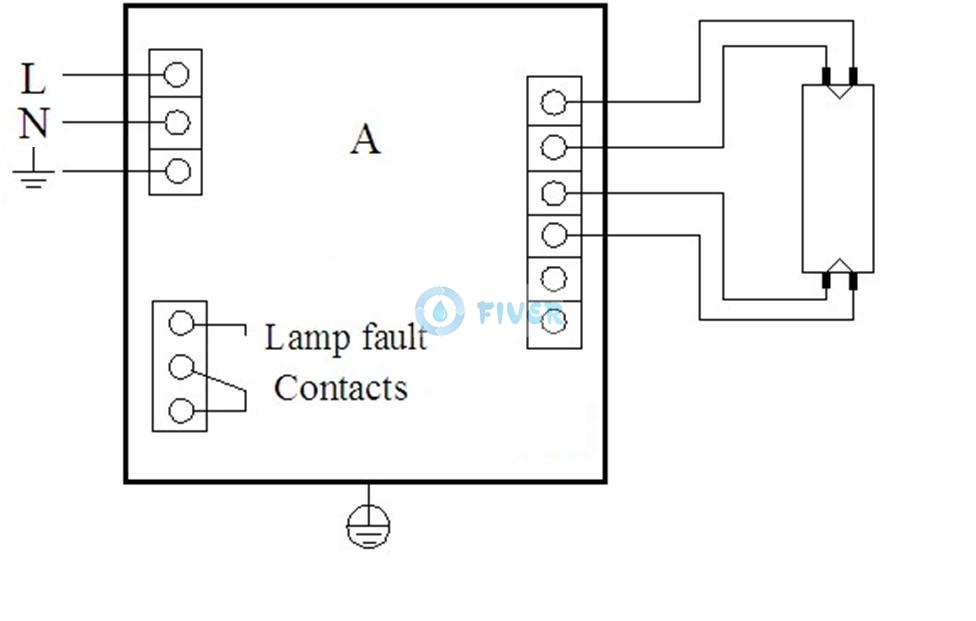

Wiring Diagram:


PH11-800-55接线图A.jpgDimension:



Size: 165x38x30mm

Advangtage of UV Lamp Ballast:

  • 30% Less Energy Use Than Traditional Magnetic Ballasts

  • Constant UV Output Eliminates Buck/Boost Transformer

  • Draws 25% Less Current Than Magnetic Ballasts

  • Extended Lamp Life Reduces Maintenance Costs

  • Low Radiant Heat Reduces Air Conditioning Costs

  • Lighter Weight Ballasts Than Magnetic Ballasts

  • Dimming Fuction From 30% to 100%
