5.6KW High Power Green Oil UV Curing Lamp

What can UV curing Lamps do?

UV curing Lamps offer many benefits:

1.Inks, coatings and adhesives have significantly improved physical
   properties
2.Faster production speed and capacity
3.Reduce WIP
4.Significantly reduced setup/cleanup labor
5.Environmental protection - energy saving, no emission control, reduced footprint
6.Increase production and reduce waste

INQUIRY

Product Details

Product Tags

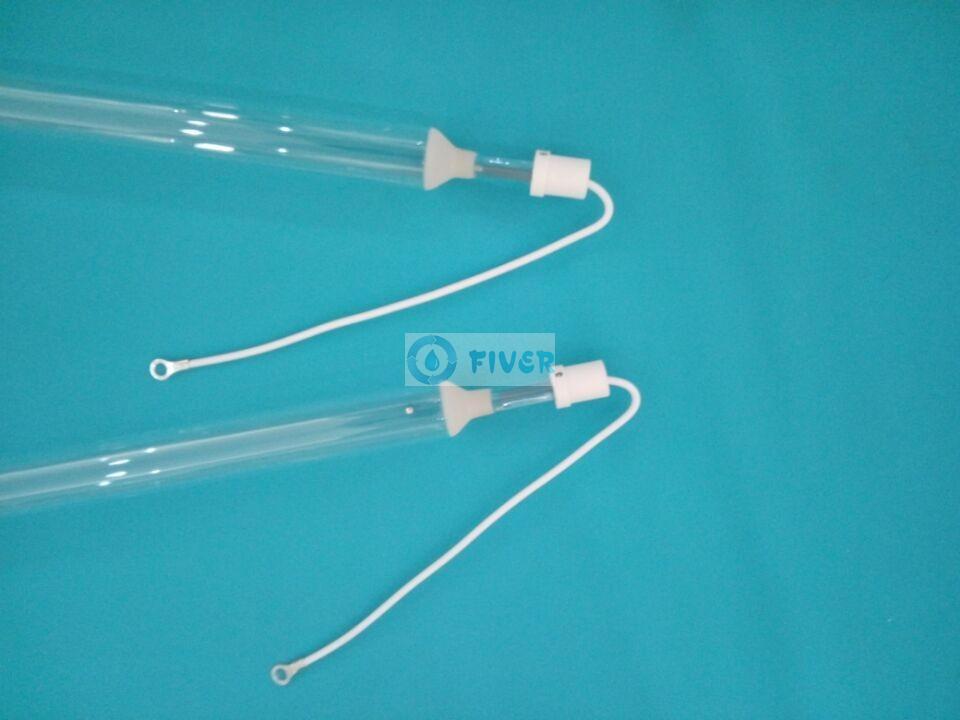

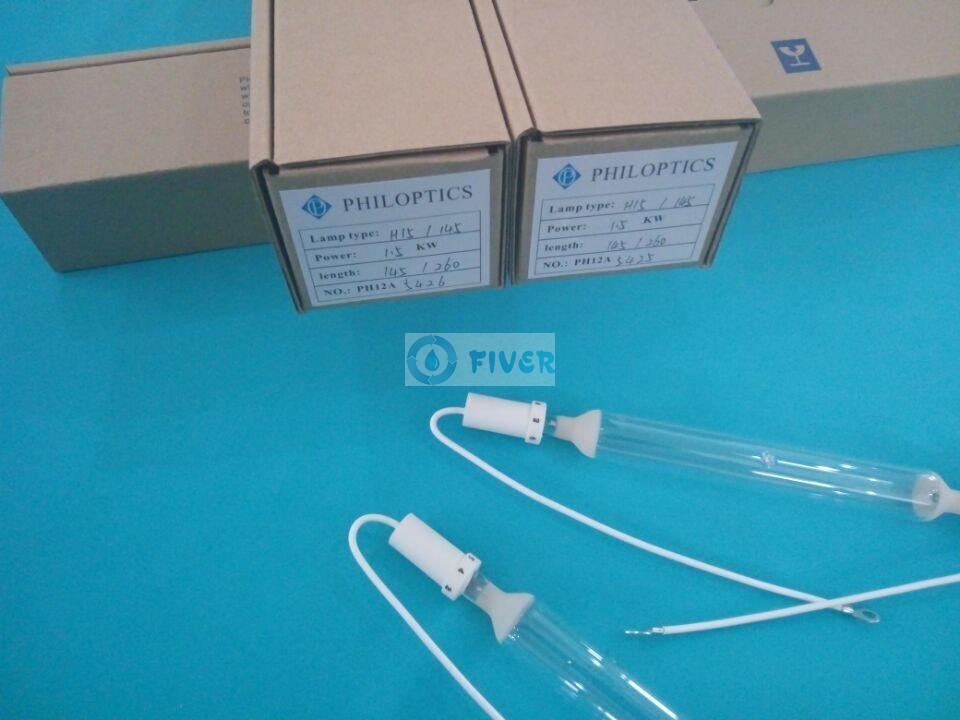

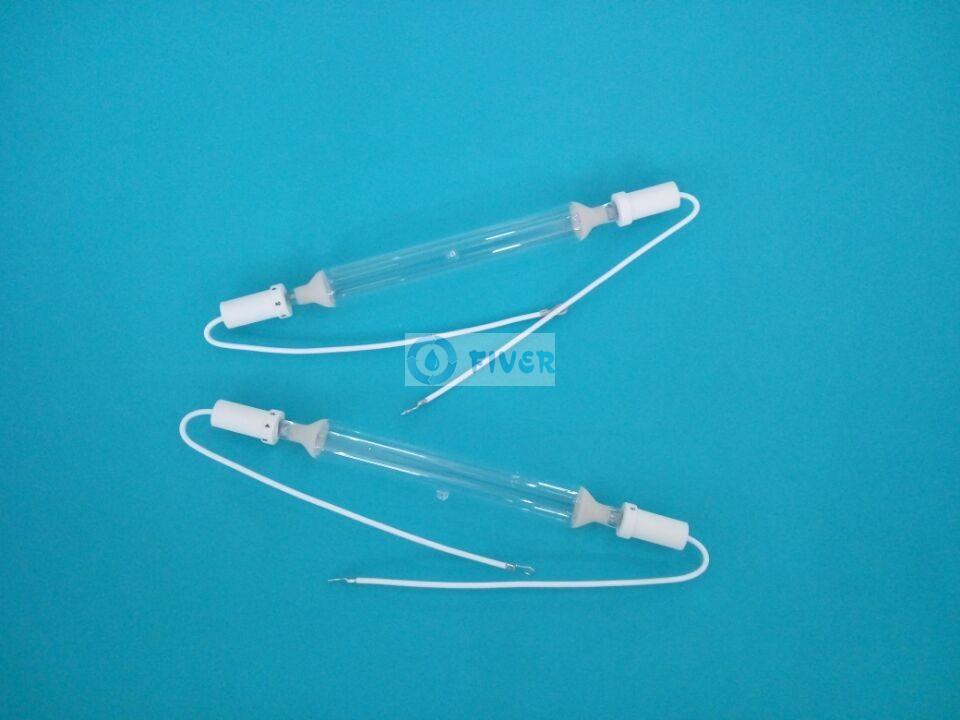

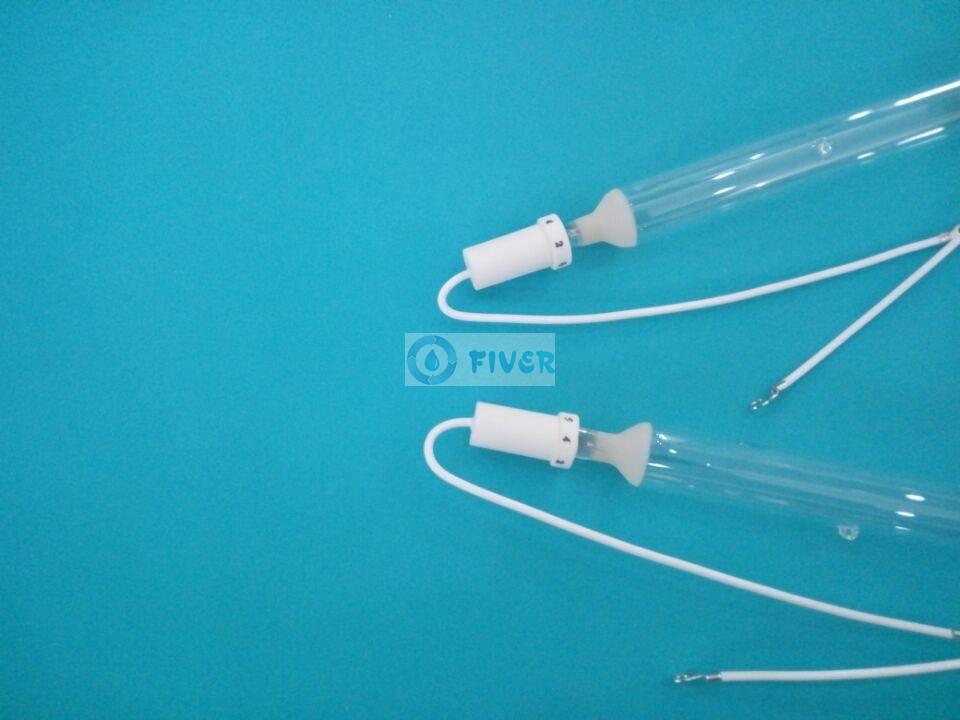

5.6KW High Power Green Oil UV Curing Lamp

Technical Parameter:

Working Voltage	380V
Lamp Power	5.6KW
Lamp Current	6.5A
Total Length	550mm
ARC Length	450mm
Warranty Time	1000 Hours
Connection	Optional
1: Above is standard features. 2: OEM service is available.

What is Medium-pressure UV Lamps？

Medium-pressure lamps have a polychromatic output spectrum and operate at roughly 800°C - 900°C. With an average of 10x the power density per unit arc length, they have significantly higher power compared to amalgam low-pressure lamps.

UV medium-pressure lamps feature a broad, pronounced line spectrum in the ultraviolet and visible range (200 nm to 600 nm) and a high power density of about 100 W/cm².

They are suitable for UV disinfection, UV oxidation, UV curing and photochemical processes.

Various additives can be used to adjust our UV medium-pressure lamps to your individual requirements.

Application:

Mainly used in graphic printing industry, UV curing industry, spraying UV curing industry, wood surface treatment and other industries.
