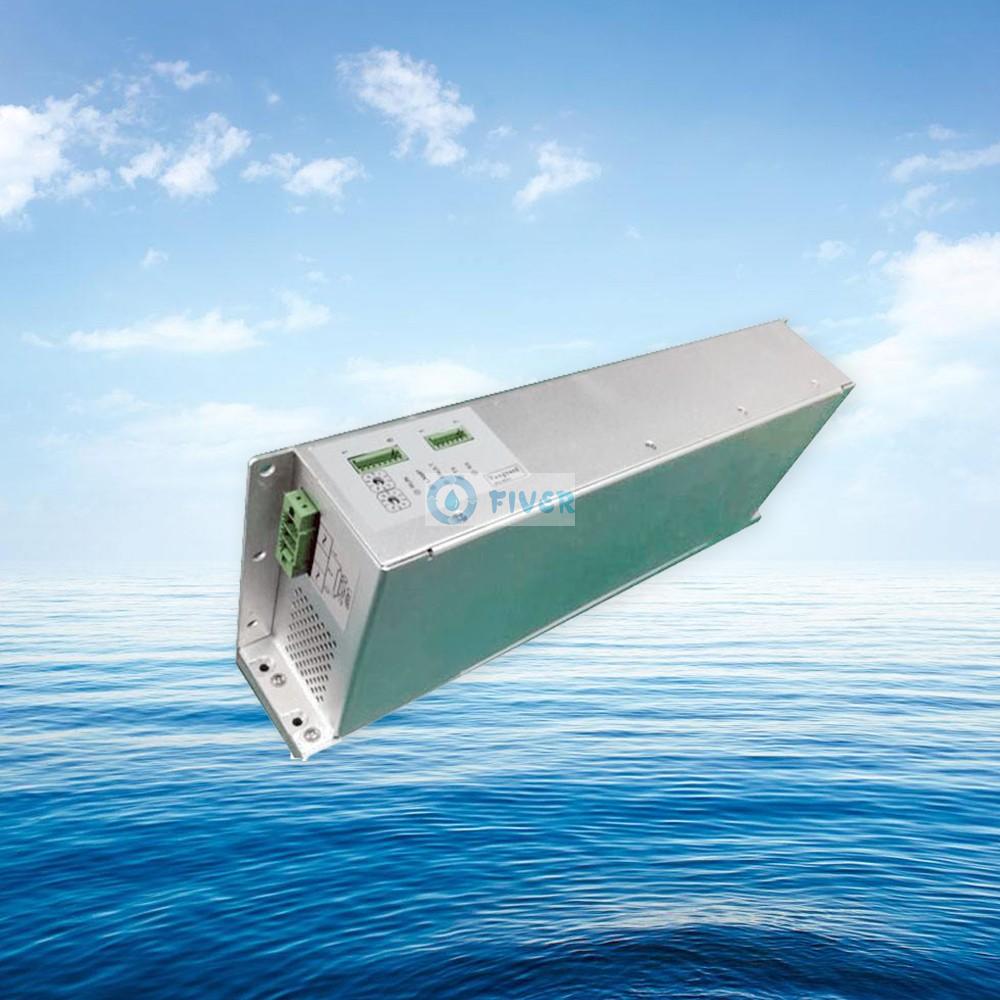

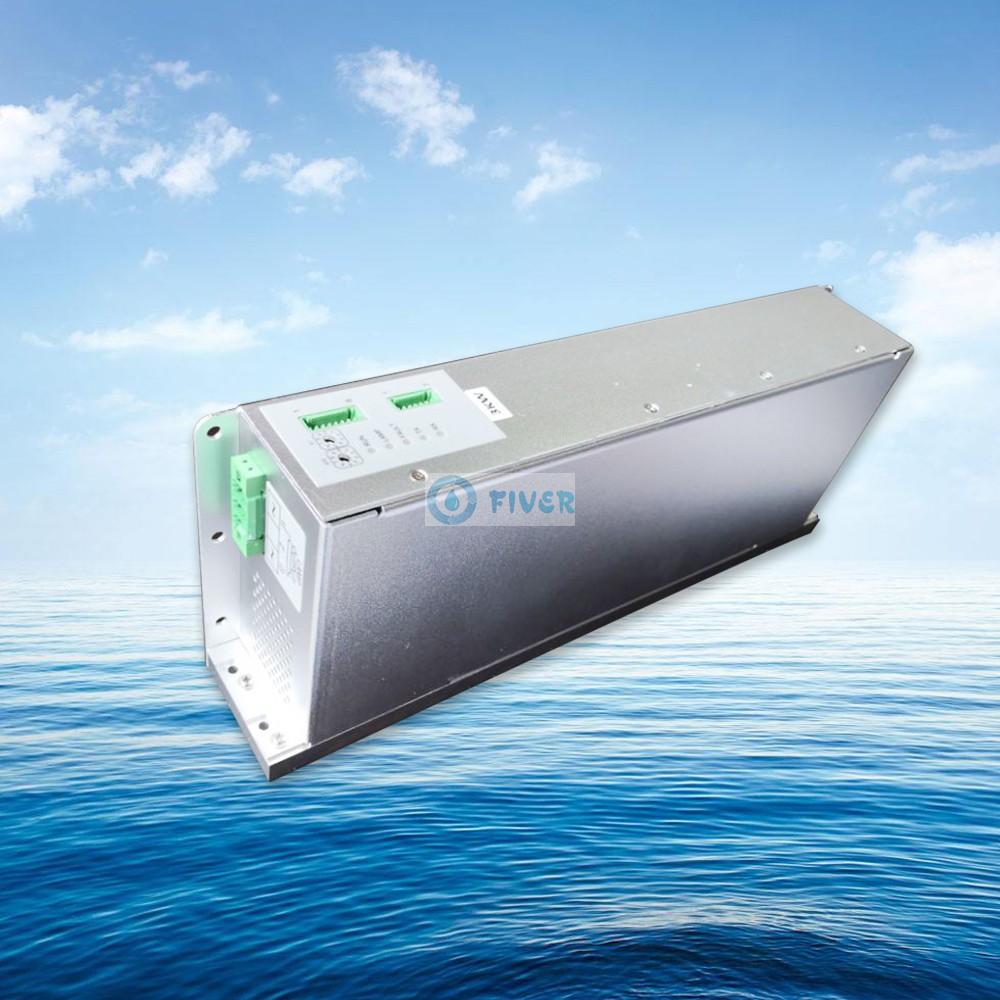

3000W UV Ballast for Medium Pressure Lamp

Features:
1.40% energy saving than magnetic ballast
2.Power factor can be up to 99%
3.Constant power output, can extent lamp life
4.Isolated transform output, more safe and reliable
5.Easy to install and easy to use
6.Can work at 220V,so do not need 380V Voltage
7.Can choose PWM,0-10V,modbus communication way
8.Special designed for UV water treatment machine.

Load Lamp:

2100W Medium Pressure UV Lamp
2850W Medium Pressure UV Lamp
3000W Medium Pressure UV Lamp

Product Details

Product Tags

3000W UV Ballast for Medium Pressure Lamp

This model can replace Trojan Medium pressure UV ballast

Special designed for UV water difinfection,so quality is excellet

Technical Parameter:



Input Voltage

198-264V

Max. Input   Power

3150W

Max. Input   Current

13.9A@230V

Power per Lamp

Medium Pressure UV Lamp

Lamp Current

6.5-13.5A

Operating   Frequency

40-70KHz

Efficiency

 ≥92%

Start Way

Instant Start

Power Factor

≥0.99

Total Harmonic   Distortion

15%

Crest Factor

1.7

Ambient   Temperature

15-40

Maximum Case   Temperature

70

The   Authentication Meet

CE UL

1: Above is   standard features. 2: OEM service is available.

Which medium-pressure UV lamps are compatible with FIVER UV Ballast?

FIVER’s medium pressure uv ballasts are designed to work with all major manufacturers of medium pressure UV lamps, including Heraeus, Hanovia, Alpha cure, Lightsource, Lightech,PhilipsLSI, Atlantic Ultraviolet, and Signify / dr fischer. (To work effectively, the lamp power and current must match our medium pressure ballast.)

Application areas:

Disinfection of water

Photochemistry

Decomposition of pollutions, activated wet oxidation (AOP)

Drying and curing of coatings

Drying and curing with UV technology
